New Holland TS6020
The New Holland TS6020 is a row crop tractor made by CNH America LLC from 2010 to 2012. It's a 2-wheel drive tractor with a 4-cylinder diesel engine made by FPT. The engine is turbocharged and intercooled, which helps it make 96.32 horsepower. This power output is below average compared to other tractors. The TS6020 has a constant mesh transmission with 8 forward gears and 2 reverse gears. It uses hydrostatic power steering, which makes it easy to control. The tractor has an open center hydraulic system and can come with either a ROPS or a cab. It's 155.8 inches long and 111.9 inches tall, with a weight of 7,740 pounds. This weight is on the lighter side for tractors. The tractor has big rear tires and smaller front tires, which is common for 2-wheel drive tractors. It also has an electric starter for easy engine starting.
ManufacturerNew HollandPower96.32 hp(71.8 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionconstant mesh
Key specifications
- Category
- Row Crop
- Engine power
- 96hp
- Operating weight
- 7,740 lb
- Transmission
- constant mesh
Category comparison
TS6020 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
96.32 hp · 22nd
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The TS6020 ranks at the 22nd percentile for engine power among recorded row crop tractors.
Overview
About the New Holland TS6020
The New Holland TS6020 is a row crop tractor made by CNH America LLC from 2010 to 2012. It's a 2-wheel drive tractor with a 4-cylinder diesel engine made by FPT. The engine is turbocharged and intercooled, which helps it make 96.32 horsepower. This power output is below average compared to other tractors. The TS6020 has a constant mesh transmission with 8 forward gears and 2 reverse gears. It uses hydrostatic power steering, which makes it easy to control. The tractor has an open center hydraulic system and can come with either a ROPS or a cab. It's 155.8 inches long and 111.9 inches tall, with a weight of 7,740 pounds. This weight is on the lighter side for tractors. The tractor has big rear tires and smaller front tires, which is common for 2-wheel drive tractors. It also has an electric starter for easy engine starting.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | TS6020 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 2010–2012 |
| Operating weight | 7,740lb(3,511 kg) |
Engine
| Make | FPT (Fiat Powertrain Technologies) |
|---|---|
| Model | NEF |
| Power | 96.32hp(71.83 kW) |
| Cylinders | 4 |
| Displacement | 274ci(4.49 L) |
| Bore | 4.09in(104 mm) |
| Stroke | 5.2in(132 mm) |
Transmission
| Type | constant mesh |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | hydrostatic power |
| Cab | ROPS/Cab available |
Hydraulics
| Type | open center |
|---|
Dimensions
| Length | 155.8in(3,957 mm) |
|---|---|
| Height | 111.9in(2,842 mm) |
| Operating weight | 7,740lb(3,511 kg) |
Closest alternatives
TS6020 compared with the nearest models by horsepower
The closest row crop models to the New Holland TS6020 by rated horsepower are the Ursus 1014 and the Fendt 411 Vario. The Ursus 1014 matches it on rated power and weighs 1,230 lb more, so it carries more weight per horsepower, which helps traction in draft work. It entered production in 1984, 26 years before the TS6020. The Fendt 411 Vario matches it on rated power and weighs 4,610 lb more, at 129 lb per horsepower against 80 lb. Of the 3 models, the TS6020 has the lowest weight per horsepower at 80 lb per hp.
| Spec | New Holland TS6020 | Ursus 1014 | Fendt 411 Vario |
|---|---|---|---|
| Engine power | 96.3 hp71.8 kW | 96 hp71.6 kW | 96 hp71.6 kW |
| Operating weight | 7,740 lb3,511 kg | 8,973 lb4,070 kg | 12,345 lb5,600 kg |
| Weight per hp | 80 lb/hp49 kg/kW | 93 lb/hp57 kg/kW | 129 lb/hp78 kg/kW |
| Displacement | 274 ci4.49 L | 278.4 ci4.56 L | 232 ci3.8 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | constant mesh | Two-speed power shift | Continuously variable transmission |
| Drive | 2WD | 4WD (MFWD) | 4WD |
| Years built | 2010-2012 | 1984-2009 | - |
Calculators
Calculators for the TS6020
PTO power
About 80 to 87 PTO hp
Estimated from the 96.32 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 96.32 hp tractor can run
Maximum size is about a 11.5 ft rotary cutter or a 10 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
93 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
96.32 hp is 71.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
TS6020 vs. Row Crop median
New Holland TS6020 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 96.3 hp | 138 hp | -30% | 22nd |
| Engine Displacement | 274 ci | 391 ci | -30% | 24th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 7,740 lb | 12,307 lb | -37% | 19th |
| Length | 156 in | 180 in | -13% | 21st |
| Height | 112 in | 114 in | -1% | 43rd |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 1,140–1,417 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

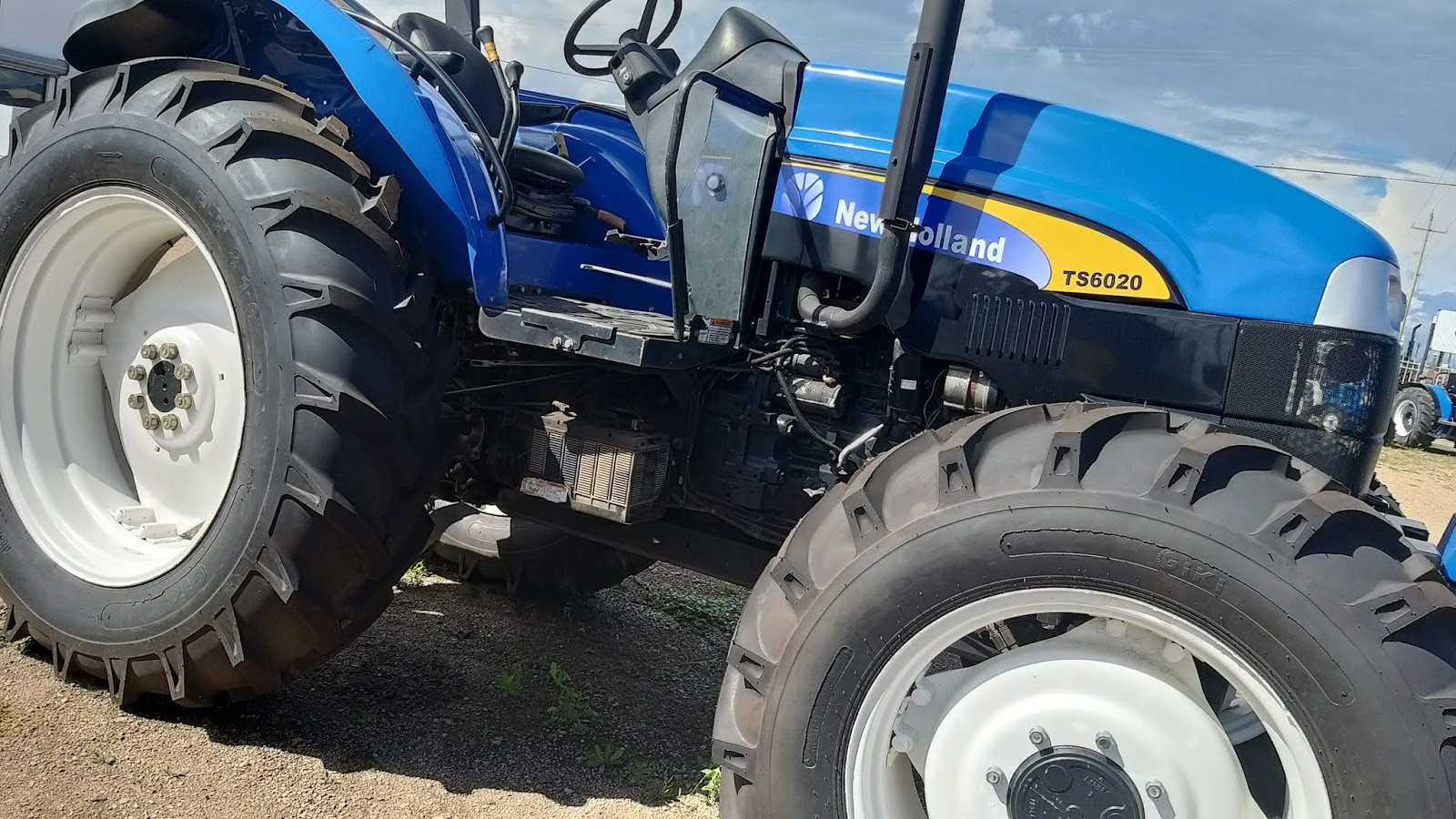

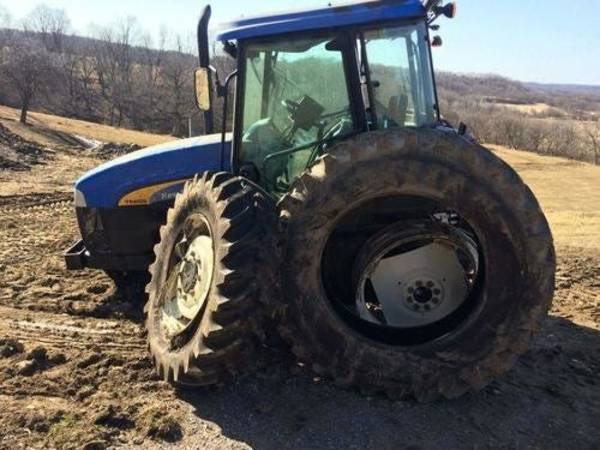

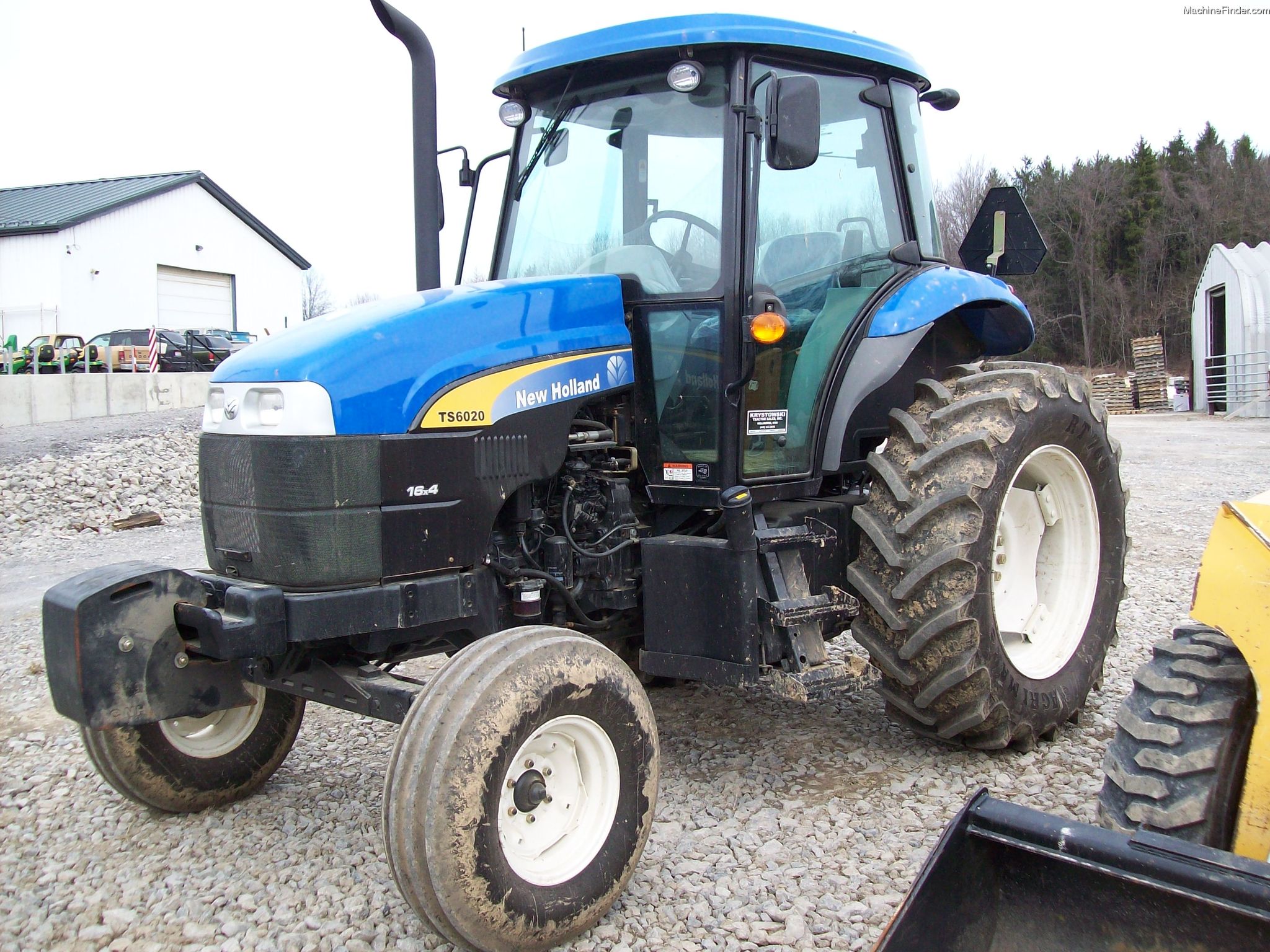

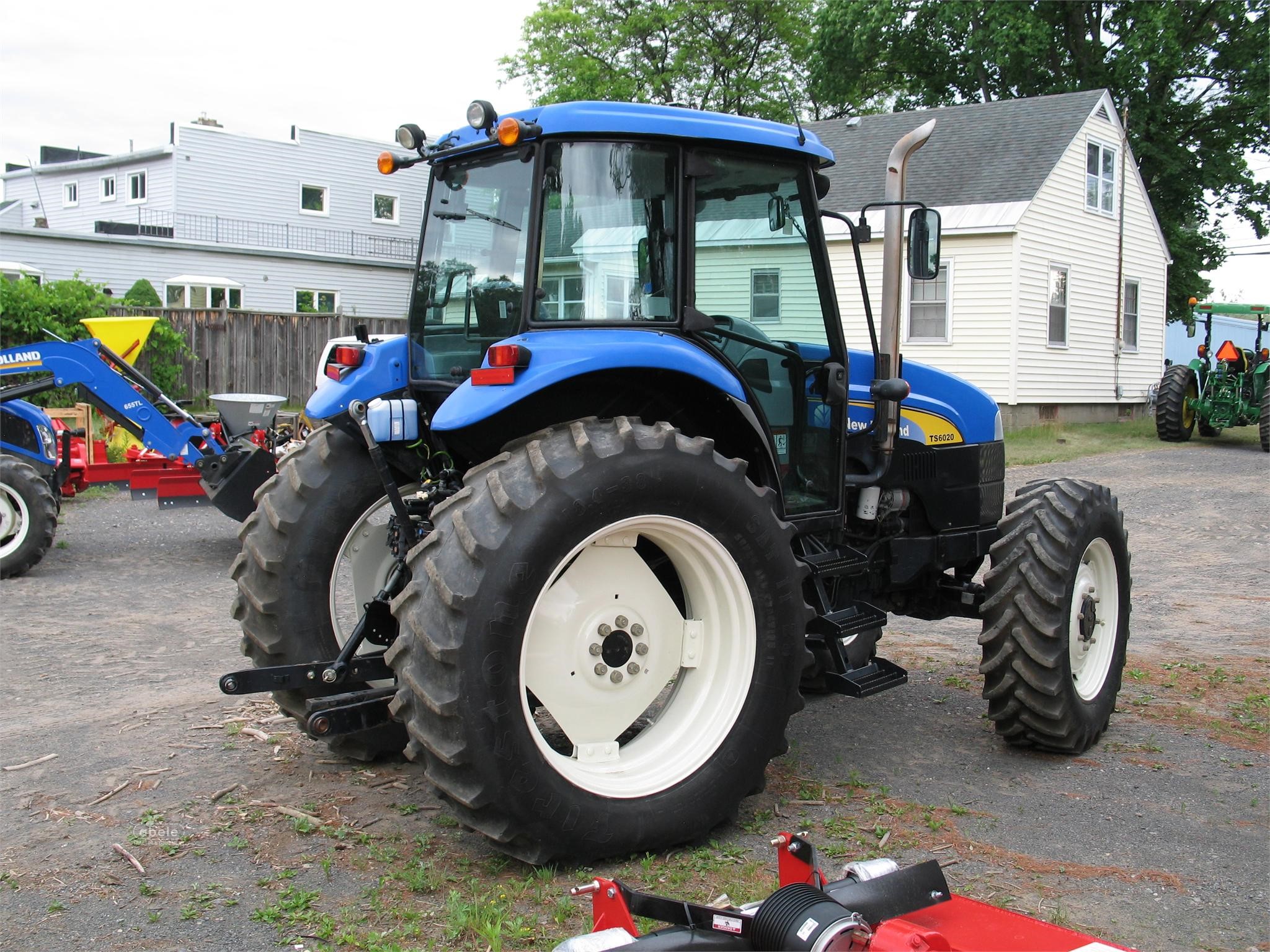

New Holland TS6020 photos
FAQ
Frequently asked questions
What years was the New Holland TS6020 manufactured?
Production of the New Holland TS6020 ran from 2010 through 2012.
What is the working weight of the New Holland TS6020?
The operating weight of the New Holland TS6020 is approximately 7,740 lb.
What type of transmission does the New Holland TS6020 have?
The New Holland TS6020 uses a constant mesh transmission offering 8 forward gears.
What type of hydraulic system does the New Holland TS6020 use?
Hydraulics on the New Holland TS6020 are open center.
How powerful is the New Holland TS6020?
The New Holland TS6020 has an engine power output of 96.32 hp. It is powered by a 4-cylinder engine displacing 274 ci.
What routine service does the New Holland TS6020 need?
Regular maintenance for the New Holland TS6020 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
