Brand siblingFour-Wheel DrivePerformance profile
New Holland TV145
The New Holland TV145 is a powerful 4x4 tractor built for tough farm work. It has a strong diesel engine with 6 cylinders that can produce 145 horsepower. This tractor is big and heavy, weighing 14,715 pounds, which helps it handle hard jobs. The TV145 has some special features that make it easy to use. It has a smooth hydrostatic transmission that lets you change speeds without shifting gears. The steering is also hydrostatic, which makes it easy to turn. At the back, there's a strong hitch that can lift up to 8,700 pounds. This tractor also has a good hydraulic system that can pump 30 gallons of fluid per minute, which is helpful for running farm tools.
ManufacturerNew HollandPower145 hpEngine6-cylTransHydrostatic
Quick specs
- Category
- Four-Wheel Drive
- Engine Power Output
- 145hp
- Operating Weight
- 14,715 lb
- Transmission
- Hydrostatic
At a glance
How the TV145 compares
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
Across all Four-Wheel Drive tractors
145 hp · 2nd
This model
84
Median 375 hp
549
This modelFour-Wheel Drive tractorsMediann = 162
The TV145 ranks at the 2nd percentile for engine power among recorded four-wheel drive tractors.
Overview
About the New Holland TV145
The New Holland TV145 is a powerful 4x4 tractor built for tough farm work. It has a strong diesel engine with 6 cylinders that can produce 145 horsepower. This tractor is big and heavy, weighing 14,715 pounds, which helps it handle hard jobs. The TV145 has some special features that make it easy to use. It has a smooth hydrostatic transmission that lets you change speeds without shifting gears. The steering is also hydrostatic, which makes it easy to turn. At the back, there's a strong hitch that can lift up to 8,700 pounds. This tractor also has a good hydraulic system that can pump 30 gallons of fluid per minute, which is helpful for running farm tools.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TV145 |
| Category | Four-Wheel Drive tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 14,715lb |
Engine
| Make | New Holland |
|---|---|
| Power | 145hp |
| Cylinders | 6 |
| Displacement | 456ci |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center load sensing |
|---|
Dimensions
| Length | 183.8in |
|---|---|
| Width | 77.4in |
| Height | 122in |
| Operating weight | 14,715lb |
Capacities
| Cooling system | 7.25gal |
|---|
Head to head
TV145 vs. Four-Wheel Drive median
How the New Holland TV145 compares to other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 145 hp | 375 hp | -61% | 2nd |
| Engine Displacement | 456 ci | 826 ci | -45% | 5th |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 14,715 lb | 37,428 lb | -61% | 3rd |
| Length | 184 in | 275 in | -33% | 2nd |
| Width | 77.4 in | 116 in | -33% | 16th |
| Height | 122 in | 143 in | -14% | 10th |
Medians and percentiles are computed from the four-wheel drive tractors in our database with a recorded value for each spec (sample sizes 71–162 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland TJ280 | 280 hp | 39,600 lb | 2006–2007 | Compare → |
| New Holland TJ330 | 285.76 hp | 32,295 lb | 2006–2007 | Compare → |
| New Holland TJ380 | 347 hp | 41,780 lb | 2006–2007 | Compare → |
| New Holland TJ375 | 375 hp | 37,610 lb | 2002–2005 | Compare → |
| New Holland 9880 | 400 hp | 25,698 lb | 1994–1995 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 1455 XL | 145 hp | 11,499 lb | — | Compare → |
| AGCO RT135 | 143.94 hp | 15,525 lb | — | Compare → |
| Allis Chalmers 8030 | 148 hp | 14,200 lb | 1982–1985 | Compare → |
| AGCO RT120 | 150 hp | 15,055 lb | — | Compare → |
| Belarus MTZ-142 | 150 hp | — | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

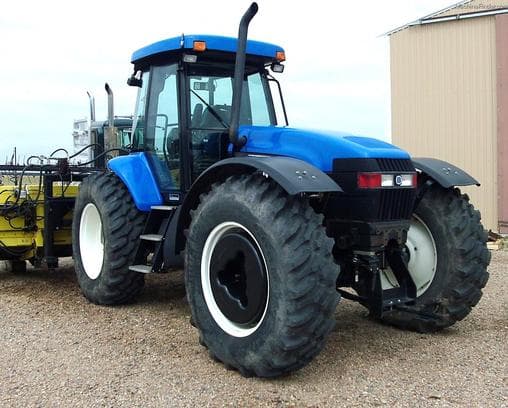

New Holland TV145 photos
FAQ
Common questions
How powerful is the New Holland TV145?
The New Holland TV145 has an engine power output of 145 hp. It is powered by a 6-cylinder engine displacing 456 ci.
What hydraulics does the New Holland TV145 have?
The New Holland TV145 uses a Closed center load sensing hydraulic system.
What three-point hitch category does the New Holland TV145 use?
The New Holland TV145 has a Category Category 2 three-point hitch rated to lift 8,700 lb.
What is the working weight of the New Holland TV145?
The operating weight of the New Holland TV145 is approximately 14,715 lb.
What type of transmission does the New Holland TV145 have?
The New Holland TV145 uses a Hydrostatic transmission.
What routine service does the New Holland TV145 need?
Regular maintenance for the New Holland TV145 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
