Row Crop tractorsSpec sheet
SAME Laser 150
The SAME Laser 150 is a powerful row crop tractor built for tough farm work. It has a strong 4-wheel drive system and power steering, making it easy to handle in the fields. The tractor's engine is made by SAME and has 6 cylinders. It's air-cooled and runs on diesel fuel. With 114 horsepower, this tractor has average power for its class. One of the Laser 150's best features is its transmission. It has 24 forward gears and 12 reverse gears, giving farmers lots of options for different tasks. The tractor is quite big, measuring 177.6 inches long and 87.6 inches wide. It weighs 12,125 pounds, which is about average for tractors like this. The Laser 150 has a Category III/II hitch, making it compatible with many farm tools. It also has the option for extra slow speeds with 16 forward and 12 reverse creeper gears, which can be useful for precise work.
ManufacturerSAMEPower114 hp(85.0 kW)Class100–150 HP tractors →Engine6-cylinderTransmissionTwo-speed power shift
Key specifications
- Category
- Row Crop
- Engine power
- 114hp
- Operating weight
- 12,125 lb
- Transmission
- Two-speed power shift
Category comparison
Laser 150 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
114 hp · 34th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Laser 150 ranks at the 34th percentile for engine power among recorded row crop tractors.
Overview
About the SAME Laser 150
The SAME Laser 150 is a powerful row crop tractor built for tough farm work. It has a strong 4-wheel drive system and power steering, making it easy to handle in the fields. The tractor's engine is made by SAME and has 6 cylinders. It's air-cooled and runs on diesel fuel. With 114 horsepower, this tractor has average power for its class. One of the Laser 150's best features is its transmission. It has 24 forward gears and 12 reverse gears, giving farmers lots of options for different tasks. The tractor is quite big, measuring 177.6 inches long and 87.6 inches wide. It weighs 12,125 pounds, which is about average for tractors like this. The Laser 150 has a Category III/II hitch, making it compatible with many farm tools. It also has the option for extra slow speeds with 16 forward and 12 reverse creeper gears, which can be useful for precise work.
Full specifications
Recorded specifications
General
| Manufacturer | SAME |
|---|---|
| Model | Laser 150 |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 12,125lb(5,500 kg) |
Engine
| Make | SAME |
|---|---|
| Model | 1056 PS |
| Power | 114hp(85.01 kW) |
| Cylinders | 6 |
| Displacement | 380.5ci(6.24 L) |
| Bore | 4.13in(104.9 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Two-speed power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 177.6in(4,511 mm) |
|---|---|
| Width | 87.6in(2,225 mm) |
| Operating weight | 12,125lb(5,500 kg) |
Closest alternatives
Laser 150 compared with the nearest models by horsepower
The closest row crop models to the SAME Laser 150 by rated horsepower are the Deutz-Fahr 6120.4 TTV and the John Deere 6610. The Deutz-Fahr 6120.4 TTV matches it on rated power. The John Deere 6610 matches it on rated power and weighs 1,730 lb less, carrying 91 lb per horsepower against 106 lb.
| Spec | SAME Laser 150 | Deutz-Fahr 6120.4 TTV | John Deere 6610 |
|---|---|---|---|
| Engine power | 114 hp85 kW | 114 hp85 kW | 114 hp85 kW |
| Operating weight | 12,125 lb5,500 kg | - | 10,400 lb4,717 kg |
| Weight per hp | 106 lb/hp65 kg/kW | - | 91 lb/hp55 kg/kW |
| Displacement | 380.5 ci6.24 L | 246.4 ci4.04 L | 414 ci6.78 L |
| Cylinders | 6 | 4 | 6 |
| Drive | 4WD | 4WD | 4WD |
Calculators
Calculators for the Laser 150
PTO power
About 95 to 103 PTO hp
Estimated from the 114 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 114 hp tractor can run
Maximum size is about a 13.5 ft rotary cutter or a 11.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
124 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
114 hp is 85.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the SAME Laser 150
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the SAME 1056 PSAmazon
Fits the SAME 1056 PS 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the SAME 1056 PSAmazon
Fits the SAME 1056 PS 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the SAME 1056 PSAmazon
Fits the SAME 1056 PS 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the SAME 1056 PSAmazon
Fits the SAME 1056 PS 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- SAME Laser 150 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- SAME Laser 150 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- SAME Laser 150 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Laser 150 vs. Row Crop median
SAME Laser 150 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 114 hp | 138 hp | -17% | 34th |
| Engine Displacement | 381 ci | 391 ci | -3% | 50th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 12,125 lb | 12,307 lb | -1% | 49th |
| Length | 178 in | 180 in | -1% | 47th |
| Width | 87.6 in | 91.2 in | -4% | 43rd |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other SAME models
Other manufacturers
Models with similar horsepower
Gallery

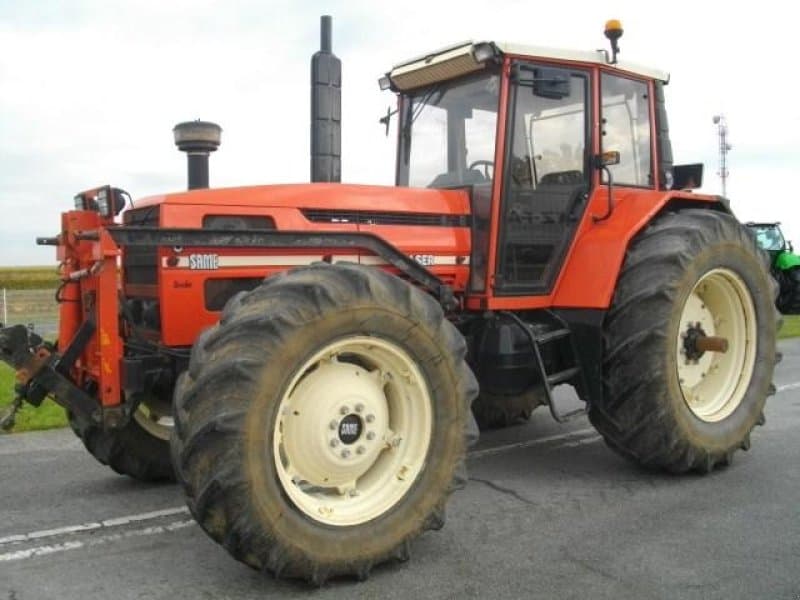

SAME Laser 150 photos
FAQ
Frequently asked questions
How much horsepower does the SAME Laser 150 have?
The SAME Laser 150 produces 114 hp from its 6-cylinder engine. Engine displacement is 380.5 ci.
How much does the SAME Laser 150 weigh?
The SAME Laser 150 weighs about 12,125 lb in operating condition.
What transmission is in the SAME Laser 150?
Transmission on the SAME Laser 150 is Two-speed power shift, with 24 forward speeds.
What hitch category is the SAME Laser 150?
The SAME Laser 150 uses a Category III/II hitch.
What maintenance does the SAME Laser 150 require?
The SAME Laser 150 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
