Same brandRow Crop tractorsSpec sheet
SAME Tiger 100
The SAME Tiger 100 is a row crop tractor built for farmers who need a reliable machine for their fields. This tractor has a 2-wheel drive system and power steering, making it easy to control. It comes with a synchromesh transmission that has 12 forward gears and 3 reverse gears, giving the driver 15 gears to choose from. Under the hood, the Tiger 100 has a SAME 1055L engine. This air-cooled diesel engine has 5 cylinders and uses direct injection. It can produce 102 horsepower at 2200 RPM, which is average power for tractors in its class. The engine size is 317 cubic inches, which is also about average. This tractor weighs 8312 pounds and has a Category II hitch, making it suitable for many farm tasks. It starts with an electric starter and has a mechanical dry disc clutch. The Tiger 100 measures 155.5 inches long, 107.1 inches wide, and 62.4 inches tall, fitting well in most farm settings.
ManufacturerSAMEPower102 hp(76.1 kW)Class100–150 HP tractors →Engine5-cylinderTransmissionSynchromesh
Key specifications
- Category
- Row Crop
- Engine power
- 102hp
- Operating weight
- 8,312 lb
- Transmission
- Synchromesh
Category comparison
Tiger 100 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
102 hp · 26th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Tiger 100 ranks at the 26th percentile for engine power among recorded row crop tractors.
Overview
About the SAME Tiger 100
The SAME Tiger 100 is a row crop tractor built for farmers who need a reliable machine for their fields. This tractor has a 2-wheel drive system and power steering, making it easy to control. It comes with a synchromesh transmission that has 12 forward gears and 3 reverse gears, giving the driver 15 gears to choose from. Under the hood, the Tiger 100 has a SAME 1055L engine. This air-cooled diesel engine has 5 cylinders and uses direct injection. It can produce 102 horsepower at 2200 RPM, which is average power for tractors in its class. The engine size is 317 cubic inches, which is also about average. This tractor weighs 8312 pounds and has a Category II hitch, making it suitable for many farm tasks. It starts with an electric starter and has a mechanical dry disc clutch. The Tiger 100 measures 155.5 inches long, 107.1 inches wide, and 62.4 inches tall, fitting well in most farm settings.
Full specifications
Recorded specifications
General
| Manufacturer | SAME |
|---|---|
| Model | Tiger 100 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 8,312lb(3,770 kg) |
Engine
| Make | SAME |
|---|---|
| Model | 1055L |
| Power | 102hp(76.06 kW) |
| Cylinders | 5 |
| Displacement | 317ci(5.2 L) |
| Bore | 4.13in(105 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Synchromesh |
|---|---|
| Forward gears | 12 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 155.5in(3,950 mm) |
|---|---|
| Width | 107.1in(2,720 mm) |
| Height | 62.4in(1,585 mm) |
| Operating weight | 8,312lb(3,770 kg) |
Closest alternatives
Tiger 100 compared with the nearest models by horsepower
The closest row crop models to the SAME Tiger 100 by rated horsepower are the Deutz-Fahr DX 90 and the John Deere 4420. The Deutz-Fahr DX 90 matches it on rated power and weighs 1,540 lb more, at 97 lb per horsepower against 81 lb. The John Deere 4420 matches it on rated power at almost the same operating weight.
| Spec | SAME Tiger 100 | Deutz-Fahr DX 90 | John Deere 4420 |
|---|---|---|---|
| Engine power | 102 hp76.1 kW | 102 hp76.1 kW | 102 hp76.1 kW |
| Operating weight | 8,312 lb3,770 kg | 9,856 lb4,471 kg | 8,283 lb3,757 kg |
| Weight per hp | 81 lb/hp50 kg/kW | 97 lb/hp59 kg/kW | 81 lb/hp49 kg/kW |
| Displacement | 317 ci5.19 L | 287.4 ci4.71 L | 329 ci5.39 L |
| Cylinders | 5 | 5 | 6 |
| Transmission | Synchromesh | Fully synchronized | Syncro-Range |
| Drive | 2WD | 2WD | 2WD |
| Years built | - | 1978-1983 | 1970-1975 |
Calculators
Calculators for the Tiger 100
PTO power
About 85 to 92 PTO hp
Estimated from the 102 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 102 hp tractor can run
Maximum size is about a 12 ft rotary cutter or a 10.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
95 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
102 hp is 76.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the SAME Tiger 100
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the SAME 1055LAmazon
Fits the SAME 1055L 5-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the SAME 1055LAmazon
Fits the SAME 1055L 5-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the SAME 1055LAmazon
Fits the SAME 1055L 5-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the SAME 1055LAmazon
Fits the SAME 1055L 5-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- SAME Tiger 100 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- SAME Tiger 100 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- SAME Tiger 100 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Tiger 100 vs. Row Crop median
SAME Tiger 100 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 102 hp | 138 hp | -26% | 26th |
| Engine Displacement | 317 ci | 391 ci | -19% | 35th |
| Cylinders | 5 | 6 | -17% | 31st |
| Forward Gears | 12 | 16 | -25% | 27th |
| Operating Weight | 8,312 lb | 12,307 lb | -32% | 22nd |
| Length | 156 in | 180 in | -13% | 20th |
| Width | 107 in | 91.2 in | +17% | 92nd |
| Height | 62.4 in | 114 in | -45% | 3rd |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other SAME models
Other manufacturers
Models with similar horsepower
Gallery

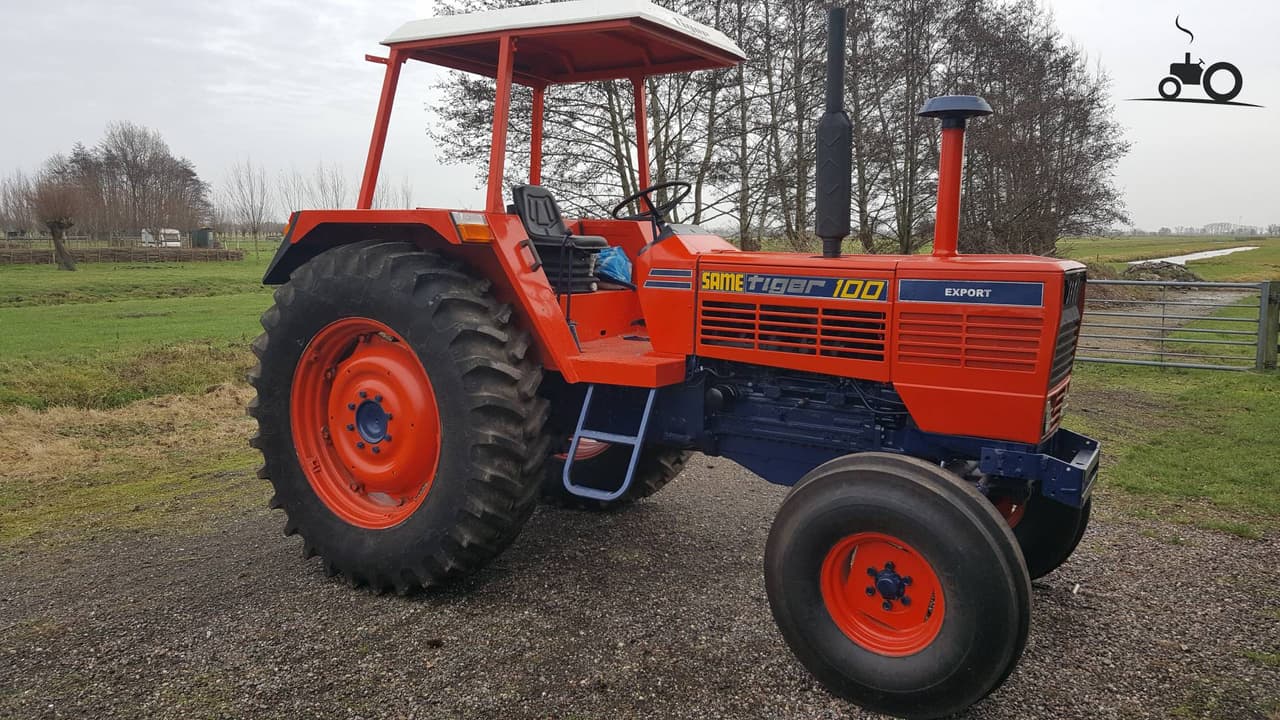

SAME Tiger 100 photos
FAQ
Frequently asked questions
What is the engine power output of the SAME Tiger 100?
Rated engine output for the SAME Tiger 100 is 102 hp, delivered by a 5-cylinder engine. The engine displaces 317 ci.
Which transmission does the SAME Tiger 100 use?
The SAME Tiger 100 is equipped with a Synchromesh transmission with 12 forward gears.
What three-point hitch category does the SAME Tiger 100 use?
The SAME Tiger 100 has a Category II three-point hitch.
What is the operating weight of the SAME Tiger 100?
The SAME Tiger 100 has an operating weight of about 8,312 lb.
How do I maintain a SAME Tiger 100?
Routine service for the SAME Tiger 100 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
