Agricultural tractorsSpec sheet
Schluter Super-Trac 1800 TVL
The Schluter Super-Trac 1800 TVL is a powerful 4-wheel drive tractor built for tough farm work. It has a strong diesel engine made by Schluter, with 6 cylinders and 185 horsepower. This engine is turbocharged and intercooled, which helps it perform well in different conditions. The tractor has 12 forward gears and 5 reverse gears, giving the driver lots of options for different tasks. This tractor is big and sturdy, measuring 222.8 inches long and 128.7 inches tall. It weighs 16,758 pounds, which helps it stay stable during heavy work. The Super-Trac 1800 TVL has large 38-inch tires on both the front and back, good for gripping the ground in fields. It also has hydrostatic power steering, making it easier to control despite its size. With its strong engine and durable build, this Schluter tractor is ready to handle tough farm jobs with ease.
Key specifications
- Category
- Agricultural
- Engine power
- 185hp
- Operating weight
- 16,758 lb
Category comparison
Super-Trac 1800 TVL compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
185 hp · 78th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Super-Trac 1800 TVL ranks at the 78th percentile for engine power among recorded agricultural tractors.
Overview
About the Schluter Super-Trac 1800 TVL
The Schluter Super-Trac 1800 TVL is a powerful 4-wheel drive tractor built for tough farm work. It has a strong diesel engine made by Schluter, with 6 cylinders and 185 horsepower. This engine is turbocharged and intercooled, which helps it perform well in different conditions. The tractor has 12 forward gears and 5 reverse gears, giving the driver lots of options for different tasks. This tractor is big and sturdy, measuring 222.8 inches long and 128.7 inches tall. It weighs 16,758 pounds, which helps it stay stable during heavy work. The Super-Trac 1800 TVL has large 38-inch tires on both the front and back, good for gripping the ground in fields. It also has hydrostatic power steering, making it easier to control despite its size. With its strong engine and durable build, this Schluter tractor is ready to handle tough farm jobs with ease.
Full specifications
Recorded specifications
General
| Manufacturer | Schluter |
|---|---|
| Model | Super-Trac 1800 TVL |
| Category | Agricultural tractor |
| Type | 4x4 |
| Operating weight | 16,758lb(7,601 kg) |
Engine
| Make | Schluter |
|---|---|
| Model | SDMT 112 W 6 LLK |
| Power | 185hp(138 kW) |
| Cylinders | 6 |
| Displacement | 450.9ci(7.39 L) |
| Bore | 4.41in(112 mm) |
| Stroke | 4.92in(125 mm) |
Transmission
| Forward gears | 12 |
|---|---|
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x4 |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 222.8in(5,659 mm) |
|---|---|
| Height | 128.7in(3,269 mm) |
| Operating weight | 16,758lb(7,601 kg) |
Closest alternatives
Super-Trac 1800 TVL compared with the nearest models by horsepower
By engine horsepower, the nearest agricultural models to the Super-Trac 1800 TVL are the Schluter Super 1900 TVL-LS Special and the Schluter Super 1900 TVL Special. The Schluter Super 1900 TVL-LS Special matches it on rated power and weighs 1,540 lb less, carrying 82 lb per horsepower against 91 lb. The Schluter Super 1900 TVL Special matches it on rated power and weighs 1,540 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the Super-Trac 1800 TVL has the highest weight per horsepower at 91 lb per hp.
| Spec | Schluter Super-Trac 1800 TVL | Schluter Super 1900 TVL-LS Special | Schluter Super 1900 TVL Special |
|---|---|---|---|
| Engine power | 185 hp138 kW | 185 hp138 kW | 185 hp138 kW |
| Operating weight | 16,758 lb7,601 kg | 15,214 lb6,901 kg | 15,214 lb6,901 kg |
| Weight per hp | 91 lb/hp55 kg/kW | 82 lb/hp50 kg/kW | 82 lb/hp50 kg/kW |
| Displacement | 450.9 ci7.39 L | 450.9 ci7.39 L | 450.9 ci7.39 L |
| Cylinders | 6 | 6 | 6 |
| Drive | 4WD | 4WD | 4WD |
Calculators
Calculators for the Super-Trac 1800 TVL
PTO power
About 154 to 167 PTO hp
Estimated from the 185 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 185 hp tractor can run
Maximum size is about a 22 ft rotary cutter or a 19 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
105 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
185 hp is 138.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Super-Trac 1800 TVL vs. Agricultural median
Schluter Super-Trac 1800 TVL compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 185 hp | 110 hp | +68% | 78th |
| Engine Displacement | 451 ci | 336 ci | +34% | 81st |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Operating Weight | 16,758 lb | 10,914 lb | +54% | 76th |
| Length | 223 in | 173 in | +29% | 91st |
| Height | 129 in | 111 in | +16% | 89th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 795–1,130 models).
Same manufacturer
Other Schluter models
Other manufacturers
Models with similar horsepower
Gallery

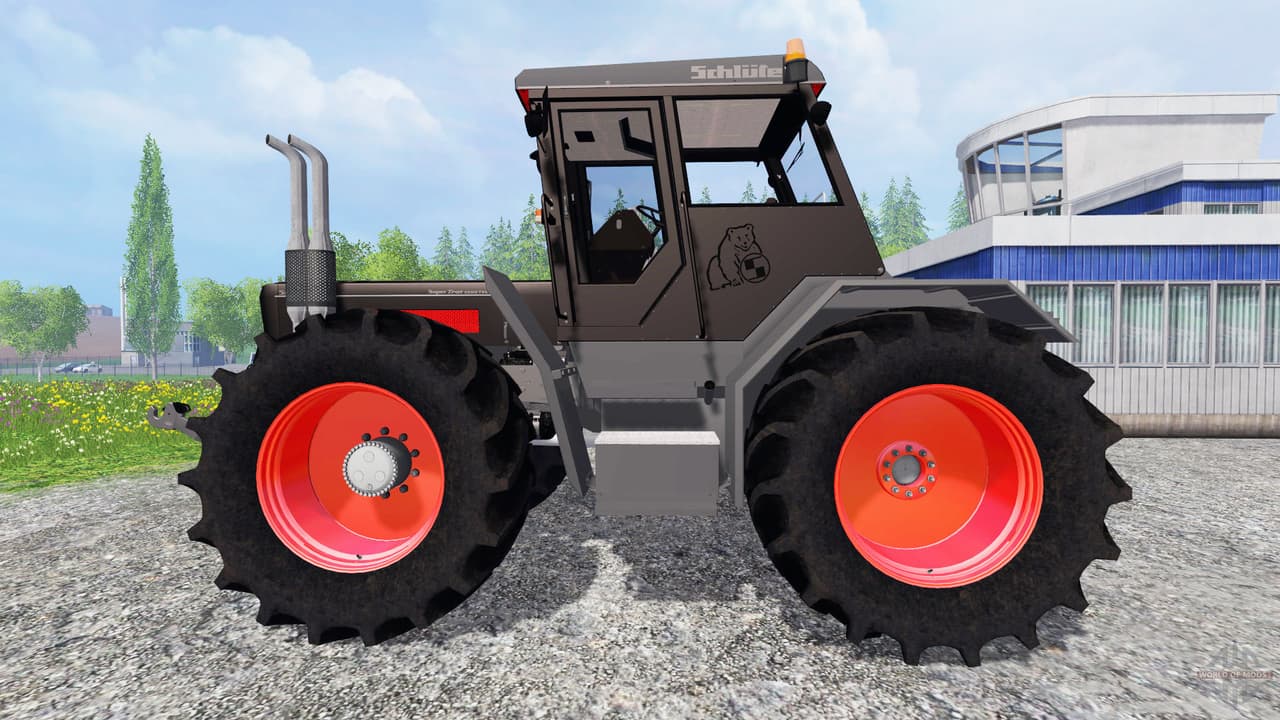

Schluter Super-Trac 1800 TVL photos
FAQ
Frequently asked questions
How powerful is the Schluter Super-Trac 1800 TVL?
The Schluter Super-Trac 1800 TVL has an engine power output of 185 hp. It is powered by a 6-cylinder engine displacing 450.9 ci.
What is the working weight of the Schluter Super-Trac 1800 TVL?
The operating weight of the Schluter Super-Trac 1800 TVL is approximately 16,758 lb.
What routine service does the Schluter Super-Trac 1800 TVL need?
Regular maintenance for the Schluter Super-Trac 1800 TVL includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
