Schluter Super-Trac 2200 LS
The Schluter Super-Trac 2200 LS is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Liebherr diesel engine with 6 cylinders and 210 horsepower. This engine is turbocharged, which means it can work hard even in challenging conditions. The tractor has big 38-inch wheels on both the front and back, giving it good traction in the field. One of the best things about this tractor is its transmission. It has 24 forward gears and 10 reverse gears, giving the driver lots of options for different tasks. The Super-Trac 2200 LS is also quite large, measuring 235 inches long and 127.6 inches tall. It weighs 19,161 pounds, which helps it stay stable during heavy work. The tractor has hydrostatic power steering, making it easier to control despite its size.
Key specifications
- Category
- Agricultural
- Engine power
- 210hp
- Operating weight
- 19,161 lb
Category comparison
Super-Trac 2200 LS compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
210 hp · 83rd
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Super-Trac 2200 LS ranks at the 83rd percentile for engine power among recorded agricultural tractors.
Overview
About the Schluter Super-Trac 2200 LS
The Schluter Super-Trac 2200 LS is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Liebherr diesel engine with 6 cylinders and 210 horsepower. This engine is turbocharged, which means it can work hard even in challenging conditions. The tractor has big 38-inch wheels on both the front and back, giving it good traction in the field. One of the best things about this tractor is its transmission. It has 24 forward gears and 10 reverse gears, giving the driver lots of options for different tasks. The Super-Trac 2200 LS is also quite large, measuring 235 inches long and 127.6 inches tall. It weighs 19,161 pounds, which helps it stay stable during heavy work. The tractor has hydrostatic power steering, making it easier to control despite its size.
Full specifications
Recorded specifications
General
| Manufacturer | Schluter |
|---|---|
| Model | Super-Trac 2200 LS |
| Category | Agricultural tractor |
| Type | 4x4 4WD |
| Operating weight | 19,161lb(8,691 kg) |
Engine
| Make | Liebherr |
|---|---|
| Model | D 916 T |
| Power | 210hp(156.6 kW) |
| Cylinders | 6 |
| Displacement | 559ci(9.16 L) |
| Bore | 4.72in(120 mm) |
| Stroke | 5.32in(135 mm) |
Transmission
| Forward gears | 24 |
|---|---|
| Reverse gears | 10 |
Chassis & drive
| Chassis | 4x4 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 235in(5,969 mm) |
|---|---|
| Height | 127.6in(3,241 mm) |
| Operating weight | 19,161lb(8,691 kg) |
Closest alternatives
Super-Trac 2200 LS compared with the nearest models by horsepower
Among agricultural tractors, the Claas Challenger 35 and the Fendt Favorit 822 are closest to the Schluter Super-Trac 2200 LS in rated horsepower. The Claas Challenger 35 matches it on rated power and weighs 3,100 lb more, at 106 lb per horsepower against 91 lb. The Fendt Favorit 822 matches it on rated power and weighs 2,120 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft.
| Spec | Schluter Super-Trac 2200 LS | Claas Challenger 35 | Fendt Favorit 822 |
|---|---|---|---|
| Engine power | 210 hp156.6 kW | 210 hp156.6 kW | 210 hp156.6 kW |
| Operating weight | 19,161 lb8,691 kg | 22,262 lb10,098 kg | 17,044 lb7,731 kg |
| Weight per hp | 91 lb/hp56 kg/kW | 106 lb/hp64 kg/kW | 81 lb/hp49 kg/kW |
| Displacement | 559 ci9.16 L | 403 ci6.6 L | 419.2 ci6.87 L |
| Cylinders | 6 | 6 | 6 |
| Drive | 4WD | Track | 4WD |
Calculators
Calculators for the Super-Trac 2200 LS
PTO power
About 174 to 189 PTO hp
Estimated from the 210 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 210 hp tractor can run
Maximum size is about a 25 ft rotary cutter or a 21.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
106 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
210 hp is 156.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Super-Trac 2200 LS vs. Agricultural median
Schluter Super-Trac 2200 LS compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 210 hp | 110 hp | +91% | 83rd |
| Engine Displacement | 559 ci | 336 ci | +67% | 91st |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 19,161 lb | 10,914 lb | +76% | 81st |
| Length | 235 in | 173 in | +36% | 94th |
| Height | 128 in | 111 in | +15% | 86th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 795–1,130 models).
Same manufacturer
Other Schluter models
Other manufacturers
Models with similar horsepower
Gallery

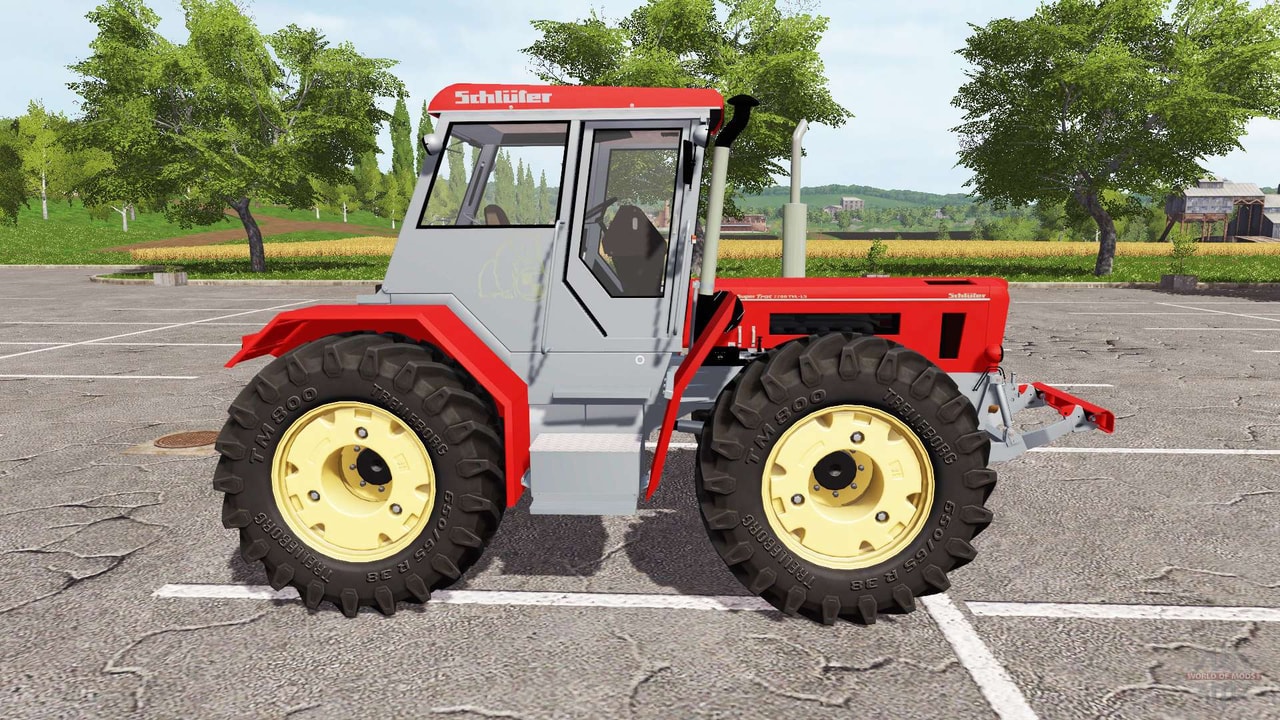

Schluter Super-Trac 2200 LS photos
FAQ
Frequently asked questions
How much horsepower does the Schluter Super-Trac 2200 LS have?
The Schluter Super-Trac 2200 LS produces 210 hp from its 6-cylinder engine. Engine displacement is 559 ci.
How much does the Schluter Super-Trac 2200 LS weigh?
The Schluter Super-Trac 2200 LS weighs about 19,161 lb in operating condition.
What maintenance does the Schluter Super-Trac 2200 LS require?
The Schluter Super-Trac 2200 LS needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
