UtilityPerformance profile
Shibaura SF1040T
The Shibaura SF1040T is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine that makes 105 horsepower, which is very high for its class. The engine is turbocharged and liquid-cooled, helping it run smoothly in all conditions. This tractor has a 4-wheel drive system and hydrostatic power steering, making it easy to control in fields and on rough terrain. The SF1040T is big and sturdy, weighing 7,915 pounds. It has a 16-speed forward and 4-speed reverse transmission, giving farmers lots of options for different tasks. The tractor has large agricultural tires, with 12.4-24 in front and 18.4-34 in back. It comes with an open operator station or a two-post roll-over protection system (ROPS) for safety. The hydraulic system and category II hitch make it easy to use with many farm tools. Overall, the Shibaura SF1040T is a reliable and strong tractor that can handle most farm jobs with ease.
ManufacturerShibauraPower105 hpEngine4-cylTransConstant mesh
Quick specs
- Category
- Utility
- Engine Power Output
- 105hp
- Operating Weight
- 7,915 lb
- Transmission
- Constant mesh
At a glance
How the SF1040T compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
105 hp · 85th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The SF1040T ranks at the 85th percentile for engine power among recorded utility tractors.
Overview
About the Shibaura SF1040T
The Shibaura SF1040T is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine that makes 105 horsepower, which is very high for its class. The engine is turbocharged and liquid-cooled, helping it run smoothly in all conditions. This tractor has a 4-wheel drive system and hydrostatic power steering, making it easy to control in fields and on rough terrain. The SF1040T is big and sturdy, weighing 7,915 pounds. It has a 16-speed forward and 4-speed reverse transmission, giving farmers lots of options for different tasks. The tractor has large agricultural tires, with 12.4-24 in front and 18.4-34 in back. It comes with an open operator station or a two-post roll-over protection system (ROPS) for safety. The hydraulic system and category II hitch make it easy to use with many farm tools. Overall, the Shibaura SF1040T is a reliable and strong tractor that can handle most farm jobs with ease.
Full specifications
Every recorded spec
General
| Manufacturer | Shibaura |
|---|---|
| Model | SF1040T |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 7,915lb |
Engine
| Make | Shibaura |
|---|---|
| Model | LER1104T |
| Power | 105hp |
| Cylinders | 4 |
| Displacement | 278.3ci |
| Bore | 4.33in |
| Stroke | 4.72in |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Mechanical wet disc |
| Cab | Open operator station or two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 161in |
|---|---|
| Width | 74in |
| Height | 108in |
| Operating weight | 7,915lb |
Tires
| Front | 12.4-24 |
|---|---|
| Rear | 18.4-34 |
Head to head
SF1040T vs. Utility median
How the Shibaura SF1040T compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 55 hp | +91% | 85th |
| Engine Displacement | 278 ci | 183 ci | +52% | 82nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 7,915 lb | 5,303 lb | +49% | 75th |
| Length | 161 in | 137 in | +18% | 78th |
| Width | 74 in | 66 in | +12% | 69th |
| Height | 108 in | 94.1 in | +15% | 84th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Shibaura tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Shibaura V490F | 88.8 hp | 6,493 lb | — | Compare → |
| Shibaura SE8300 | 83 hp | 7,260 lb | — | Compare → |
| Shibaura V475F | 74 hp | 6,471 lb | — | Compare → |
| Shibaura SE7300T | 73 hp | 5,724 lb | — | Compare → |
| Shibaura SE7340 | 73 hp | 7,018 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1052 | 105 hp | 7,209 lb | — | Compare → |
| Allis Chalmers 7010 | 105.77 hp | 11,260 lb | 1980–1981 | Compare → |
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
Explore
Shibaura siblings
Explore
Similar-spec models
Gallery

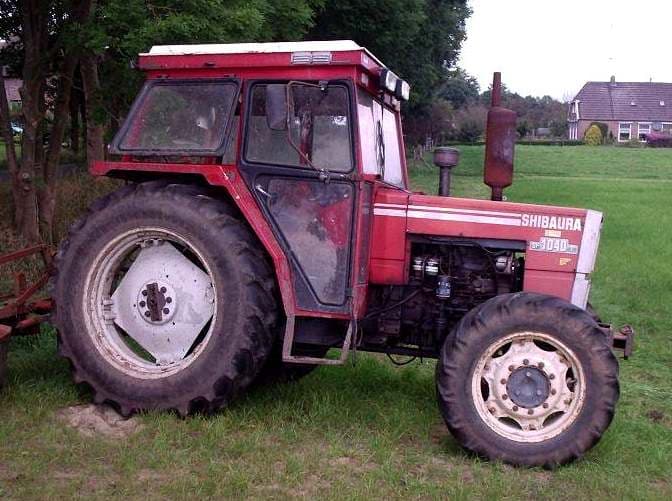

Shibaura SF1040T photos
FAQ
Common questions
How powerful is the Shibaura SF1040T?
The Shibaura SF1040T has an engine power output of 105 hp. It is powered by a 4-cylinder engine displacing 278.3 ci.
What is the working weight of the Shibaura SF1040T?
The operating weight of the Shibaura SF1040T is approximately 7,915 lb.
What type of transmission does the Shibaura SF1040T have?
The Shibaura SF1040T uses a Constant mesh transmission offering 16 forward gears.
What hydraulics does the Shibaura SF1040T have?
The Shibaura SF1040T uses an Open center hydraulic system.
What are the factory tire sizes for the Shibaura SF1040T?
The Shibaura SF1040T comes with 12.4-24 front tires and 18.4-34 rear tires.
What three-point hitch category does the Shibaura SF1040T use?
The Shibaura SF1040T has a Category II three-point hitch.
What routine service does the Shibaura SF1040T need?
Regular maintenance for the Shibaura SF1040T includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
