UtilityPerformance profile
Steiger 9170
The Steiger 9170 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated frame and four-wheel drive, making it great for working in rough fields. The tractor is powered by a Cummins NTA-855 diesel engine with 6 cylinders. This engine is very strong, producing 335 horsepower, which is much more than most tractors. It also has a very large engine size of 855 cubic inches, putting it near the top of all tractors. This tractor is big and heavy, weighing 28,000 pounds. It's about 23 feet long, 7.5 feet wide, and 12.5 feet tall. The Steiger 9170 has a full power shift transmission with 12 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. It has hydrostatic power steering for easy control and a closed center hydraulic system. The tractor uses big agricultural tires and has a category IV hitch for attaching large implements. With its high ground clearance of 19.5 inches, this tractor can easily handle rough terrain and tough field conditions.
ManufacturerSteigerPower335 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 335hp
- Operating Weight
- 28,000 lb
- Transmission
- Full power shift
At a glance
How the 9170 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
335 hp · 97th
This model
9
Median 55 hp
177
335
This modelUtility tractorsMediann = 5,383
The 9170 ranks at the 97th percentile for engine power among recorded utility tractors.
Overview
About the Steiger 9170
The Steiger 9170 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated frame and four-wheel drive, making it great for working in rough fields. The tractor is powered by a Cummins NTA-855 diesel engine with 6 cylinders. This engine is very strong, producing 335 horsepower, which is much more than most tractors. It also has a very large engine size of 855 cubic inches, putting it near the top of all tractors. This tractor is big and heavy, weighing 28,000 pounds. It's about 23 feet long, 7.5 feet wide, and 12.5 feet tall. The Steiger 9170 has a full power shift transmission with 12 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. It has hydrostatic power steering for easy control and a closed center hydraulic system. The tractor uses big agricultural tires and has a category IV hitch for attaching large implements. With its high ground clearance of 19.5 inches, this tractor can easily handle rough terrain and tough field conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Steiger |
|---|---|
| Model | 9170 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 28,000lb |
Engine
| Make | Cummins |
|---|---|
| Model | NTA-855 |
| Power | 335hp |
| Cylinders | 6 |
| Displacement | 855ci |
| Bore | 5.5in |
| Stroke | 6in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 12 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center |
|---|
Dimensions
| Length | 279.5in |
|---|---|
| Width | 92.3in |
| Height | 149.6in |
| Operating weight | 28,000lb |
Capacities
| Cooling system | 16.5gal |
|---|
Head to head
9170 vs. Utility median
How the Steiger 9170 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 335 hp | 55 hp | +509% | 97th |
| Engine Displacement | 855 ci | 183 ci | +367% | 98th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 28,000 lb | 5,303 lb | +428% | 97th |
| Length | 280 in | 137 in | +105% | 98th |
| Width | 92.3 in | 66 in | +40% | 93rd |
| Height | 150 in | 94.1 in | +59% | 98th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Steiger tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steiger Panther 1000 | 335 hp | 29,000 lb | — | Compare → |
| Steiger Panther IV SM-325 | 335.77 hp | 29,000 lb | — | Compare → |
| Steiger Panther KP-1360 | 331.32 hp | 35,500 lb | 1982+ | Compare → |
| Steiger CU-325 | 325 hp | — | — | Compare → |
| Steiger Panther III PTA-325 | 325 hp | 29,605 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 9170 | 335 hp | — | — | Compare → |
| CaseIH 9270 | 335 hp | 34,045 lb | — | Compare → |
| CaseIH Magnum 335 | 330 hp | 21,350 lb | — | Compare → |
| CaseIH Magnum 340 | 340 hp | 28,230 lb | — | Compare → |
| CaseIH Magnum 315 | 347 hp | 27,800 lb | — | Compare → |
Explore
Steiger siblings
Explore
Similar-spec models
Gallery

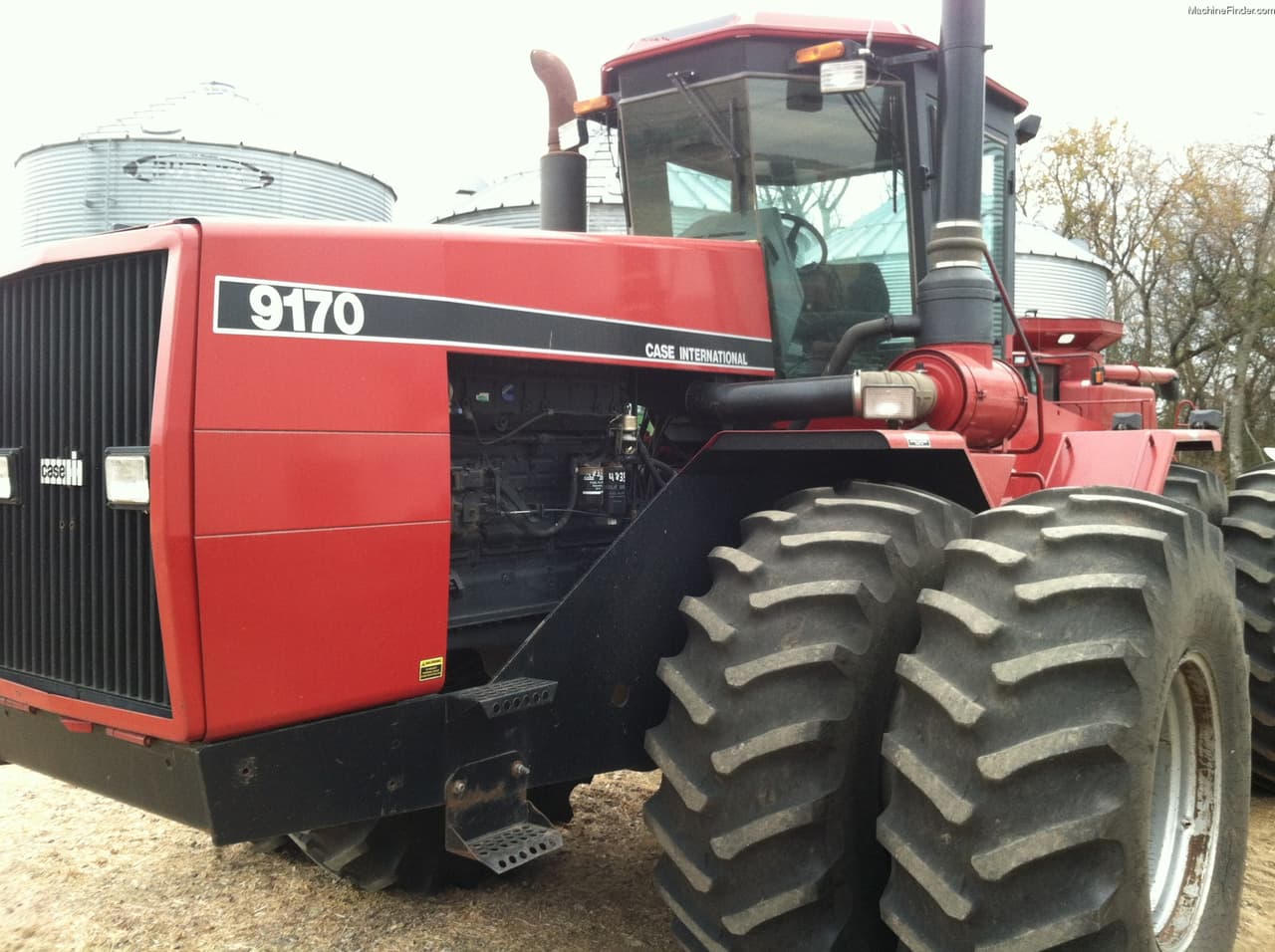

Steiger 9170 photos
FAQ
Common questions
What is the engine power output of the Steiger 9170?
Rated engine output for the Steiger 9170 is 335 hp, delivered by a 6-cylinder engine. The engine displaces 855 ci.
Which transmission does the Steiger 9170 use?
The Steiger 9170 is equipped with a Full power shift transmission with 12 forward gears.
What type of hydraulic system does the Steiger 9170 use?
Hydraulics on the Steiger 9170 are Closed center.
What hitch category is the Steiger 9170?
The Steiger 9170 uses a Category IV hitch.
What is the operating weight of the Steiger 9170?
In working trim, the Steiger 9170 comes in at roughly 28,000 lb.
How do I maintain a Steiger 9170?
Routine service for the Steiger 9170 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
