Utility tractorsSpec sheet
Steyr 540
The Steyr 540 is a utility tractor built for everyday farm work. It has a 2-wheel drive system and a manual steering setup, making it easy to handle in fields. The tractor comes with a gear transmission that offers 8 forward speeds and 6 reverse speeds, giving farmers plenty of options for different tasks. Under the hood, the Steyr 540 has a 3-cylinder diesel engine made by Steyr. This engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has an average displacement of 143.7 cubic inches and can produce 40 horsepower at 2400 RPM. The tractor's weight is about average at 4675 pounds, making it sturdy enough for most farm jobs. It measures 131.1 inches long and 60.2 inches tall, with agricultural tires suitable for field work.
Key specifications
- Category
- Utility
- Engine power
- 40hp
- Operating weight
- 4,675 lb
- Transmission
- Gear
Category comparison
540 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
40 hp · 33rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 540 ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the Steyr 540
The Steyr 540 is a utility tractor built for everyday farm work. It has a 2-wheel drive system and a manual steering setup, making it easy to handle in fields. The tractor comes with a gear transmission that offers 8 forward speeds and 6 reverse speeds, giving farmers plenty of options for different tasks. Under the hood, the Steyr 540 has a 3-cylinder diesel engine made by Steyr. This engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has an average displacement of 143.7 cubic inches and can produce 40 horsepower at 2400 RPM. The tractor's weight is about average at 4675 pounds, making it sturdy enough for most farm jobs. It measures 131.1 inches long and 60.2 inches tall, with agricultural tires suitable for field work.
Full specifications
Recorded specifications
General
| Manufacturer | Steyr |
|---|---|
| Model | 540 |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 4,675lb(2,121 kg) |
Engine
| Make | Steyr |
|---|---|
| Model | WD 308.40 |
| Power | 40hp(29.83 kW) |
| Cylinders | 3 |
| Displacement | 143.7ci(2.36 L) |
| Bore | 3.94in(100.1 mm) |
| Stroke | 3.94in(100.1 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 131.1in(3,330 mm) |
|---|---|
| Height | 60.2in(1,529 mm) |
| Operating weight | 4,675lb(2,121 kg) |
Tires
| Front | 6.00-16ConvertShop size |
|---|---|
| Rear | 12.4-28ConvertShop size |
Closest alternatives
540 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 540 are the Massey Ferguson 1740M and the New Holland Boomer 40 (2017-). The Massey Ferguson 1740M matches it on rated power and weighs 1,300 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The New Holland Boomer 40 (2017-) matches it on rated power and weighs 1,880 lb less, carrying 70 lb per horsepower against 117 lb. Of the 3 models, the 540 has the highest weight per horsepower at 117 lb per hp.
| Spec | Steyr 540 | Massey Ferguson 1740M | New Holland Boomer 40 (2017-) |
|---|---|---|---|
| Engine power | 40 hp29.8 kW | 40 hp29.8 kW | 40 hp29.8 kW |
| Operating weight | 4,675 lb2,121 kg | 3,373 lb1,530 kg | 2,800 lb1,270 kg |
| Weight per hp | 117 lb/hp71 kg/kW | 84 lb/hp51 kg/kW | 70 lb/hp43 kg/kW |
| Displacement | 143.7 ci2.35 L | 101.4 ci1.66 L | 114.7 ci1.88 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear | Shuttle | Synchronized shuttle |
| Drive | 2WD | MFWD | 4WD |
| Years built | - | 2018+ | 2017+ |
Calculators
Calculators for the 540
PTO power
About 33 to 36 PTO hp
Estimated from the 40 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 40 hp tractor can run
Maximum size is about a 5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
136 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
40 hp is 29.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 12.4-28 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Parts and manuals
Parts and manuals for the Steyr 540
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Steyr WD 308.40Amazon
Fits the Steyr WD 308.40 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Steyr WD 308.40Amazon
Fits the Steyr WD 308.40 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Steyr WD 308.40Amazon
Fits the Steyr WD 308.40 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Steyr WD 308.40Amazon
Fits the Steyr WD 308.40 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Steyr 540 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Steyr 540 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Steyr 540 service manualAmazon
Shop and repair manuals for this model.
Tires
- 6.00-16 tiresAmazon
Listed front tire size for the Steyr 540.
- 12.4-28 tiresAmazon
Listed rear tire size for the Steyr 540.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
540 vs. Utility median
Steyr 540 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 144 ci | 183 ci | -22% | 36th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,675 lb | 5,303 lb | -12% | 45th |
| Length | 131 in | 137 in | -4% | 43rd |
| Height | 60.2 in | 94.1 in | -36% | 10th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other Steyr models
Other manufacturers
Models with similar horsepower
Gallery

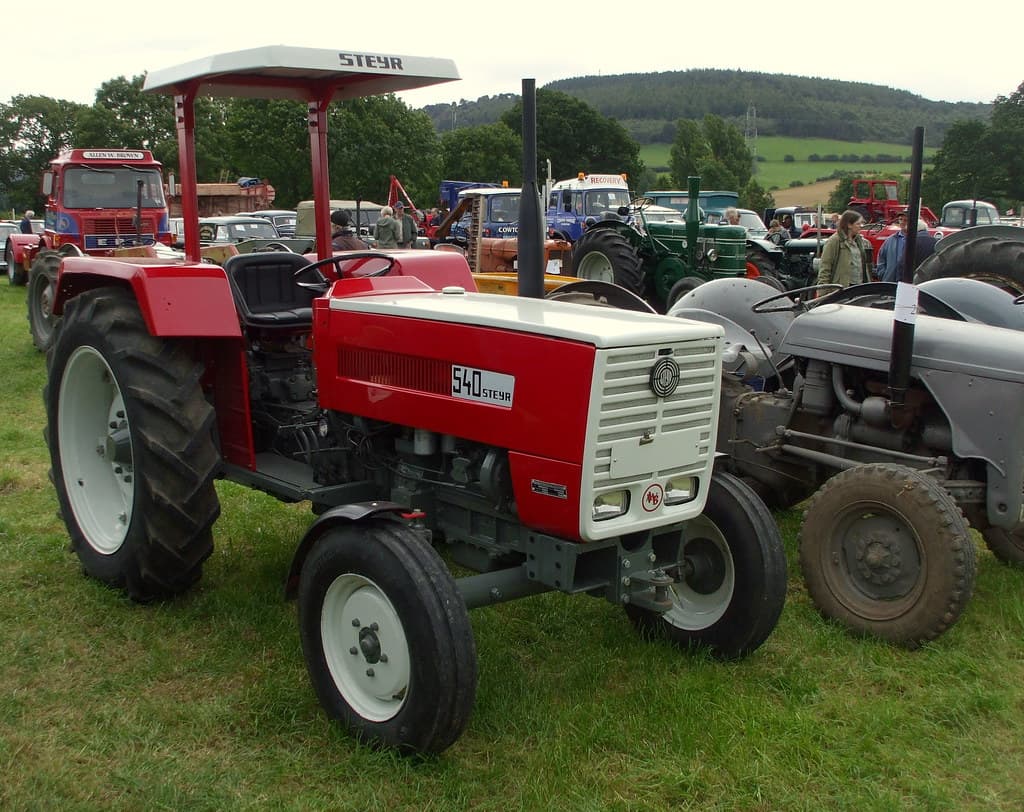

Steyr 540 photos
FAQ
Frequently asked questions
How much horsepower does the Steyr 540 have?
The Steyr 540 produces 40 hp from its 3-cylinder engine. Engine displacement is 143.7 ci.
How much does the Steyr 540 weigh?
The Steyr 540 weighs about 4,675 lb in operating condition.
What transmission is in the Steyr 540?
Transmission on the Steyr 540 is Gear, with 8 forward speeds.
What size tires does the Steyr 540 use?
The Steyr 540 is fitted with 6.00-16 front tires and 12.4-28 rear tires from the factory.
What maintenance does the Steyr 540 require?
The Steyr 540 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
