UtilityPerformance profile
Steyr 86
The Steyr 86 is a compact utility tractor designed for standard tread applications. It features a 2WD chassis with manual steering, making it easy to maneuver in tight spaces. The tractor is powered by a single-cylinder, liquid-cooled diesel engine made by Steyr. This engine, model WD 113a, has a displacement of 81.2 ci, which is below average for tractors in its class. It produces 17.8 hp at 1750 rpm, which is also on the lower end of the power range for utility tractors. This tractor comes with a gear transmission that includes a creeper option, offering 5 forward gears and 1 reverse gear. It has agricultural tires on both the front and rear, suitable for farm work. The Steyr 86 is compact, measuring 98 inches long, 63 inches wide, and 58.5 inches high. It has a ground clearance of 12.2 inches, which is good for clearing small obstacles. With an operating weight of 2646 lb, it's lighter than many other tractors in its category. The electric starter makes it easy to get the tractor running, even in cold weather.
ManufacturerSteyrPower17.8 hpEngine1-cylTransGear with creeper
Quick specs
- Category
- Utility
- Engine Power Output
- 18hp
- Operating Weight
- 2,646 lb
- Transmission
- Gear with creeper
At a glance
How the 86 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
17.8 hp · 6th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 86 ranks at the 6th percentile for engine power among recorded utility tractors.
Overview
About the Steyr 86
The Steyr 86 is a compact utility tractor designed for standard tread applications. It features a 2WD chassis with manual steering, making it easy to maneuver in tight spaces. The tractor is powered by a single-cylinder, liquid-cooled diesel engine made by Steyr. This engine, model WD 113a, has a displacement of 81.2 ci, which is below average for tractors in its class. It produces 17.8 hp at 1750 rpm, which is also on the lower end of the power range for utility tractors. This tractor comes with a gear transmission that includes a creeper option, offering 5 forward gears and 1 reverse gear. It has agricultural tires on both the front and rear, suitable for farm work. The Steyr 86 is compact, measuring 98 inches long, 63 inches wide, and 58.5 inches high. It has a ground clearance of 12.2 inches, which is good for clearing small obstacles. With an operating weight of 2646 lb, it's lighter than many other tractors in its category. The electric starter makes it easy to get the tractor running, even in cold weather.
Full specifications
Every recorded spec
General
| Manufacturer | Steyr |
|---|---|
| Model | 86 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 2,646lb |
Engine
| Make | Steyr |
|---|---|
| Model | WD 113a |
| Power | 17.8hp |
| Cylinders | 1 |
| Displacement | 81.2ci |
| Bore | 4.33in |
| Stroke | 5.51in |
Transmission
| Type | Gear with creeper |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 98in |
|---|---|
| Width | 63in |
| Height | 58.5in |
| Operating weight | 2,646lb |
Head to head
86 vs. Utility median
How the Steyr 86 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 17.8 hp | 55 hp | -68% | 6th |
| Engine Displacement | 81.2 ci | 183 ci | -56% | 13th |
| Cylinders | 1 | 4 | -75% | 1st |
| Operating Weight | 2,646 lb | 5,303 lb | -50% | 18th |
| Length | 98 in | 137 in | -28% | 7th |
| Width | 63 in | 66 in | -5% | 43rd |
| Height | 58.5 in | 94.1 in | -38% | 9th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Steyr tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steyr 84 | 17.8 hp | 2,690 lb | — | Compare → |
| Steyr 30 | 30 hp | 3,902 lb | — | Compare → |
| Steyr 182 | 35.5 hp | 4,233 lb | — | Compare → |
| Steyr 182a | 35.5 hp | 4,233 lb | — | Compare → |
| Steyr 180a | — | 4,189 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5015 | 18 hp | 1,278 lb | 1982–1985 | Compare → |
| Allis Chalmers WC (1938-1948) | 18 hp | 3,792 lb | 1938–1948 | Compare → |
| Bolens 1886 | 18 hp | — | 1971–1972 | Compare → |
| CaseIH 235 | 18 hp | 1,350 lb | — | Compare → |
| CaseIH Farmall DX18E | 18 hp | 1,314 lb | — | Compare → |
Explore
Steyr siblings
Explore
Similar-spec models

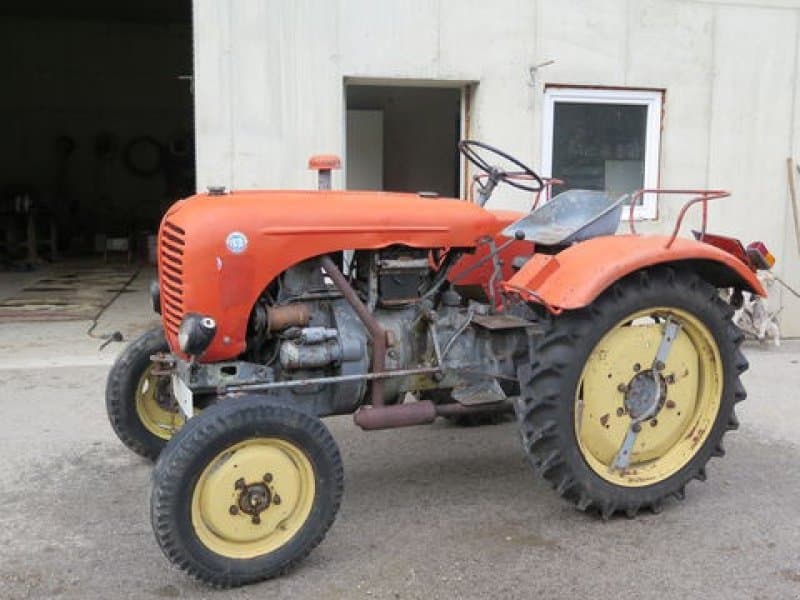

Gallery
Steyr 86 photos
FAQ
Common questions
How much horsepower does the Steyr 86 have?
The Steyr 86 produces 17.8 hp from its 1-cylinder engine. Engine displacement is 81.2 ci.
How much does the Steyr 86 weigh?
The Steyr 86 weighs about 2,646 lb in operating condition.
What transmission is in the Steyr 86?
Transmission on the Steyr 86 is Gear with creeper.
What maintenance does the Steyr 86 require?
Like any tractor, the Steyr 86 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
