Yanmar AF-180
The Yanmar AF-180 is a compact utility tractor made from 1997 to 2000. It's a small but capable machine, perfect for light farm work and small properties. This tractor has a 4-wheel drive system, which helps it move well on different types of ground. The AF-180 is powered by a Yanmar 3TNE74 diesel engine. This engine has 3 cylinders and is liquid-cooled, which helps it run smoothly. It produces 17.8 horsepower, which is on the lower end compared to other tractors. The engine size is also smaller than average. The tractor has a shuttle transmission with 8 forward and 8 reverse gears, giving the driver good control over speed. It's a lightweight tractor, weighing 1,653 pounds, which is less than many other tractors. This makes it easy to move around, but it might not be best for very heavy jobs.
ManufacturerYanmarPower17.8 hpEngine3-cylTransShuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 18hp
- Operating Weight
- 1,653 lb
- Transmission
- Shuttle
At a glance
How the AF-180 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
17.8 hp · 6th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The AF-180 ranks at the 6th percentile for engine power among recorded utility tractors.
Overview
About the Yanmar AF-180
The Yanmar AF-180 is a compact utility tractor made from 1997 to 2000. It's a small but capable machine, perfect for light farm work and small properties. This tractor has a 4-wheel drive system, which helps it move well on different types of ground. The AF-180 is powered by a Yanmar 3TNE74 diesel engine. This engine has 3 cylinders and is liquid-cooled, which helps it run smoothly. It produces 17.8 horsepower, which is on the lower end compared to other tractors. The engine size is also smaller than average. The tractor has a shuttle transmission with 8 forward and 8 reverse gears, giving the driver good control over speed. It's a lightweight tractor, weighing 1,653 pounds, which is less than many other tractors. This makes it easy to move around, but it might not be best for very heavy jobs.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | AF-180 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 1997–2000 |
| Operating weight | 1,653lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNE74 |
| Power | 17.8hp |
| Cylinders | 3 |
| Displacement | 61.4ci |
| Bore | 2.91in |
| Stroke | 3.07in |
Transmission
| Type | Shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 103.2in |
|---|---|
| Width | 43.3in |
| Height | 75.6in |
| Operating weight | 1,653lb |
Head to head
AF-180 vs. Utility median
How the Yanmar AF-180 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 17.8 hp | 55 hp | -68% | 6th |
| Engine Displacement | 61.4 ci | 183 ci | -66% | 7th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 1,653 lb | 5,303 lb | -69% | 8th |
| Length | 103 in | 137 in | -24% | 11th |
| Width | 43.3 in | 66 in | -34% | 7th |
| Height | 75.6 in | 94.1 in | -20% | 21st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar AF-18 | 17.8 hp | 1,653 lb | 1992+ | Compare → |
| Yanmar YM1802 | 18 hp | 2,260 lb | 1982–1983 | Compare → |
| Yanmar YM1810 | 18 hp | 1,808 lb | 1980–1981 | Compare → |
| Yanmar YM186 | 18 hp | 1,433 lb | 1980–1986 | Compare → |
| Yanmar YM187 | 18 hp | 1,523 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5015 | 18 hp | 1,278 lb | 1982–1985 | Compare → |
| Allis Chalmers WC (1938-1948) | 18 hp | 3,792 lb | 1938–1948 | Compare → |
| Bolens 1886 | 18 hp | — | 1971–1972 | Compare → |
| CaseIH 235 | 18 hp | 1,350 lb | — | Compare → |
| CaseIH Farmall DX18E | 18 hp | 1,314 lb | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

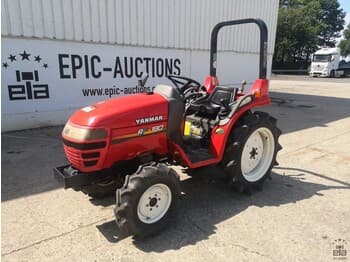

Yanmar AF-180 photos
FAQ
Common questions
When was the Yanmar AF-180 made?
The Yanmar AF-180 was manufactured from 1997 to 2000.
What is the operating weight of the Yanmar AF-180?
In working trim, the Yanmar AF-180 comes in at roughly 1,653 lb.
Which transmission does the Yanmar AF-180 use?
The Yanmar AF-180 is equipped with a Shuttle transmission with 8 forward gears.
What is the engine power output of the Yanmar AF-180?
Rated engine output for the Yanmar AF-180 is 17.8 hp, delivered by a 3-cylinder engine. The engine displaces 61.4 ci.
How do I maintain a Yanmar AF-180?
Routine service for the Yanmar AF-180 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
