UtilityPerformance profile
TYM T1104
The TYM T1104 is a powerful utility tractor that's great for big farm jobs. It has a strong Doosan diesel engine with 105 horsepower, which is very high compared to other tractors. This engine has four cylinders and uses a turbocharger to make it even stronger. The tractor is cooled by liquid to keep it running smoothly. One of the best things about the T1104 is its transmission. It has 32 gears going forward and 32 going backward, which means you can pick just the right speed for any task. The tractor is big and sturdy, weighing 8,666 pounds, which is above average for its class. It has a cab for the driver, keeping them comfortable and safe while working. The tractor also has power steering, making it easier to control despite its size. This TYM tractor is built to handle tough jobs. It has a strong hitch at the back for pulling heavy equipment. The hydraulic system is open center type, which is good for using different tools. With its size (165.4 inches long, 86 inches wide, and 107 inches tall) and features, the T1104 is a great choice for farmers who need a reliable and powerful machine for their daily work.
ManufacturerTYMPower105 hpEngine4-cylTransPower Shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 105hp
- Operating Weight
- 8,666 lb
- Transmission
- Power Shuttle
At a glance
How the T1104 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
105 hp · 85th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The T1104 ranks at the 85th percentile for engine power among recorded utility tractors.
Overview
About the TYM T1104
The TYM T1104 is a powerful utility tractor that's great for big farm jobs. It has a strong Doosan diesel engine with 105 horsepower, which is very high compared to other tractors. This engine has four cylinders and uses a turbocharger to make it even stronger. The tractor is cooled by liquid to keep it running smoothly. One of the best things about the T1104 is its transmission. It has 32 gears going forward and 32 going backward, which means you can pick just the right speed for any task. The tractor is big and sturdy, weighing 8,666 pounds, which is above average for its class. It has a cab for the driver, keeping them comfortable and safe while working. The tractor also has power steering, making it easier to control despite its size. This TYM tractor is built to handle tough jobs. It has a strong hitch at the back for pulling heavy equipment. The hydraulic system is open center type, which is good for using different tools. With its size (165.4 inches long, 86 inches wide, and 107 inches tall) and features, the T1104 is a great choice for farmers who need a reliable and powerful machine for their daily work.
Full specifications
Every recorded spec
General
| Manufacturer | TYM |
|---|---|
| Model | T1104 |
| Category | Utility tractor |
| Operating weight | 8,666lb |
Engine
| Make | Doosan |
|---|---|
| Model | DK03-LEA04 |
| Power | 105hp |
| Cylinders | 4 |
| Displacement | 208ci |
Transmission
| Type | Power Shuttle |
|---|---|
| Forward gears | 32 |
| Reverse gears | 32 |
Chassis & drive
| Steering | Power |
|---|---|
| Cab | Cab |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 165.4in |
|---|---|
| Width | 86in |
| Height | 107in |
| Operating weight | 8,666lb |
Capacities
| Cooling system | 4.23gal |
|---|
Head to head
T1104 vs. Utility median
How the TYM T1104 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 55 hp | +91% | 85th |
| Engine Displacement | 208 ci | 183 ci | +14% | 58th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 32 | 12 | +167% | 97th |
| Operating Weight | 8,666 lb | 5,303 lb | +63% | 80th |
| Length | 165 in | 137 in | +21% | 83rd |
| Width | 86 in | 66 in | +30% | 89th |
| Height | 107 in | 94.1 in | +14% | 82nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared TYM tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1052 | 105 hp | 7,209 lb | — | Compare → |
| Allis Chalmers 7010 | 105.77 hp | 11,260 lb | 1980–1981 | Compare → |
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
Explore
TYM siblings
Explore
Similar-spec models
Gallery

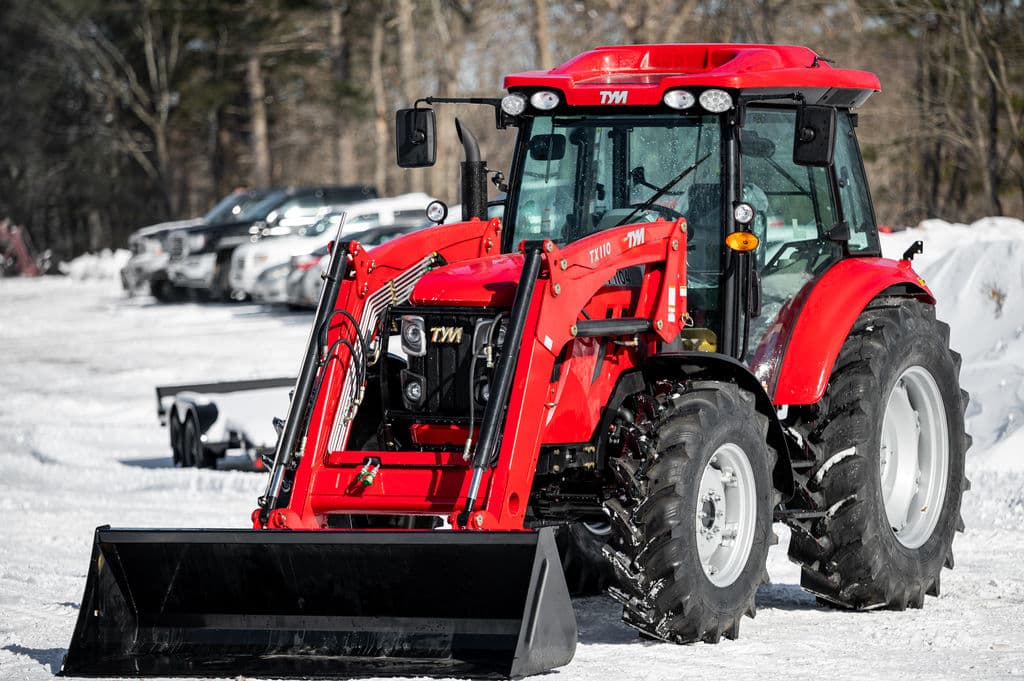

TYM T1104 photos
FAQ
Common questions
How powerful is the TYM T1104?
The TYM T1104 has an engine power output of 105 hp. It is powered by a 4-cylinder engine displacing 208 ci.
What hitch category is the TYM T1104?
The TYM T1104 uses a Category Category 3 hitch.
What is the working weight of the TYM T1104?
The operating weight of the TYM T1104 is approximately 8,666 lb.
What type of transmission does the TYM T1104 have?
The TYM T1104 uses a Power Shuttle transmission offering 32 forward gears.
What type of hydraulic system does the TYM T1104 use?
Hydraulics on the TYM T1104 are Open Center.
What routine service does the TYM T1104 need?
Regular maintenance for the TYM T1104 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
