Unimog 30
The Unimog 30 is a powerful crawler tractor built for tough jobs. It has a 4x4 four-wheel drive system, which means it can handle rough terrain easily. The tractor uses a manual transmission with 8 forward gears and 2 reverse gears, giving the driver lots of control. Under the hood, the Unimog 30 has a Mercedes-Benz OM636 engine. This diesel engine has 4 cylinders and is cooled by liquid. It can produce 30 horsepower, which is below average for tractors but still strong enough for many tasks. The engine runs at 2,550 RPM, which is very high compared to other tractors. The tractor weighs 4,900 pounds, which is on the lighter side for its class. It has big agricultural tires on both the front and back, measuring 18 inches in diameter. This helps it grip the ground well. The Unimog 30 has some handy features for farmers. It has a category III hitch, which lets it connect to many different tools. The tractor stands 81 inches tall and has a wheelbase of 67.7 inches. It can carry extra weight, up to 6,729 pounds when fully loaded. The tractor also has an electric starter, making it easy to get going in the morning. With its strong build and useful features, the Unimog 30 is a good choice for farmers who need a reliable crawler tractor.

Key specifications
- Category
- Crawler
- Engine power
- 30hp
- Operating weight
- 4,900 lb
- Transmission
- Manual
Category comparison
30 compared with its category
vs. Crawler medianDistribution
Engine Power (hp)
All recorded Crawler tractors
This model
The 30 ranks at the 14th percentile for engine power among recorded crawler tractors.
Overview
About the Unimog 30
The Unimog 30 is a powerful crawler tractor built for tough jobs. It has a 4x4 four-wheel drive system, which means it can handle rough terrain easily. The tractor uses a manual transmission with 8 forward gears and 2 reverse gears, giving the driver lots of control. Under the hood, the Unimog 30 has a Mercedes-Benz OM636 engine. This diesel engine has 4 cylinders and is cooled by liquid. It can produce 30 horsepower, which is below average for tractors but still strong enough for many tasks. The engine runs at 2,550 RPM, which is very high compared to other tractors. The tractor weighs 4,900 pounds, which is on the lighter side for its class. It has big agricultural tires on both the front and back, measuring 18 inches in diameter. This helps it grip the ground well. The Unimog 30 has some handy features for farmers. It has a category III hitch, which lets it connect to many different tools. The tractor stands 81 inches tall and has a wheelbase of 67.7 inches. It can carry extra weight, up to 6,729 pounds when fully loaded. The tractor also has an electric starter, making it easy to get going in the morning. With its strong build and useful features, the Unimog 30 is a good choice for farmers who need a reliable crawler tractor.
Full specifications
Recorded specifications
General
| Manufacturer | Unimog |
|---|---|
| Model | 30 |
| Category | Crawler tractor |
| Type | 4x4 4WD |
| Operating weight | 4,900lb(2,223 kg) |
Engine
| Make | Mercedes-Benz |
|---|---|
| Model | OM636 |
| Power | 30hp(22.37 kW) |
| Cylinders | 4 |
| Displacement | 107.8ci(1.77 L) |
| Bore | 2.95in(74.93 mm) |
| Stroke | 3.94in(100 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Height | 81in(2,057 mm) |
|---|---|
| Operating weight | 4,900lb(2,223 kg) |
Capacities
| Cooling system | 3.45gal(13.06 L) |
|---|
Closest alternatives
30 compared with the nearest models by horsepower
Among crawler tractors, the Oliver OC-3 and the Kubota KL28R-PC are closest to the Unimog 30 in rated horsepower. The Oliver OC-3 makes 1 hp less and weighs 1,040 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Kubota KL28R-PC is rated 2.4 hp lower and weighs 1,480 lb less, carrying 124 lb per horsepower against 163 lb. Of the 3 models, the 30 has the highest weight per horsepower at 163 lb per hp.
| Spec | Unimog 30 | Oliver OC-3 | Kubota KL28R-PC |
|---|---|---|---|
| Engine power | 30 hp22.4 kW | 29 hp21.6 kW | 27.6 hp20.6 kW |
| Operating weight | 4,900 lb2,223 kg | 3,860 lb1,751 kg | 3,417 lb1,550 kg |
| Weight per hp | 163 lb/hp99 kg/kW | 133 lb/hp81 kg/kW | 124 lb/hp75 kg/kW |
| Displacement | 107.8 ci1.77 L | 133 ci2.18 L | 100.5 ci1.65 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Manual | Gear type | Power shift |
| Drive | 4WD | Track | Track |
| Years built | - | 1951-1957 | 2012-2015 |
Calculators
Calculators for the 30
PTO power
About 25 to 27 PTO hp
Estimated from the 30 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 30 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
190 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
30 hp is 22.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Unimog 30
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Mercedes-Benz OM636Amazon
Fits the Mercedes-Benz OM636 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Mercedes-Benz OM636Amazon
Fits the Mercedes-Benz OM636 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Mercedes-Benz OM636Amazon
Fits the Mercedes-Benz OM636 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Mercedes-Benz OM636Amazon
Fits the Mercedes-Benz OM636 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Unimog 30 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Unimog 30 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Unimog 30 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
30 vs. Crawler median
Unimog 30 compared with other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 30 hp | 200 hp | -85% | 14th |
| Engine Displacement | 108 ci | 468 ci | -77% | 12th |
| Cylinders | 4 | 6 | -33% | 33rd |
| Forward Gears | 8 | 10 | -20% | 41st |
| Operating Weight | 4,900 lb | 23,320 lb | -79% | 16th |
| Height | 81 in | 90.6 in | -11% | 40th |
Medians and percentiles are calculated from the crawler tractors in the database that have a recorded value for each specification (sample size 134–192 models).
Other manufacturers
Models with similar horsepower

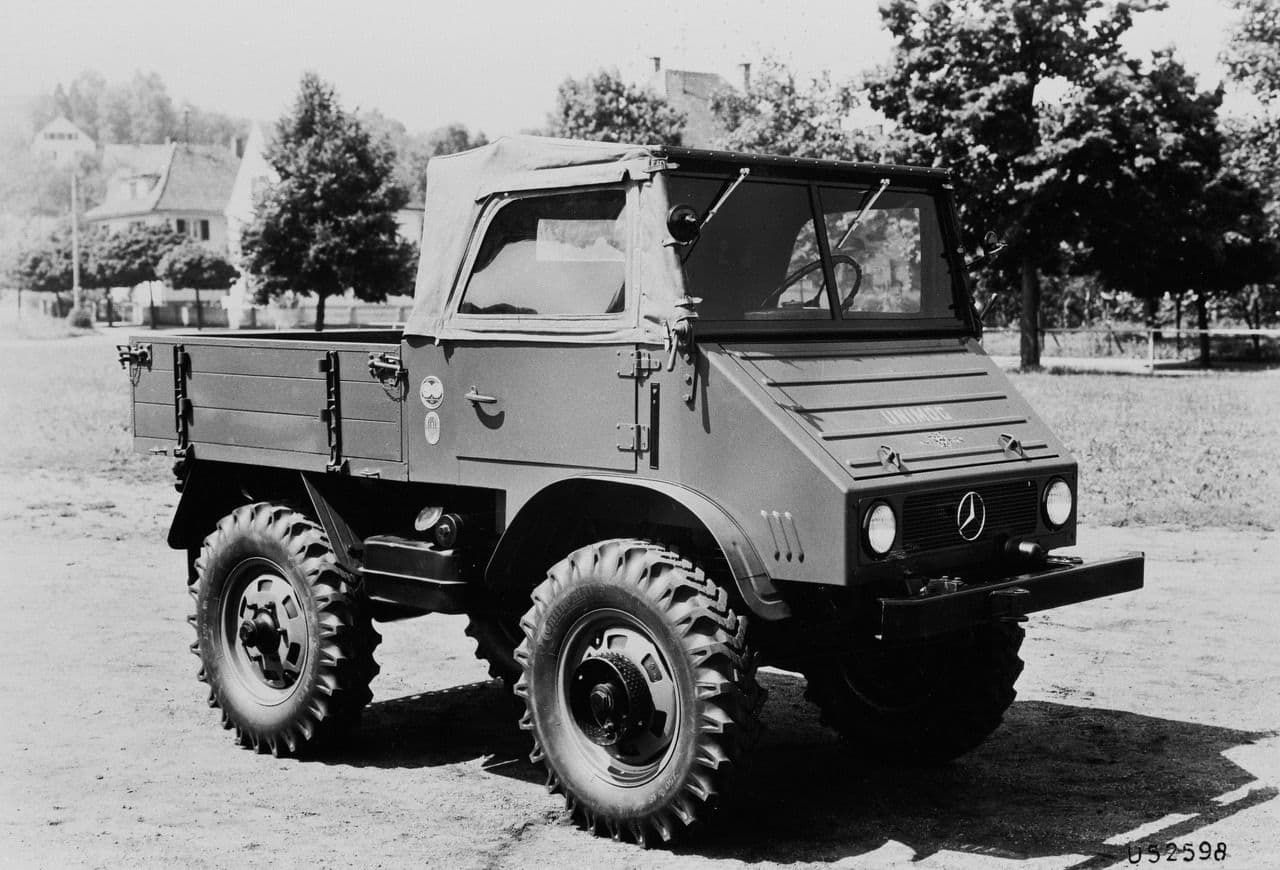

Gallery
Unimog 30 photos





FAQ
Frequently asked questions
How powerful is the Unimog 30?
The Unimog 30 has an engine power output of 30 hp. It is powered by a 4-cylinder engine displacing 107.8 ci.
What hitch category is the Unimog 30?
The Unimog 30 uses a Category III hitch.
What is the working weight of the Unimog 30?
The operating weight of the Unimog 30 is approximately 4,900 lb.
What type of transmission does the Unimog 30 have?
The Unimog 30 uses a Manual transmission offering 8 forward gears.
What routine service does the Unimog 30 need?
Regular maintenance for the Unimog 30 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
