Valpadana 1540
The Valpadana 1540 is a compact but powerful 4WD tractor designed for versatile farm work. It features a 4x4 MFWD chassis, making it suitable for various terrains and tasks. The tractor is equipped with a Yanmar 3TNV88-KLAN engine, which is a 3-cylinder, liquid-cooled diesel engine. This engine produces 35.5 horsepower at 2800 RPM, providing ample power for most small to medium-sized farm operations. The tractor's transmission is a shuttle/creeper type with 16 forward and 16 reverse gears, offering excellent speed control and flexibility. Its compact size, measuring 130 inches long, 51 inches wide, and 83.1 inches tall, allows for easy maneuverability in tight spaces. The Valpadana 1540 weighs 3527 pounds, making it sturdy enough for tough jobs while still being light on the soil. It comes with a Category I hitch, suitable for attaching various implements. Additional features include a 67-inch wheelbase for stability, a dry engine air cleaner for better engine protection, and a peak torque of 80 lb-ft at 1200 RPM for strong pulling power.
ManufacturerValpadanaPower35.5 hpEngine3-cylTransshuttle/creeper
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 36hp
- Operating Weight
- 3,527 lb
- Transmission
- shuttle/creeper
At a glance
How the 1540 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
35.5 hp · 67th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 1540 ranks at the 67th percentile for engine power among recorded sub-compact tractors.
Overview
About the Valpadana 1540
The Valpadana 1540 is a compact but powerful 4WD tractor designed for versatile farm work. It features a 4x4 MFWD chassis, making it suitable for various terrains and tasks. The tractor is equipped with a Yanmar 3TNV88-KLAN engine, which is a 3-cylinder, liquid-cooled diesel engine. This engine produces 35.5 horsepower at 2800 RPM, providing ample power for most small to medium-sized farm operations. The tractor's transmission is a shuttle/creeper type with 16 forward and 16 reverse gears, offering excellent speed control and flexibility. Its compact size, measuring 130 inches long, 51 inches wide, and 83.1 inches tall, allows for easy maneuverability in tight spaces. The Valpadana 1540 weighs 3527 pounds, making it sturdy enough for tough jobs while still being light on the soil. It comes with a Category I hitch, suitable for attaching various implements. Additional features include a 67-inch wheelbase for stability, a dry engine air cleaner for better engine protection, and a peak torque of 80 lb-ft at 1200 RPM for strong pulling power.
Full specifications
Every recorded spec
General
| Manufacturer | Valpadana |
|---|---|
| Model | 1540 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,527lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNV88-KLAN |
| Power | 35.5hp |
| Cylinders | 3 |
| Displacement | 100.2ci |
| Bore | 3.47in |
| Stroke | 3.54in |
Transmission
| Type | shuttle/creeper |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 130in |
|---|---|
| Width | 51in |
| Height | 83.1in |
| Operating weight | 3,527lb |
Head to head
1540 vs. Sub-Compact median
How the Valpadana 1540 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 35.5 hp | 26.9 hp | +32% | 67th |
| Engine Displacement | 100 ci | 91.4 ci | +10% | 57th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 16 | 9 | +78% | 89th |
| Operating Weight | 3,527 lb | 2,700 lb | +31% | 66th |
| Length | 130 in | 113 in | +15% | 79th |
| Width | 51 in | 50.7 in | +1% | 51st |
| Height | 83.1 in | 78.4 in | +6% | 57th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Valpadana tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Valpadana 1640 | 37.5 hp | 3,461 lb | — | Compare → |
| Valpadana 1545 | 44 hp | 3,549 lb | — | Compare → |
| Valpadana 1645 | 44 hp | 3,483 lb | — | Compare → |
| Valpadana 1430 | 26.4 hp | 1,764 lb | — | Compare → |
| Valpadana 6550 | 46 hp | 3,902 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Antonio Carraro TTR 3800 | 36 hp | 2,150 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Barreiros R-350 S | 36 hp | — | — | Compare → |
Explore
Valpadana siblings
Explore
Similar-spec models
Gallery

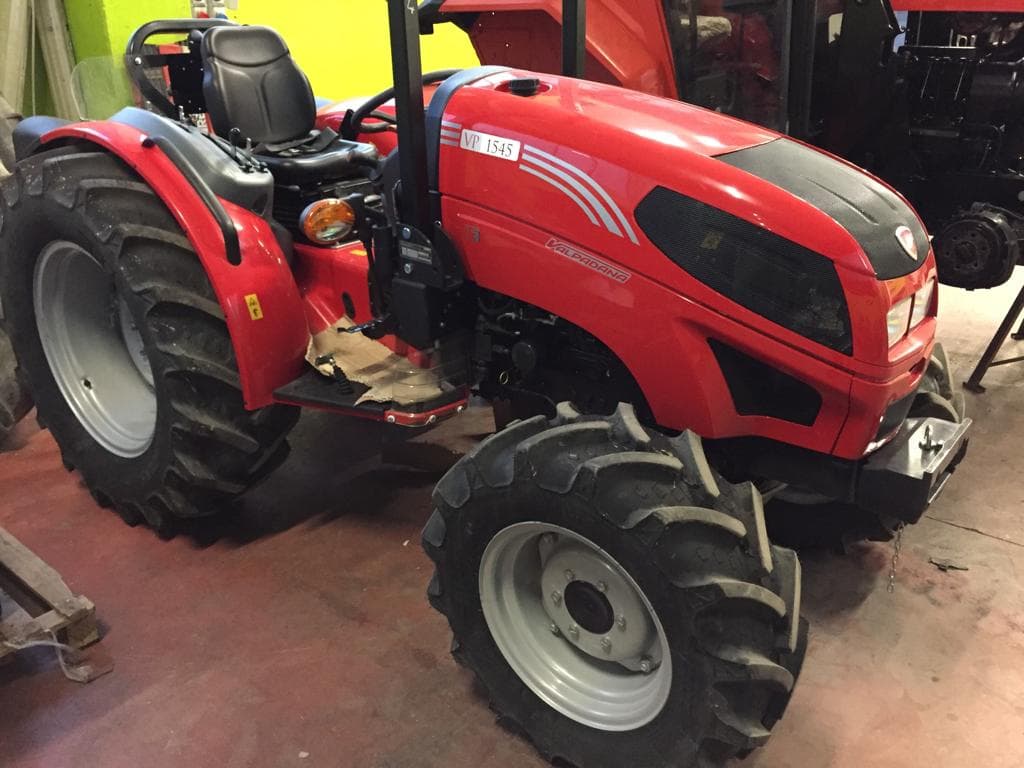

Valpadana 1540 photos
FAQ
Common questions
How powerful is the Valpadana 1540?
The Valpadana 1540 has an engine power output of 35.5 hp. It is powered by a 3-cylinder engine displacing 100.2 ci.
What hitch category is the Valpadana 1540?
The Valpadana 1540 uses a Category I hitch.
What is the working weight of the Valpadana 1540?
The operating weight of the Valpadana 1540 is approximately 3,527 lb.
What type of transmission does the Valpadana 1540 have?
The Valpadana 1540 uses a shuttle/creeper transmission offering 16 forward gears.
What routine service does the Valpadana 1540 need?
Regular maintenance for the Valpadana 1540 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
