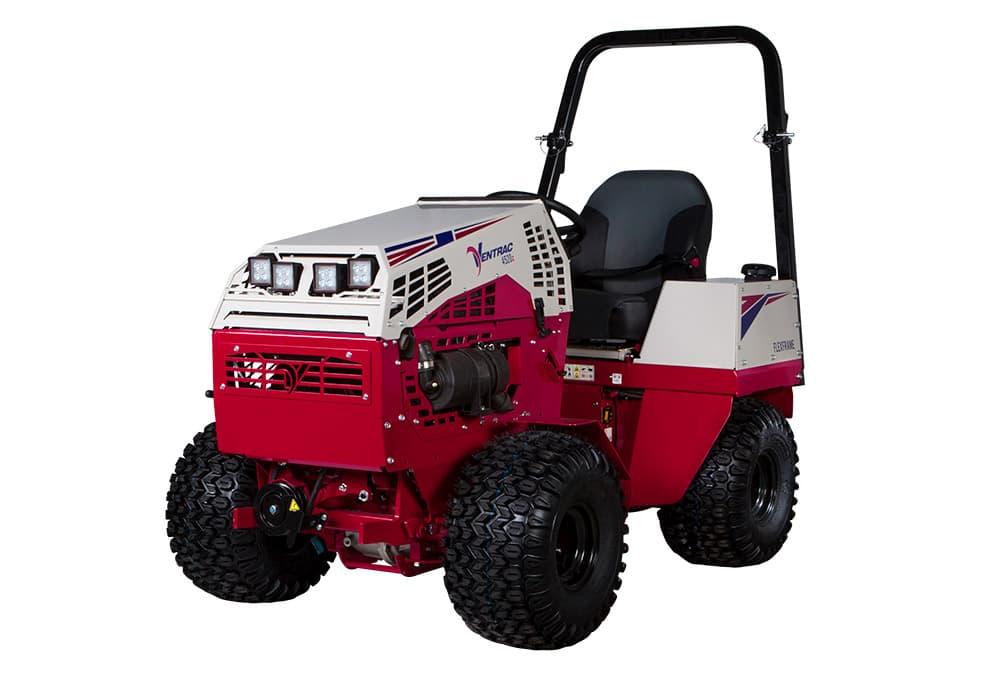

Ventrac 4520P

Last Updated: September 2024

Overview

The Ventrac 4520P is a powerful lawn and garden tractor designed for tough jobs. It has a 4x4 articulated chassis, which means it can turn easily and work well on uneven ground. The tractor uses a hydrostatic transmission, allowing for smooth speed changes without shifting gears.

Under the hood, the 4520P boasts a Kawasaki FD851D DFI engine. This liquid-cooled, V-Twin engine runs on gasoline and uses digital fuel injection for better performance. With 31 horsepower, it's one of the most powerful tractors in its class. The engine's size and power are both very high compared to other similar tractors. Despite its strength, the 4520P is compact, measuring 81.5 inches long, 48.5 inches wide, and 68 inches tall. It weighs 1,575 pounds, which is above average for its type, giving it good stability.

The Ventrac 4520P comes with special features like the Ventrac Mount System for attaching tools. It also has a Category 3 hitch, making it compatible with many implements. The tractor starts easily with an electric starter. With its mix of power, size, and features, the Ventrac 4520P is a versatile machine for various lawn and garden tasks.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 31 hp (23.1 kW)

Transmission: hydrostatic

Drive Type: 4WD

Operating Weight: 1575 lb (714 kg)

Fuel Type: gasoline

Technical Specifications

Engine

Manufacturer
Kawasaki
Model
FD851D DFI
Cooling Type
liquid-cooled
Cylinder Orientation
horizontal-shaft V-Twin
Fuel Type
gasoline
Induction Type
digital fuel injection
Cylinders
2
Displacement
51 ci (0.8 L)
Bore
3.23 in (82.0 mm)
Stroke
3.07 in (78.0 mm)
Power Output
31 hp (23.1 kW)

Transmission

Type
hydrostatic
Forward Gears
infinite (2-range)
Reverse Gears
infinite (2-range)

Drivetrain

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
