UtilityPerformance profile
Versatile 1156
The Versatile 1156 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated frame and four-wheel drive, making it great for working in rough fields. The tractor is powered by a Cummins KTA 1150-C diesel engine with 6 cylinders. This engine is very strong, producing 470 horsepower at 2100 RPM. It also has a turbocharger and aftercooler to boost its power. This tractor is big and heavy, weighing 25,500 pounds. It has a 12-speed transmission with 8 forward gears and 4 reverse gears. The Versatile 1156 uses hydrostatic power steering, which makes it easy to control despite its size. It has a closed center load-sensing hydraulic system and a Category 3 hitch for attaching implements. The tractor runs on large 32-inch agricultural tires, both in front and back. Compared to other tractors, the Versatile 1156 has a very high engine displacement and power output, and an above-average operating weight.
ManufacturerVersatilePower470 hpEngine6-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 470hp
- Operating Weight
- 25,500 lb
At a glance
How the 1156 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
470 hp · 99th
This model
9
Median 55 hp
177
470
This modelUtility tractorsMediann = 5,383
The 1156 ranks at the 99th percentile for engine power among recorded utility tractors.
Overview
About the Versatile 1156
The Versatile 1156 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated frame and four-wheel drive, making it great for working in rough fields. The tractor is powered by a Cummins KTA 1150-C diesel engine with 6 cylinders. This engine is very strong, producing 470 horsepower at 2100 RPM. It also has a turbocharger and aftercooler to boost its power. This tractor is big and heavy, weighing 25,500 pounds. It has a 12-speed transmission with 8 forward gears and 4 reverse gears. The Versatile 1156 uses hydrostatic power steering, which makes it easy to control despite its size. It has a closed center load-sensing hydraulic system and a Category 3 hitch for attaching implements. The tractor runs on large 32-inch agricultural tires, both in front and back. Compared to other tractors, the Versatile 1156 has a very high engine displacement and power output, and an above-average operating weight.
Full specifications
Every recorded spec
General
| Manufacturer | Versatile |
|---|---|
| Model | 1156 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 25,500lb |
Engine
| Make | Cummins |
|---|---|
| Model | KTA 1150-C |
| Power | 470hp |
| Cylinders | 6 |
| Displacement | 1,150ci |
| Bore | 6.25in |
| Stroke | 6.25in |
Transmission
| Forward gears | 8 |
|---|---|
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | hydrostatic power |
Hydraulics
| Type | closed center load-sensing |
|---|
Dimensions
| Length | 271in |
|---|---|
| Operating weight | 25,500lb |
Capacities
| Cooling system | 21.25gal |
|---|
Head to head
1156 vs. Utility median
How the Versatile 1156 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 470 hp | 55 hp | +755% | 99th |
| Engine Displacement | 1,150 ci | 183 ci | +528% | 99th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 25,500 lb | 5,303 lb | +381% | 96th |
| Length | 271 in | 137 in | +98% | 98th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,659–5,720 models).
Compare to tractors with similar specs
Commonly compared Versatile tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Versatile 1150 | 470 hp | 22,000 lb | — | Compare → |
| Versatile 460 | 460 hp | 31,500 lb | — | Compare → |
| Versatile 485 | 485 hp | 48,499.5 lb | — | Compare → |
| Versatile 500 | 500 hp | 42,000 lb | — | Compare → |
| Versatile 435 | 435 hp | 42,000 lb | 2008–2011 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Big Bud 450 | 450 hp | 40,000 lb | — | Compare → |
| Big Bud 450/20 | 450 hp | 41,500 lb | — | Compare → |
| Big Bud 450/50 | 450 hp | 41,500 lb | — | Compare → |
| Big Bud KT400 | 450 hp | 40,000 lb | — | Compare → |
| Big Bud KT450 | 450 hp | 43,000 lb | — | Compare → |
Explore
Versatile siblings
Explore
Similar-spec models
Gallery

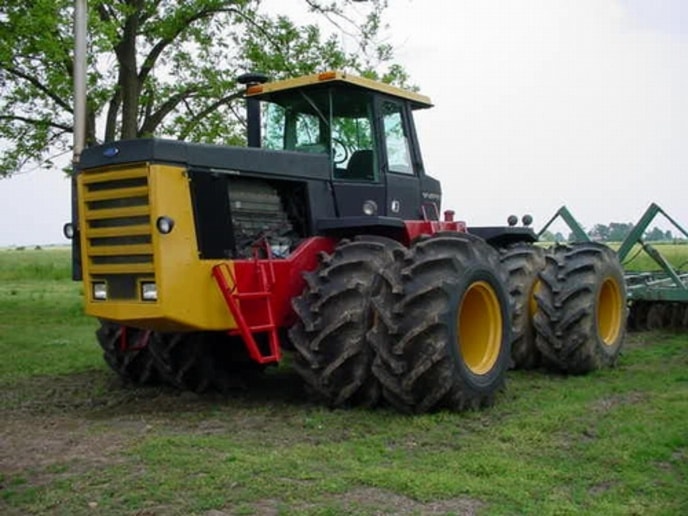

Versatile 1156 photos
FAQ
Common questions
How powerful is the Versatile 1156?
The Versatile 1156 has an engine power output of 470 hp. It is powered by a 6-cylinder engine displacing 1,150 ci.
What hitch category is the Versatile 1156?
The Versatile 1156 uses a Category Category 3 hitch.
What is the working weight of the Versatile 1156?
The operating weight of the Versatile 1156 is approximately 25,500 lb.
What type of hydraulic system does the Versatile 1156 use?
Hydraulics on the Versatile 1156 are closed center load-sensing.
What routine service does the Versatile 1156 need?
Regular maintenance for the Versatile 1156 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
