CrawlerPerformance profile
Versatile 570DT
The Versatile 570DT is a powerful crawler tractor built for tough jobs. It's an articulated tractor, which means it can bend in the middle to turn better. This tractor runs on tracks instead of wheels, helping it move well on different types of ground. The 570DT has a strong Cummins QSX15 engine with 6 cylinders. This engine gives the tractor 570 horsepower, which is a lot of power for big farm tasks. It can even reach up to 626 horsepower when needed. The engine is very large compared to other tractors, with a displacement of 912 cubic inches. The tractor weighs 58,850 pounds, making it one of the heaviest in its class. It has a special transmission with 16 forward gears and 4 reverse gears, allowing for smooth speed changes. This tractor is built to work hard in the fields. It has a strong hydraulic system that helps run attachments. The engine meets Tier IV emissions standards, which means it's designed to be better for the environment. With its high power and track system, the Versatile 570DT is great for farmers who need to work on large areas or tough terrain.
ManufacturerVersatilePower570 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Crawler
- Engine Power Output
- 570hp
- Operating Weight
- 58,850 lb
- Transmission
- Full power shift
At a glance
How the 570DT compares
vs. Crawler medianDistribution
Engine Power (hp)
Across all Crawler tractors
570 hp · 96th
This model
18
Median 200 hp
508
This modelCrawler tractorsMediann = 142
The 570DT ranks at the 96th percentile for engine power among recorded crawler tractors.
Overview
About the Versatile 570DT
The Versatile 570DT is a powerful crawler tractor built for tough jobs. It's an articulated tractor, which means it can bend in the middle to turn better. This tractor runs on tracks instead of wheels, helping it move well on different types of ground. The 570DT has a strong Cummins QSX15 engine with 6 cylinders. This engine gives the tractor 570 horsepower, which is a lot of power for big farm tasks. It can even reach up to 626 horsepower when needed. The engine is very large compared to other tractors, with a displacement of 912 cubic inches. The tractor weighs 58,850 pounds, making it one of the heaviest in its class. It has a special transmission with 16 forward gears and 4 reverse gears, allowing for smooth speed changes. This tractor is built to work hard in the fields. It has a strong hydraulic system that helps run attachments. The engine meets Tier IV emissions standards, which means it's designed to be better for the environment. With its high power and track system, the Versatile 570DT is great for farmers who need to work on large areas or tough terrain.
Full specifications
Every recorded spec
General
| Manufacturer | Versatile |
|---|---|
| Model | 570DT |
| Category | Crawler tractor |
| Type | Crawler |
| Operating weight | 58,850lb |
Engine
| Make | Cummins |
|---|---|
| Model | QSX15 |
| Power | 570hp |
| Cylinders | 6 |
| Displacement | 912ci |
| Bore | 5.39in |
| Stroke | 6.65in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | Crawler |
|---|---|
| Drive | Track |
Hydraulics
| Type | Closed center load sensing |
|---|
Dimensions
| Operating weight | 58,850lb |
|---|
Head to head
570DT vs. Crawler median
How the Versatile 570DT compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 570 hp | 200 hp | +185% | 96th |
| Engine Displacement | 912 ci | 468 ci | +95% | 91st |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 10 | +60% | 69th |
| Operating Weight | 58,850 lb | 23,320 lb | +152% | 97th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 142–192 models).
Compare to tractors with similar specs
Commonly compared Versatile tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Versatile 550DT | 550 hp | 58,850 lb | — | Compare → |
| Versatile 610DT | 605 hp | 58,850 lb | — | Compare → |
| Versatile 520DT | 520 hp | 58,850 lb | — | Compare → |
| Versatile 500DT | 500 hp | 58,850 lb | — | Compare → |
| Versatile 450DT | 450 hp | 58,850 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Steiger 580 | 580 hp | 48,147 lb | — | Compare → |
| CaseIH Steiger 580 Quadtrac | 580 hp | 48,780 lb | — | Compare → |
| CaseIH Steiger 550 | 550 hp | 44,046 lb | — | Compare → |
| CaseIH Steiger 550 Quadtrac | 550 hp | 53,804 lb | — | Compare → |
| Baldwin DP600 | 600 hp | — | — | Compare → |
Explore
Versatile siblings
Explore
Similar-spec models
Gallery

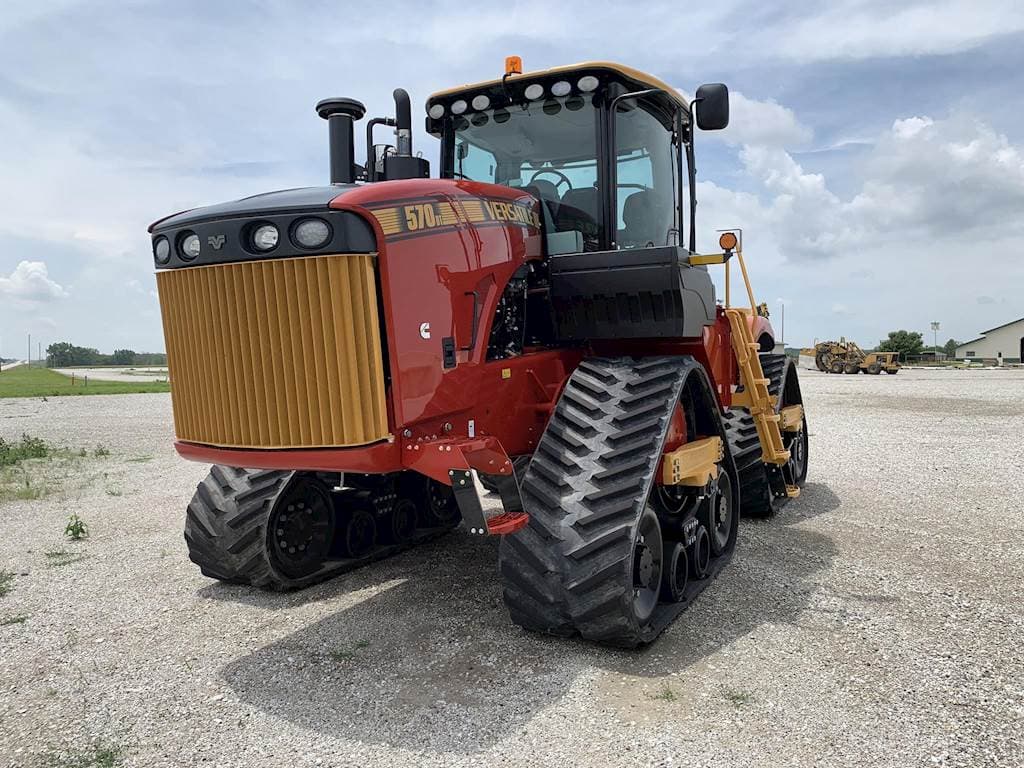

Versatile 570DT photos
FAQ
Common questions
What is the engine power output of the Versatile 570DT?
Rated engine output for the Versatile 570DT is 570 hp, delivered by a 6-cylinder engine. The engine displaces 912 ci.
Which transmission does the Versatile 570DT use?
The Versatile 570DT is equipped with a Full power shift transmission with 16 forward gears.
What hydraulics does the Versatile 570DT have?
The Versatile 570DT uses a Closed center load sensing hydraulic system.
What is the operating weight of the Versatile 570DT?
In working trim, the Versatile 570DT comes in at roughly 58,850 lb.
How do I maintain a Versatile 570DT?
Routine service for the Versatile 570DT covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
