Lawn and GardenPerformance profile
Wheel Horse 702
The Wheel Horse 702 is a compact lawn and garden tractor built for small-scale yard work. It has a 2WD chassis with power steering, making it easy to maneuver around gardens and lawns. The tractor uses a simple gear transmission with 3 forward speeds and 1 reverse, giving you control over your mowing pace. Under the hood, you'll find a Kohler K161S engine. This small, air-cooled gasoline engine has just one cylinder but packs 7 horsepower. It's a basic engine with natural aspiration, designed for light duties. The 702 is quite compact, measuring about 60 inches long, 30 inches wide, and 35 inches tall. It's also lightweight at 414 pounds, making it easy to store and transport. This Wheel Horse model, which started production in 1962, features an open operator station and an electric starter for quick and easy operation.
ManufacturerWheel HorsePower7 hpEngine1-cylTransGear
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 7hp
- Operating Weight
- 414 lb
- Transmission
- Gear
At a glance
How the 702 compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
7 hp · 2nd
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The 702 ranks at the 2nd percentile for engine power among recorded lawn and garden tractors.
Overview
About the Wheel Horse 702
The Wheel Horse 702 is a compact lawn and garden tractor built for small-scale yard work. It has a 2WD chassis with power steering, making it easy to maneuver around gardens and lawns. The tractor uses a simple gear transmission with 3 forward speeds and 1 reverse, giving you control over your mowing pace. Under the hood, you'll find a Kohler K161S engine. This small, air-cooled gasoline engine has just one cylinder but packs 7 horsepower. It's a basic engine with natural aspiration, designed for light duties. The 702 is quite compact, measuring about 60 inches long, 30 inches wide, and 35 inches tall. It's also lightweight at 414 pounds, making it easy to store and transport. This Wheel Horse model, which started production in 1962, features an open operator station and an electric starter for quick and easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | Wheel Horse |
|---|---|
| Model | 702 |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 1962+ |
| Operating weight | 414lb |
Engine
| Make | Kohler |
|---|---|
| Model | K161S |
| Power | 7hp |
| Cylinders | 1 |
| Displacement | 16.9ci |
| Bore | 2.95in |
| Stroke | 2.52in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Band |
| Cab | Open |
Dimensions
| Length | 59.8in |
|---|---|
| Width | 29.9in |
| Height | 35.4in |
| Operating weight | 414lb |
Head to head
702 vs. Lawn and Garden median
How the Wheel Horse 702 compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 7 hp | 18 hp | -61% | 2nd |
| Engine Displacement | 16.9 ci | 41.1 ci | -59% | 2nd |
| Cylinders | 1 | 2 | -50% | 17th |
| Forward Gears | 3 | 6 | -50% | 10th |
| Operating Weight | 414 lb | 738 lb | -44% | 6th |
| Length | 59.8 in | 71.7 in | -17% | 2nd |
| Width | 29.9 in | 43.3 in | -31% | 1st |
| Height | 35.4 in | 42.9 in | -17% | 1st |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 152–380 models).
Compare to tractors with similar specs
Commonly compared Wheel Horse tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Wheel Horse B-80 | 8 hp | 538 lb | 1974–1977 | Compare → |
| Wheel Horse C-81 | 8 hp | 540 lb | 1978–1979 | Compare → |
| Wheel Horse 310-8 | 10 hp | 527 lb | 1985–1993 | Compare → |
| Wheel Horse Raider 10 | 10 hp | 573 lb | 1970–1975 | Compare → |
| Wheel Horse RJ-35 Ride Away Jr | 3.5 hp | — | 1955–1957 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Cub Cadet 70 | 7 hp | — | 1963–1965 | Compare → |
| Cub Cadet 71 | 7 hp | 728 lb | 1965–1967 | Compare → |
| Cub Cadet 72 | 7 hp | 553 lb | — | Compare → |
| Cub Cadet 73 | 7 hp | 569 lb | 1969–1971 | Compare → |
| Cub Cadet 800 | 8 hp | 584 lb | 1974–1975 | Compare → |
Explore
Wheel Horse siblings
Explore
Similar-spec models
Gallery

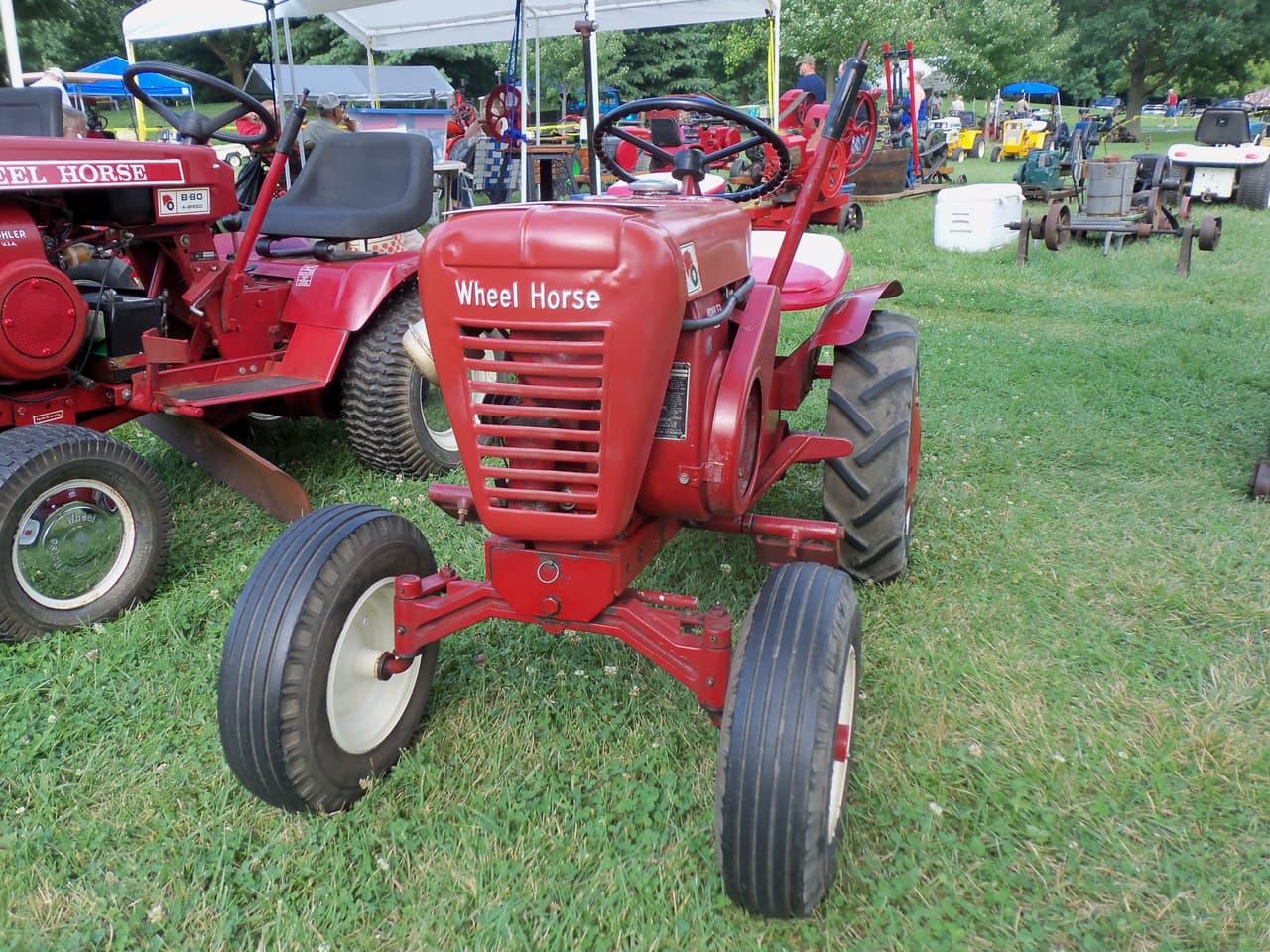

Wheel Horse 702 photos
FAQ
Common questions
When was the Wheel Horse 702 in production?
The Wheel Horse 702 was introduced in 1962.
How much horsepower does the Wheel Horse 702 have?
The Wheel Horse 702 produces 7 hp from its 1-cylinder engine. Engine displacement is 16.9 ci.
How much does the Wheel Horse 702 weigh?
The Wheel Horse 702 weighs about 414 lb in operating condition.
What transmission is in the Wheel Horse 702?
Transmission on the Wheel Horse 702 is Gear, with 3 forward speeds.
What maintenance does the Wheel Horse 702 require?
Like any tractor, the Wheel Horse 702 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
