Yanmar AF118
The Yanmar AF118 is a compact 4WD tractor made from 2002 to 2005. It has a powerful 18 hp diesel engine with three cylinders. This engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The tractor has a manual transmission with 8 forward and 8 reverse gears, giving the driver good control over speed and power. This tractor is built for farm work, with agricultural tires on both the front and back. It's small but strong, measuring 103.5 inches long, 40.6 inches wide, and 74.4 inches tall. The AF118 weighs 1466 pounds, making it sturdy enough for tough jobs but not too heavy. It has power steering to make turning easier, and an electric starter for quick and easy engine starts. The front tires are 6.00-12 in size, while the rear tires are larger at 8.30-20, providing good traction in the field.

Key specifications
- Category
- Sub-Compact
- Engine power
- 18hp
- Operating weight
- 1,466 lb
- Transmission
- Manual
Category comparison
AF118 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
This model
The AF118 ranks at the 18th percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar AF118
The Yanmar AF118 is a compact 4WD tractor made from 2002 to 2005. It has a powerful 18 hp diesel engine with three cylinders. This engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The tractor has a manual transmission with 8 forward and 8 reverse gears, giving the driver good control over speed and power. This tractor is built for farm work, with agricultural tires on both the front and back. It's small but strong, measuring 103.5 inches long, 40.6 inches wide, and 74.4 inches tall. The AF118 weighs 1466 pounds, making it sturdy enough for tough jobs but not too heavy. It has power steering to make turning easier, and an electric starter for quick and easy engine starts. The front tires are 6.00-12 in size, while the rear tires are larger at 8.30-20, providing good traction in the field.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | AF118 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2002–2005 |
| Operating weight | 1,466lb(665 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNE74 |
| Power | 18hp(13.42 kW) |
| Cylinders | 3 |
| Displacement | 61.4ci(1.01 L) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 103.5in(2,629 mm) |
|---|---|
| Width | 40.6in(1,031 mm) |
| Height | 74.4in(1,890 mm) |
| Operating weight | 1,466lb(665 kg) |
Closest alternatives
AF118 compared with the nearest models by horsepower
Among sub-compact tractors, the Yanmar AC-18 and the Yanmar YM1820 are closest to the Yanmar AF118 in rated horsepower. The Yanmar AC-18 matches it on rated power at almost the same operating weight. The Yanmar YM1820 matches it on rated power and weighs 850 lb more, so it carries more weight per horsepower, which helps traction in draft work. It entered production in 1982, 20 years before the AF118.
| Spec | Yanmar AF118 | Yanmar AC-18 | Yanmar YM1820 |
|---|---|---|---|
| Engine power | 18 hp13.4 kW | 18 hp13.4 kW | 18 hp13.4 kW |
| Operating weight | 1,466 lb665 kg | 1,422 lb645 kg | 2,314 lb1,050 kg |
| Weight per hp | 81 lb/hp50 kg/kW | 79 lb/hp48 kg/kW | 129 lb/hp78 kg/kW |
| Displacement | 61.4 ci1.01 L | 61.4 ci1.01 L | 78.1 ci1.28 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Manual | Hydrostatic | Partial power shift, Creeper |
| Years built | 2002-2005 | 2002-2007 | 1982-1983 |
Calculators
Calculators for the AF118
PTO power
About 15 to 16 PTO hp
Estimated from the 18 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 18 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
95 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
18 hp is 13.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Yanmar AF118
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 3TNE74Amazon
Fits the Yanmar 3TNE74 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 3TNE74Amazon
Fits the Yanmar 3TNE74 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 3TNE74Amazon
Fits the Yanmar 3TNE74 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 3TNE74Amazon
Fits the Yanmar 3TNE74 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Yanmar AF118 service and repair manualseManualOnline
Digital manuals. Built 2002 to 2005. Check the serial number range on the listing.
- Yanmar AF118 operator's manualAmazon
Printed and reprint manuals. Built 2002 to 2005. Check the serial number range on the listing.
- Yanmar AF118 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
AF118 vs. Sub-Compact median
Yanmar AF118 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 18 hp | 26.9 hp | -33% | 18th |
| Engine Displacement | 61.4 ci | 91.4 ci | -33% | 24th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 8 | 9 | -11% | 40th |
| Operating Weight | 1,466 lb | 2,700 lb | -46% | 21st |
| Length | 104 in | 113 in | -9% | 34th |
| Width | 40.6 in | 50.7 in | -20% | 12th |
| Height | 74.4 in | 78.4 in | -5% | 40th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery

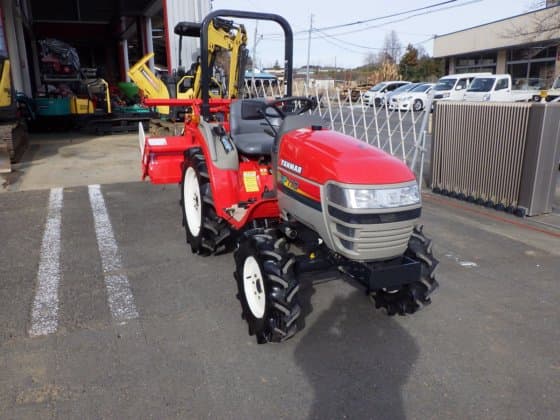

Yanmar AF118 photos




FAQ
Frequently asked questions
What years was the Yanmar AF118 manufactured?
Production of the Yanmar AF118 ran from 2002 through 2005.
What type of transmission does the Yanmar AF118 have?
The Yanmar AF118 uses a Manual transmission offering 8 forward gears.
How powerful is the Yanmar AF118?
The Yanmar AF118 has an engine power output of 18 hp. It is powered by a 3-cylinder engine displacing 61.4 ci.
What is the working weight of the Yanmar AF118?
The operating weight of the Yanmar AF118 is approximately 1,466 lb.
What routine service does the Yanmar AF118 need?
Regular maintenance for the Yanmar AF118 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
