Brand siblingSub-CompactPerformance profile
Yanmar AF220
The Yanmar AF220 is a compact 4WD tractor made from 2002 to 2004. It's built for small farms and tight spaces, measuring 105.9 inches long, 43.9 inches wide, and 75 inches tall. This tractor weighs 1896 pounds, making it easy to move around. Under the hood, the AF220 has a Yanmar 3TNE78 diesel engine. This engine has 3 cylinders and puts out 20 horsepower at 2500 RPM. It's liquid-cooled to keep it running smoothly. The tractor has a manual transmission with 8 forward and 8 reverse gears, giving drivers good control. It also has power steering to make turning easier. The AF220 uses ag tires, with 6-12 tires in front and 8.3-22 tires in back. It has a Category 0 hitch, which is good for light-duty work.
ManufacturerYanmarPower20 hpEngine3-cylTransManual with dry disc clutch
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 20hp
- Operating Weight
- 1,896 lb
- Transmission
- Manual with dry disc clutch
At a glance
How the AF220 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
20 hp · 25th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The AF220 ranks at the 25th percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar AF220
The Yanmar AF220 is a compact 4WD tractor made from 2002 to 2004. It's built for small farms and tight spaces, measuring 105.9 inches long, 43.9 inches wide, and 75 inches tall. This tractor weighs 1896 pounds, making it easy to move around. Under the hood, the AF220 has a Yanmar 3TNE78 diesel engine. This engine has 3 cylinders and puts out 20 horsepower at 2500 RPM. It's liquid-cooled to keep it running smoothly. The tractor has a manual transmission with 8 forward and 8 reverse gears, giving drivers good control. It also has power steering to make turning easier. The AF220 uses ag tires, with 6-12 tires in front and 8.3-22 tires in back. It has a Category 0 hitch, which is good for light-duty work.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | AF220 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2002–2004 |
| Operating weight | 1,896lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNE78 |
| Power | 20hp |
| Cylinders | 3 |
| Displacement | 73.5ci |
Transmission
| Type | Manual with dry disc clutch |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 105.9in |
|---|---|
| Width | 43.9in |
| Height | 75in |
| Operating weight | 1,896lb |
Tires
| Rear | 8.3-22 |
|---|
Head to head
AF220 vs. Sub-Compact median
How the Yanmar AF220 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 20 hp | 26.9 hp | -26% | 25th |
| Engine Displacement | 73.5 ci | 91.4 ci | -20% | 35th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 8 | 9 | -11% | 40th |
| Operating Weight | 1,896 lb | 2,700 lb | -30% | 34th |
| Length | 106 in | 113 in | -7% | 39th |
| Width | 43.9 in | 50.7 in | -13% | 23rd |
| Height | 75 in | 78.4 in | -4% | 41st |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar AF120 | 20 hp | 1,488 lb | 2002–2005 | Compare → |
| Yanmar F20 | 20 hp | 2,416 lb | — | Compare → |
| Yanmar FX20 | 20 hp | 2,438 lb | — | Compare → |
| Yanmar YM2002 | 20 hp | 2,314 lb | 1982–1983 | Compare → |
| Yanmar AC-21 | 20.5 hp | 1,830 lb | 2004–2007 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK2040 | 20 hp | 2,470 lb | — | Compare → |
| Ariens GT20 | 20 hp | 959 lb | 1988–1995 | Compare → |
| Allis Chalmers 620 | 19.5 hp | 1,499 lb | 1973–1975 | Compare → |
| Allis Chalmers 720 | 19.5 hp | 1,299 lb | 1975–1983 | Compare → |
| Bolens HT20 | 19.5 hp | 1,091 lb | 1973–1978 | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

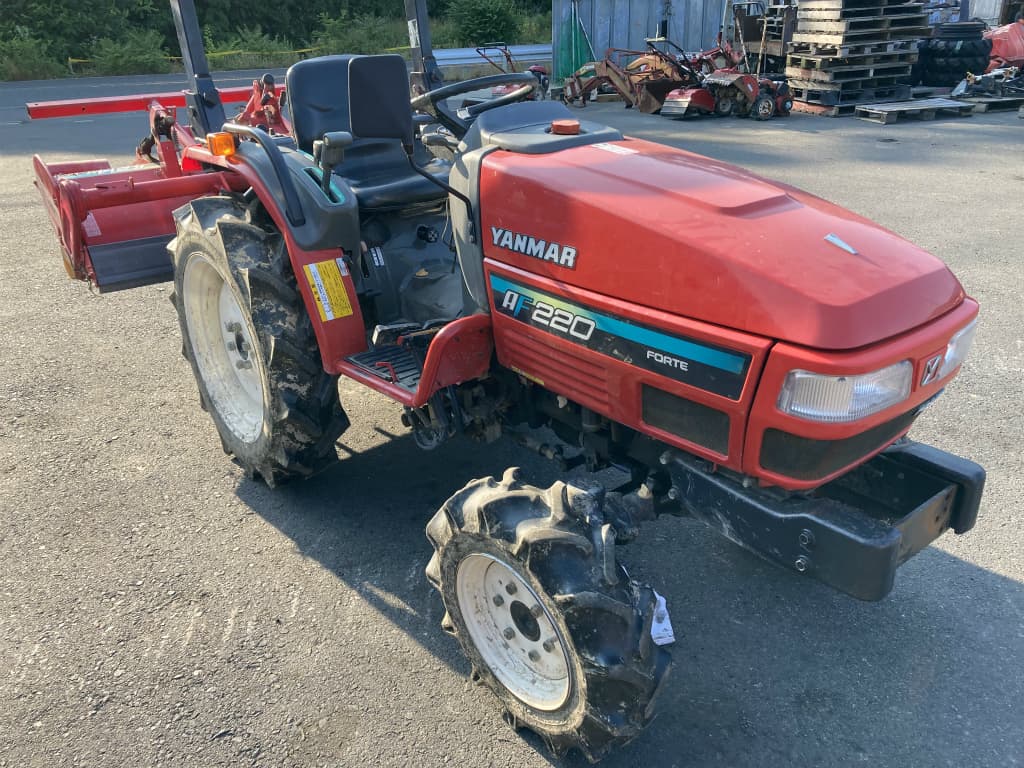

Yanmar AF220 photos
FAQ
Common questions
What years was the Yanmar AF220 manufactured?
Production of the Yanmar AF220 ran from 2002 through 2004.
How powerful is the Yanmar AF220?
The Yanmar AF220 has an engine power output of 20 hp. It is powered by a 3-cylinder engine displacing 73.5 ci.
What is the working weight of the Yanmar AF220?
The operating weight of the Yanmar AF220 is approximately 1,896 lb.
What type of transmission does the Yanmar AF220 have?
The Yanmar AF220 uses a Manual with dry disc clutch transmission offering 8 forward gears.
What are the factory tire sizes for the Yanmar AF220?
The Yanmar AF220 comes with 8.3-22 rear tires.
What three-point hitch category does the Yanmar AF220 use?
The Yanmar AF220 has a Category Category 3 three-point hitch.
What routine service does the Yanmar AF220 need?
Regular maintenance for the Yanmar AF220 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
