UtilityPerformance profile

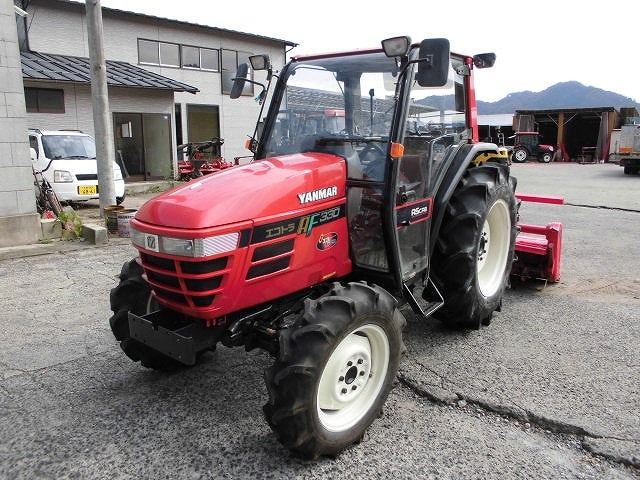

Yanmar AF330
The Yanmar AF330 is a compact utility tractor built from 2002 to 2005. It's a 4-wheel drive machine with power steering, making it easy to handle in tight spaces. This tractor has a 16-speed power shuttle transmission, giving the driver lots of options for different tasks. Under the hood, the AF330 has a Yanmar 3TNE84 diesel engine. It's a 3-cylinder engine that's liquid-cooled and uses direct injection. The engine puts out 30 horsepower, which is below average for tractors but good for its size. It has a displacement of 91.3 cubic inches, which is quite small compared to other tractors. The tractor weighs 2,833 pounds, making it lightweight and easy to move around. It's 116 inches long, 54.5 inches wide, and 77.6 inches tall, so it can fit in most barns and sheds. The AF330 has a Category I hitch at the back for attaching tools and implements.
ManufacturerYanmarPower30 hpEngine3-cylTransPower Shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 30hp
- Operating Weight
- 2,833 lb
- Transmission
- Power Shuttle
At a glance
How the AF330 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
30 hp · 22nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The AF330 ranks at the 22nd percentile for engine power among recorded utility tractors.
Overview
About the Yanmar AF330
The Yanmar AF330 is a compact utility tractor built from 2002 to 2005. It's a 4-wheel drive machine with power steering, making it easy to handle in tight spaces. This tractor has a 16-speed power shuttle transmission, giving the driver lots of options for different tasks. Under the hood, the AF330 has a Yanmar 3TNE84 diesel engine. It's a 3-cylinder engine that's liquid-cooled and uses direct injection. The engine puts out 30 horsepower, which is below average for tractors but good for its size. It has a displacement of 91.3 cubic inches, which is quite small compared to other tractors. The tractor weighs 2,833 pounds, making it lightweight and easy to move around. It's 116 inches long, 54.5 inches wide, and 77.6 inches tall, so it can fit in most barns and sheds. The AF330 has a Category I hitch at the back for attaching tools and implements.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | AF330 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2002–2005 |
| Operating weight | 2,833lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNE84 |
| Power | 30hp |
| Cylinders | 3 |
| Displacement | 91.3ci |
Transmission
| Type | Power Shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 116in |
|---|---|
| Width | 54.5in |
| Height | 77.6in |
| Operating weight | 2,833lb |
Head to head
AF330 vs. Utility median
How the Yanmar AF330 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 30 hp | 55 hp | -45% | 22nd |
| Engine Displacement | 91.3 ci | 183 ci | -50% | 17th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 2,833 lb | 5,303 lb | -47% | 21st |
| Length | 116 in | 137 in | -15% | 22nd |
| Width | 54.5 in | 66 in | -17% | 26th |
| Height | 77.6 in | 94.1 in | -18% | 24th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar EF312T | 30 hp | 2,028 lb | 2007–2017 | Compare → |
| Yanmar FX305 | 30 hp | — | 1987–1992 | Compare → |
| Yanmar YM3000 | 30 hp | 2,557 lb | — | Compare → |
| Yanmar FV-310 | 30.1 hp | — | 1991–1998 | Compare → |
| Yanmar EF330 | 29.6 hp | 3,230 lb | 2002–2004 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST30 | 30.3 hp | 2,594 lb | — | Compare → |
| Allis Chalmers UC | 30.93 hp | 5,710 lb | — | Compare → |
| Allis Chalmers 5030 | 31 hp | 2,530 lb | 1979–1985 | Compare → |
| Allis Chalmers D12 | 31 hp | 2,800 lb | 1959–1968 | Compare → |
| Antonio Carraro Tigre 4000 | 31 hp | — | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery
Yanmar AF330 photos
FAQ
Common questions
When was the Yanmar AF330 made?
The Yanmar AF330 was manufactured from 2002 to 2005.
Which transmission does the Yanmar AF330 use?
The Yanmar AF330 is equipped with a Power Shuttle transmission with 16 forward gears.
What three-point hitch category does the Yanmar AF330 use?
The Yanmar AF330 has a Category Category 3 three-point hitch.
What is the engine power output of the Yanmar AF330?
Rated engine output for the Yanmar AF330 is 30 hp, delivered by a 3-cylinder engine. The engine displaces 91.3 ci.
What is the operating weight of the Yanmar AF330?
In working trim, the Yanmar AF330 comes in at roughly 2,833 lb.
How do I maintain a Yanmar AF330?
Routine service for the Yanmar AF330 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
