Sub-CompactPerformance profile
Yanmar FX255
The Yanmar FX255 is a powerful and versatile 4WD tractor designed for various farming tasks. It features a Yanmar 3TNB84 engine, which is a 3-cylinder, liquid-cooled diesel engine. This engine produces 24.7 hp at 2500 rpm, making it suitable for small to medium-sized farms. The tractor's compact size, measuring 111.8 inches long, 52 inches wide, and 59.1 inches tall, allows it to maneuver easily in tight spaces. One of the standout features of the FX255 is its transmission system. It offers a Partial Power Shift transmission with 18 forward and 6 reverse gears, including a creeper option. This gives farmers great flexibility in choosing the right speed for different jobs. The tractor is equipped with agricultural tires both front and rear, providing good traction in various field conditions. With a weight of 2370 lb, it offers a good balance between stability and soil compaction. The FX255 also comes with a Category 3 rear hitch, making it compatible with a wide range of implements. Additional features include a 12-volt electric starter and multiple ground clearance options depending on whether it's configured as 2WD or 4WD.
ManufacturerYanmarPower24.7 hpEngine3-cylTransPartial Power Shift, Creeper
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 25hp
- Operating Weight
- 2,370 lb
- Transmission
- Partial Power Shift, Creeper
At a glance
How the FX255 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
24.7 hp · 43rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The FX255 ranks at the 43rd percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar FX255
The Yanmar FX255 is a powerful and versatile 4WD tractor designed for various farming tasks. It features a Yanmar 3TNB84 engine, which is a 3-cylinder, liquid-cooled diesel engine. This engine produces 24.7 hp at 2500 rpm, making it suitable for small to medium-sized farms. The tractor's compact size, measuring 111.8 inches long, 52 inches wide, and 59.1 inches tall, allows it to maneuver easily in tight spaces. One of the standout features of the FX255 is its transmission system. It offers a Partial Power Shift transmission with 18 forward and 6 reverse gears, including a creeper option. This gives farmers great flexibility in choosing the right speed for different jobs. The tractor is equipped with agricultural tires both front and rear, providing good traction in various field conditions. With a weight of 2370 lb, it offers a good balance between stability and soil compaction. The FX255 also comes with a Category 3 rear hitch, making it compatible with a wide range of implements. Additional features include a 12-volt electric starter and multiple ground clearance options depending on whether it's configured as 2WD or 4WD.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | FX255 |
| Category | Sub-Compact tractor |
| Type | 4WD |
| Operating weight | 2,370lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNB84 |
| Power | 24.7hp |
| Cylinders | 3 |
| Displacement | 89.3ci |
| Bore | 3.31in |
| Stroke | 3.46in |
Transmission
| Type | Partial Power Shift, Creeper |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Drive | 4WD |
|---|
Dimensions
| Length | 111.8in |
|---|---|
| Width | 52in |
| Height | 59.1in |
| Operating weight | 2,370lb |
Head to head
FX255 vs. Sub-Compact median
How the Yanmar FX255 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24.7 hp | 26.9 hp | -8% | 43rd |
| Engine Displacement | 89.3 ci | 91.4 ci | -2% | 47th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 18 | 9 | +100% | 96th |
| Operating Weight | 2,370 lb | 2,700 lb | -12% | 43rd |
| Length | 112 in | 113 in | -1% | 47th |
| Width | 52 in | 50.7 in | +3% | 53rd |
| Height | 59.1 in | 78.4 in | -25% | 20th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar F255 | 24.7 hp | 2,183 lb | — | Compare → |
| Yanmar AF224 | 24 hp | 1,940 lb | 2002–2004 | Compare → |
| Yanmar F24 | 24 hp | 2,623 lb | — | Compare → |
| Yanmar FX24 | 24 hp | 2,623 lb | — | Compare → |
| Yanmar Sc2400 | 24 hp | 1,280 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Apollo 254 | 25 hp | — | — | Compare → |
| Belarus 254 | 25 hp | — | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

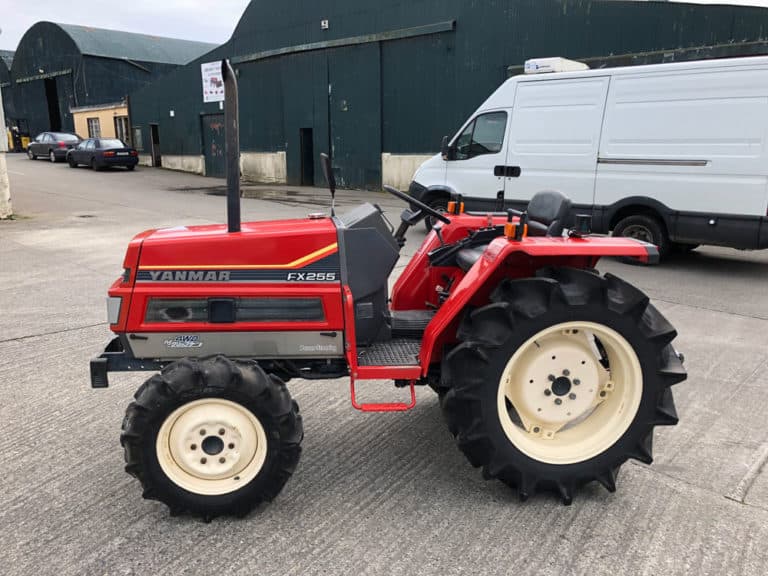

Yanmar FX255 photos
FAQ
Common questions
How much horsepower does the Yanmar FX255 have?
The Yanmar FX255 produces 24.7 hp from its 3-cylinder engine. Engine displacement is 89.3 ci.
How much does the Yanmar FX255 weigh?
The Yanmar FX255 weighs about 2,370 lb in operating condition.
What transmission is in the Yanmar FX255?
Transmission on the Yanmar FX255 is Partial Power Shift, Creeper, with 18 forward speeds.
What hitch category is the Yanmar FX255?
The Yanmar FX255 uses a Category Category 3 hitch.
What maintenance does the Yanmar FX255 require?
Like any tractor, the Yanmar FX255 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
