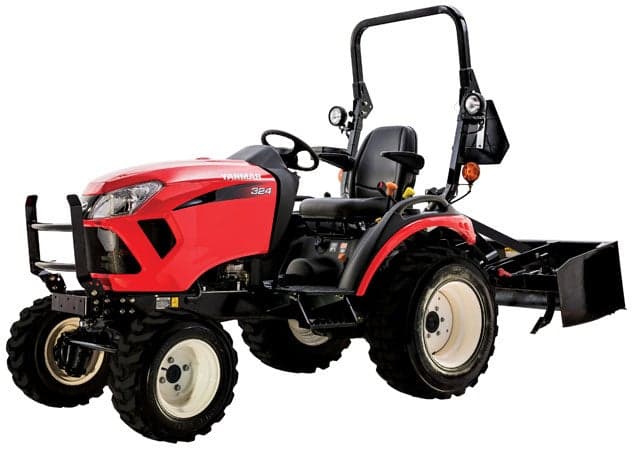

Yanmar 324
The Yanmar 324 is a small but capable utility tractor. It's part of the sub-compact category, which means it's great for tight spaces. This tractor has four-wheel drive, making it good for tough jobs on different types of ground. The Yanmar 324 has a diesel engine with three cylinders. It's not very powerful compared to other tractors, with only 23.9 horsepower. But it can run at very high speeds, up to 3200 rpm. The tractor is quite light, weighing just 1715 pounds. It has a hydrostatic transmission, which means it's easy to change speeds without shifting gears. The tractor also has a three-point hitch at the back for attaching tools. It has two PTO speeds, 540 rpm and 2000 rpm, which lets you use different kinds of equipment. The Yanmar 324 is built to be simple and useful, with features like wet disc brakes and an open center hydraulic system.

Key specifications
- Category
- Utility
- Engine power
- 24hp
- Operating weight
- 1,715 lb
- Transmission
- Hydrostatic
Category comparison
324 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 324 ranks at the 13th percentile for engine power among recorded utility tractors.
Overview
About the Yanmar 324
The Yanmar 324 is a small but capable utility tractor. It's part of the sub-compact category, which means it's great for tight spaces. This tractor has four-wheel drive, making it good for tough jobs on different types of ground. The Yanmar 324 has a diesel engine with three cylinders. It's not very powerful compared to other tractors, with only 23.9 horsepower. But it can run at very high speeds, up to 3200 rpm. The tractor is quite light, weighing just 1715 pounds. It has a hydrostatic transmission, which means it's easy to change speeds without shifting gears. The tractor also has a three-point hitch at the back for attaching tools. It has two PTO speeds, 540 rpm and 2000 rpm, which lets you use different kinds of equipment. The Yanmar 324 is built to be simple and useful, with features like wet disc brakes and an open center hydraulic system.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | 324 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2014+ |
| Operating weight | 1,715lb(777.9 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNV80F |
| Power | 23.9hp(17.82 kW) |
| Cylinders | 3 |
| Displacement | 77.2ci(1.27 L) |
| Bore | 3.15in(80.01 mm) |
| Stroke | 3.31in(84.07 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
| Brakes | Wet disc |
| Cab | Two-post foldable ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 105.5in(2,680 mm) |
|---|---|
| Width | 54.3in(1,379 mm) |
| Height | 85.8in(2,179 mm) |
| Operating weight | 1,715lb(777.9 kg) |
Capacities
| Cooling system | 0.75gal(2.84 L) |
|---|
Closest alternatives
324 compared with the nearest models by horsepower
Among utility tractors, the Yanmar 424 and the Yanmar 325 are closest to the Yanmar 324 in rated horsepower. The Yanmar 424 matches it on rated power and weighs 120 lb more. The Yanmar 325 matches it on rated power at almost the same operating weight. Of the 3 models, the 324 has the lowest weight per horsepower at 72 lb per hp.
| Spec | Yanmar 324 | Yanmar 424 | Yanmar 325 |
|---|---|---|---|
| Engine power | 23.9 hp17.8 kW | 23.9 hp17.8 kW | 23.9 hp17.8 kW |
| Operating weight | 1,715 lb778 kg | 1,830 lb830 kg | 1,715 lb778 kg |
| Weight per hp | 72 lb/hp44 kg/kW | 77 lb/hp47 kg/kW | 72 lb/hp44 kg/kW |
| Displacement | 77.2 ci1.27 L | 77.2 ci1.27 L | 77.2 ci1.27 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive | 4WD | MFWD | - |
| Years built | 2014+ | 2014+ | - |
Calculators
Calculators for the 324
PTO power
About 20 to 22 PTO hp
Estimated from the 23.9 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 23.9 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
83 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
23.9 hp is 17.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Yanmar 324
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Yanmar 324 service and repair manualseManualOnline
Digital manuals. Built from 2014. Check the serial number range on the listing.
- Yanmar 324 operator's manualAmazon
Printed and reprint manuals. Built from 2014. Check the serial number range on the listing.
- Yanmar 324 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
324 vs. Utility median
Yanmar 324 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23.9 hp | 55 hp | -57% | 13th |
| Engine Displacement | 77.2 ci | 183 ci | -58% | 11th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 1,715 lb | 5,303 lb | -68% | 8th |
| Length | 106 in | 137 in | -23% | 12th |
| Width | 54.3 in | 66 in | -18% | 25th |
| Height | 85.8 in | 94.1 in | -9% | 34th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery
Yanmar 324 photos






FAQ
Frequently asked questions
What years was the Yanmar 324 manufactured?
Production of the Yanmar 324 began in 2014.
What is the working weight of the Yanmar 324?
The operating weight of the Yanmar 324 is approximately 1,715 lb.
What type of transmission does the Yanmar 324 have?
The Yanmar 324 uses a Hydrostatic transmission.
What hydraulics does the Yanmar 324 have?
The Yanmar 324 uses an Open center hydraulic system.
What three-point hitch category does the Yanmar 324 use?
The Yanmar 324 has a Category Category 3 three-point hitch.
How powerful is the Yanmar 324?
The Yanmar 324 has an engine power output of 23.9 hp. It is powered by a 3-cylinder engine displacing 77.2 ci.
What routine service does the Yanmar 324 need?
Regular maintenance for the Yanmar 324 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
