Yanmar YM2210
The Yanmar YM2210 is a small utility tractor that was made from 1977 to 1981. It has a 2WD chassis and is powered by a Yanmar 2T90 diesel engine. This engine has two cylinders and is liquid-cooled. It produces 21.7 hp, which is below average for tractors. The engine size is also smaller than most, but it runs at a very high speed of 2600 rpm. This tractor has a partial power shift transmission with 15 forward gears and 5 reverse gears. It's quite light, weighing only 2094 lb, which is below average for tractors. The YM2210 is compact, measuring 109.4 inches long, 45.7 inches wide, and 72.4 inches tall. It has an open operator station and uses an electric starter. The tractor is equipped with a Category I hitch and a 540 rpm PTO. It has agricultural tires on both front and rear, making it suitable for farm work.

Key specifications
- Category
- Utility
- Engine power
- 22hp
- Operating weight
- 2,094 lb
- Transmission
- Partial Power Shift
Category comparison
YM2210 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The YM2210 ranks at the 10th percentile for engine power among recorded utility tractors.
Overview
About the Yanmar YM2210
The Yanmar YM2210 is a small utility tractor that was made from 1977 to 1981. It has a 2WD chassis and is powered by a Yanmar 2T90 diesel engine. This engine has two cylinders and is liquid-cooled. It produces 21.7 hp, which is below average for tractors. The engine size is also smaller than most, but it runs at a very high speed of 2600 rpm. This tractor has a partial power shift transmission with 15 forward gears and 5 reverse gears. It's quite light, weighing only 2094 lb, which is below average for tractors. The YM2210 is compact, measuring 109.4 inches long, 45.7 inches wide, and 72.4 inches tall. It has an open operator station and uses an electric starter. The tractor is equipped with a Category I hitch and a 540 rpm PTO. It has agricultural tires on both front and rear, making it suitable for farm work.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | YM2210 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1977–1981 |
| Operating weight | 2,094lb(949.8 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 2T90 |
| Power | 21.7hp(16.18 kW) |
| Cylinders | 2 |
| Displacement | 69.9ci(1.15 L) |
| Bore | 3.54in(89.92 mm) |
| Stroke | 3.54in(89.92 mm) |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 15 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Cab | Open operator station |
Power take-off
| PTO speed | 540rpm |
|---|
Dimensions
| Length | 109.4in(2,779 mm) |
|---|---|
| Width | 45.7in(1,161 mm) |
| Height | 72.4in(1,839 mm) |
| Operating weight | 2,094lb(949.8 kg) |
Closest alternatives
YM2210 compared with the nearest models by horsepower
Among utility tractors, the Kubota FT220 and the Kubota KL225 are closest to the Yanmar YM2210 in rated horsepower. The Kubota FT220 matches it on rated power and weighs 90 lb less. It entered production in 2016, 39 years after the YM2210. The Kubota KL225 matches it on rated power. It entered production in 2008, 31 years after the YM2210.
| Spec | Yanmar YM2210 | Kubota FT220 | Kubota KL225 |
|---|---|---|---|
| Engine power | 21.7 hp16.2 kW | 21.7 hp16.2 kW | 21.7 hp16.2 kW |
| Operating weight | 2,094 lb950 kg | 2,006 lb910 kg | - |
| Weight per hp | 96 lb/hp59 kg/kW | 92 lb/hp56 kg/kW | - |
| Displacement | 69.9 ci1.15 L | 91.5 ci1.5 L | 91.5 ci1.5 L |
| Cylinders | 2 | 3 | 3 |
| Transmission | Partial Power Shift | Manual | - |
| Drive | 2WD | 4WD | 4WD |
| Years built | 1977-1981 | 2016+ | 2008-2009 |
Calculators
Calculators for the YM2210
PTO power
About 18 to 20 PTO hp
Estimated from the 21.7 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 21.7 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
112 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
21.7 hp is 16.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Yanmar YM2210
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 2T90Amazon
Fits the Yanmar 2T90 2-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 2T90Amazon
Fits the Yanmar 2T90 2-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 2T90Amazon
Fits the Yanmar 2T90 2-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 2T90Amazon
Fits the Yanmar 2T90 2-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Yanmar YM2210 service and repair manualseManualOnline
Digital manuals. Built 1977 to 1981. Check the serial number range on the listing.
- Yanmar YM2210 operator's manualAmazon
Printed and reprint manuals. Built 1977 to 1981. Check the serial number range on the listing.
- Yanmar YM2210 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
YM2210 vs. Utility median
Yanmar YM2210 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21.7 hp | 55 hp | -61% | 10th |
| Engine Displacement | 69.9 ci | 183 ci | -62% | 10th |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 15 | 12 | +25% | 64th |
| Operating Weight | 2,094 lb | 5,303 lb | -61% | 13th |
| Length | 109 in | 137 in | -20% | 15th |
| Width | 45.7 in | 66 in | -31% | 11th |
| Height | 72.4 in | 94.1 in | -23% | 18th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery

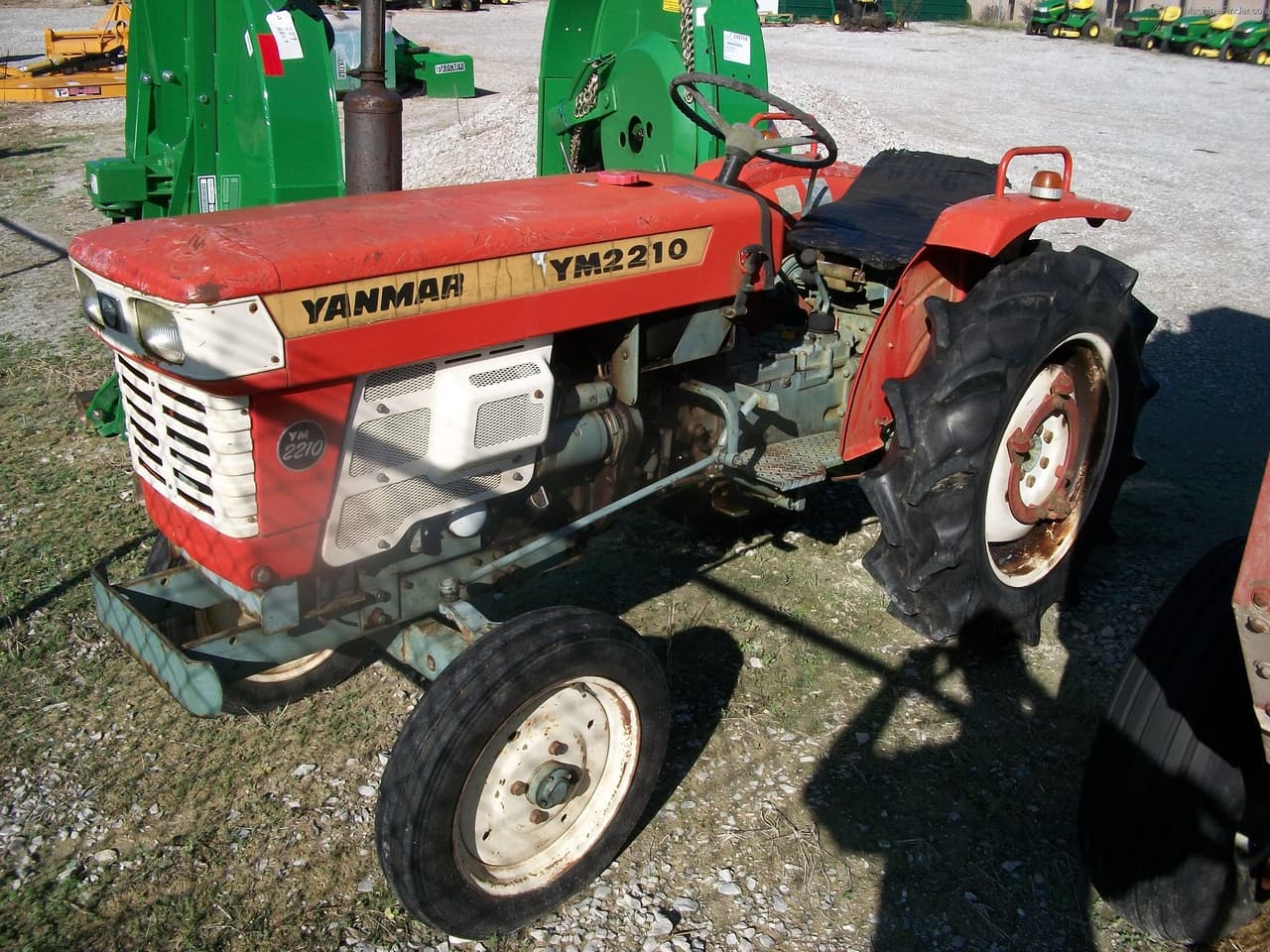

Yanmar YM2210 photos






FAQ
Frequently asked questions
When was the Yanmar YM2210 made?
The Yanmar YM2210 was manufactured from 1977 to 1981.
What is the engine power output of the Yanmar YM2210?
Rated engine output for the Yanmar YM2210 is 21.7 hp, delivered by a 2-cylinder engine. The engine displaces 69.9 ci.
What is the operating weight of the Yanmar YM2210?
The Yanmar YM2210 has an operating weight of about 2,094 lb.
Which transmission does the Yanmar YM2210 use?
The Yanmar YM2210 is equipped with a Partial Power Shift transmission with 15 forward gears.
What three-point hitch category does the Yanmar YM2210 use?
The Yanmar YM2210 has a Category I three-point hitch.
How do I maintain a Yanmar YM2210?
Routine service for the Yanmar YM2210 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
