Zetor 5245
The Zetor 5245 is a utility tractor built for everyday farm work. It has a 4x2 chassis and a gear transmission with 10 forward gears and 2 reverse gears. This tractor is powered by a Zetor 5201 engine, which is a 3-cylinder diesel engine with direct injection. The engine has an average displacement of 164.6 ci and produces 45.9 hp at 2200 rpm, which is also average for its class. This tractor is designed for versatility and practicality. It features a three-point hitch at the rear, compatible with category II and I implements. The power take-off (PTO) system offers two speed options: 540 rpm and 1000 rpm. The Zetor 5245 has agricultural tires, with 9.5-24 in the front and 14.9-28 in the rear. It measures 143.1 inches long, 72.8 inches wide, and 102.2 inches high. The tractor's operating weight of 6790 lb is above average, providing good stability for various tasks.
ManufacturerZetorPower45.9 hpEngine3-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 46hp
- Operating Weight
- 6,790 lb
- Transmission
- Gear
At a glance
How the 5245 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
45.9 hp · 40th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5245 ranks at the 40th percentile for engine power among recorded utility tractors.
Overview
About the Zetor 5245
The Zetor 5245 is a utility tractor built for everyday farm work. It has a 4x2 chassis and a gear transmission with 10 forward gears and 2 reverse gears. This tractor is powered by a Zetor 5201 engine, which is a 3-cylinder diesel engine with direct injection. The engine has an average displacement of 164.6 ci and produces 45.9 hp at 2200 rpm, which is also average for its class. This tractor is designed for versatility and practicality. It features a three-point hitch at the rear, compatible with category II and I implements. The power take-off (PTO) system offers two speed options: 540 rpm and 1000 rpm. The Zetor 5245 has agricultural tires, with 9.5-24 in the front and 14.9-28 in the rear. It measures 143.1 inches long, 72.8 inches wide, and 102.2 inches high. The tractor's operating weight of 6790 lb is above average, providing good stability for various tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Zetor |
|---|---|
| Model | 5245 |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 6,790lb |
Engine
| Make | Zetor |
|---|---|
| Model | 5201 |
| Power | 45.9hp |
| Cylinders | 3 |
| Displacement | 164.6ci |
| Bore | 4.02in |
| Stroke | 4.33in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 |
|---|
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Optional Transmission or Live PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 143.1in |
|---|---|
| Width | 72.8in |
| Height | 102.2in |
| Operating weight | 6,790lb |
Tires
| Front | 9.5-24 |
|---|---|
| Rear | 14.9-28 |
Capacities
| Cooling system | 2.13gal |
|---|
Head to head
5245 vs. Utility median
How the Zetor 5245 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 45.9 hp | 55 hp | -17% | 40th |
| Engine Displacement | 165 ci | 183 ci | -10% | 44th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 10 | 12 | -17% | 39th |
| Operating Weight | 6,790 lb | 5,303 lb | +28% | 65th |
| Length | 143 in | 137 in | +5% | 59th |
| Width | 72.8 in | 66 in | +10% | 66th |
| Height | 102 in | 94.1 in | +9% | 71st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Zetor tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Zetor 5211 | 45.9 hp | 5,910 lb | 1985–1992 | Compare → |
| Zetor 3320 | 46 hp | 6,327 lb | 1993–1997 | Compare → |
| Zetor 3321 | 46 hp | 6,220 lb | — | Compare → |
| Zetor 3340 | 46 hp | 7,080 lb | 1993–1997 | Compare → |
| Zetor 3341 | 46 hp | 6,990 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST60A | 46.4 hp | 4,078 lb | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
| Apollo 454 | 45 hp | 4,365 lb | — | Compare → |
| Ascot Universal 445 | 45 hp | 4,500 lb | — | Compare → |
| Barreiros 5000 VR | 45 hp | 4,080 lb | — | Compare → |
Explore
Zetor siblings
Explore
Similar-spec models
Gallery

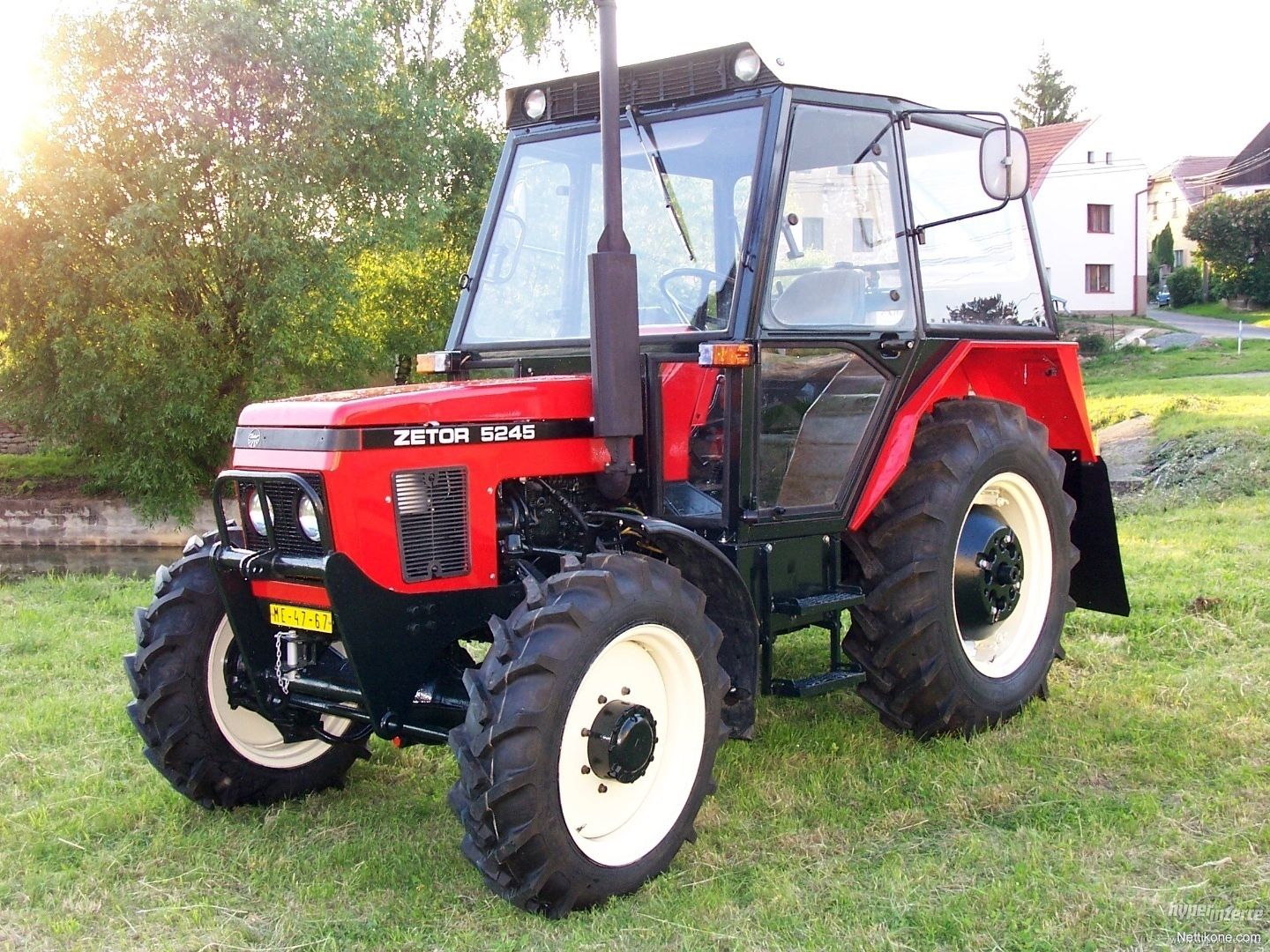

Zetor 5245 photos
FAQ
Common questions
How much horsepower does the Zetor 5245 have?
The Zetor 5245 produces 45.9 hp from its 3-cylinder engine. Engine displacement is 164.6 ci.
What size tires does the Zetor 5245 use?
Factory rubber for the Zetor 5245 is 9.5-24 front tires and 14.9-28 rear tires.
What hitch category is the Zetor 5245?
The Zetor 5245 uses a Category II/I hitch.
How much does the Zetor 5245 weigh?
The Zetor 5245 weighs about 6,790 lb in operating condition.
What transmission is in the Zetor 5245?
Transmission on the Zetor 5245 is Gear, with 10 forward speeds.
What type of hydraulic system does the Zetor 5245 use?
Hydraulics on the Zetor 5245 are Open Center.
What maintenance does the Zetor 5245 require?
Like any tractor, the Zetor 5245 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
