Zetor 8520
The Zetor 8520 is a powerful 2WD tractor built for farm work. It has a 4-cylinder diesel engine made by Zetor. This engine is turbocharged and liquid-cooled, giving it extra power. The engine puts out 80 hp at 2200 rpm, which is good for many farm tasks. This tractor has a synchromesh transmission with 18 forward gears and 6 reverse gears. This gives the driver lots of options for different speeds. The Zetor 8520 uses hydrostatic power steering, making it easy to turn. It's 153.5 inches long, 75.9 inches wide, and 104 inches tall. The tractor weighs 7441 lb, which helps it grip the ground well. It has big ag tires, with 34-inch rear tires for good traction. The hydraulic system is open type, and it has a category II hitch for attaching tools.
ManufacturerZetorPower80 hpEngine4-cylTranssynchromesh
Quick specs
- Category
- Agricultural
- Engine Power Output
- 80hp
- Operating Weight
- 7,441 lb
- Transmission
- synchromesh
At a glance
How the 8520 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
80 hp · 27th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 8520 ranks at the 27th percentile for engine power among recorded agricultural tractors.
Overview
About the Zetor 8520
The Zetor 8520 is a powerful 2WD tractor built for farm work. It has a 4-cylinder diesel engine made by Zetor. This engine is turbocharged and liquid-cooled, giving it extra power. The engine puts out 80 hp at 2200 rpm, which is good for many farm tasks. This tractor has a synchromesh transmission with 18 forward gears and 6 reverse gears. This gives the driver lots of options for different speeds. The Zetor 8520 uses hydrostatic power steering, making it easy to turn. It's 153.5 inches long, 75.9 inches wide, and 104 inches tall. The tractor weighs 7441 lb, which helps it grip the ground well. It has big ag tires, with 34-inch rear tires for good traction. The hydraulic system is open type, and it has a category II hitch for attaching tools.
Full specifications
Every recorded spec
General
| Manufacturer | Zetor |
|---|---|
| Model | 8520 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 7,441lb |
Engine
| Make | Zetor |
|---|---|
| Model | Z 1201 |
| Power | 80hp |
| Cylinders | 4 |
| Displacement | 253.6ci |
| Bore | 4.13in |
| Stroke | 4.72in |
Transmission
| Type | synchromesh |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | hydrostatic power |
Hydraulics
| Type | open |
|---|
Dimensions
| Length | 153.5in |
|---|---|
| Width | 75.9in |
| Height | 104in |
| Operating weight | 7,441lb |
Head to head
8520 vs. Agricultural median
How the Zetor 8520 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 80 hp | 110 hp | -27% | 27th |
| Engine Displacement | 254 ci | 336 ci | -24% | 33rd |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 18 | 16 | +13% | 68th |
| Operating Weight | 7,441 lb | 10,914 lb | -32% | 28th |
| Length | 154 in | 173 in | -11% | 30th |
| Width | 75.9 in | 79.5 in | -5% | 41st |
| Height | 104 in | 111 in | -6% | 34th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared Zetor tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Zetor Proxima 8421 | 84 hp | 7,440 lb | — | Compare → |
| Zetor 7520 | 71 hp | 7,341 lb | — | Compare → |
| Zetor 2300 | 69 hp | 6,669 lb | — | Compare → |
| Zetor 9020 | 93 hp | 7,090 lb | — | Compare → |
| Zetor 9040 | 93 hp | 7,890 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
| Agco GT75A | 83 hp | 6,040.7 lb | — | Compare → |
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
Explore
Zetor siblings
Explore
Similar-spec models
Gallery

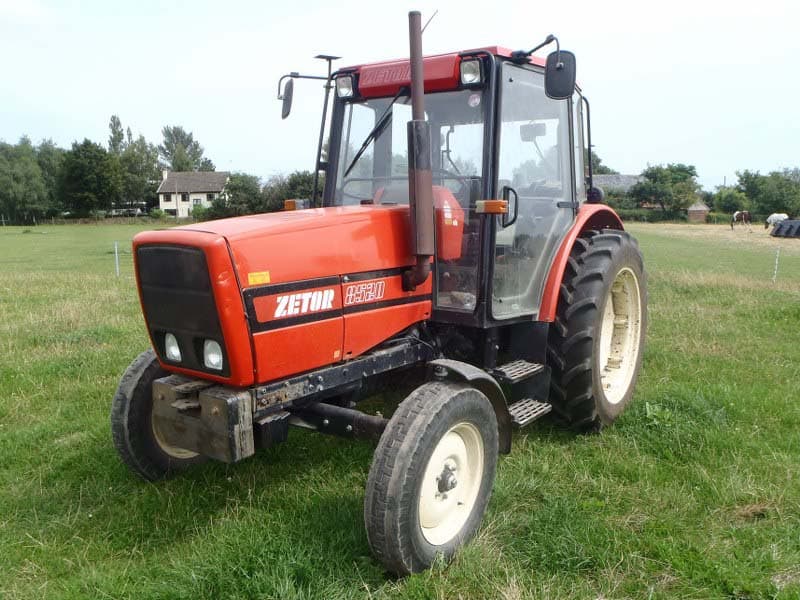

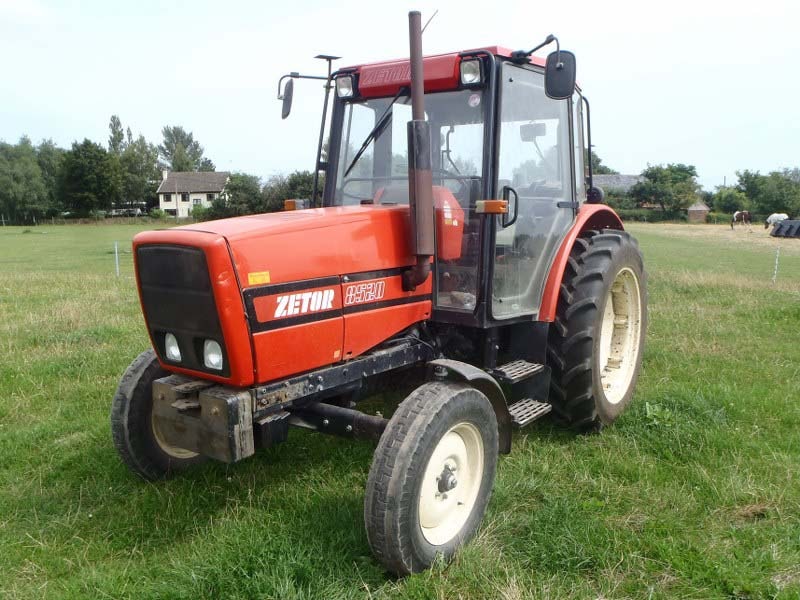

Zetor 8520 photos
FAQ
Common questions
What is the engine power output of the Zetor 8520?
Rated engine output for the Zetor 8520 is 80 hp, delivered by a 4-cylinder engine. The engine displaces 253.6 ci.
What is the operating weight of the Zetor 8520?
In working trim, the Zetor 8520 comes in at roughly 7,441 lb.
Which transmission does the Zetor 8520 use?
The Zetor 8520 is equipped with a synchromesh transmission with 18 forward gears.
What hydraulics does the Zetor 8520 have?
The Zetor 8520 uses an open hydraulic system.
What three-point hitch category does the Zetor 8520 use?
The Zetor 8520 has a Category II three-point hitch.
How do I maintain a Zetor 8520?
Routine service for the Zetor 8520 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
