Utility tractorsSpec sheet

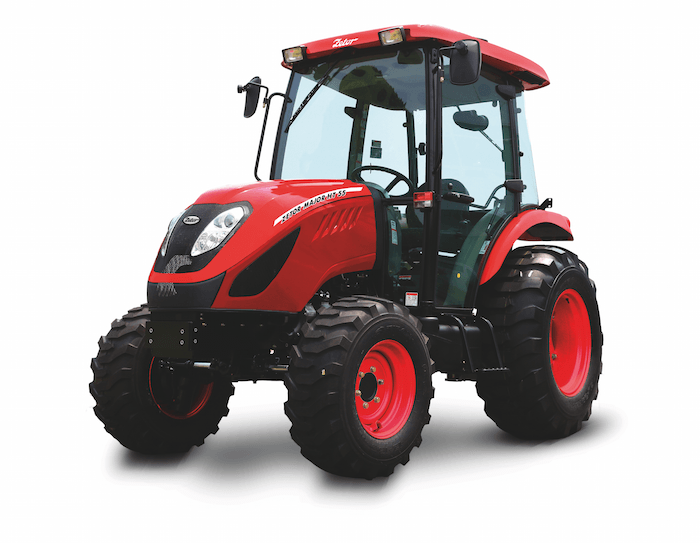

Zetor Major HS 65
The Zetor Major HS 65 is a utility tractor built for tough farm work. It has a strong 4-cylinder Deutz diesel engine that gives 67 horsepower. This engine power is above average compared to other tractors. The tractor has four-wheel drive, which helps it move well in different conditions. This tractor is big and sturdy. It's about 13 feet long, 6 feet wide, and 8 feet tall. It weighs 5,555 pounds, which is about average for its class. The Major HS 65 has a comfortable cab for the driver and power steering to make it easy to control. It has 24 forward and 24 reverse gears, giving the driver lots of choices for different jobs. The tractor uses an open center hydraulic system and has a Category II hitch at the back for attaching tools. It also meets Tier IV emissions standards, which means it's good for the environment.
ManufacturerZetorPower67 hp(50.0 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionPower Shuttle
Key specifications
- Category
- Utility
- Engine power
- 67hp
- Operating weight
- 5,555 lb
- Transmission
- Power Shuttle
Category comparison
Major HS 65 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
67 hp · 61st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Major HS 65 ranks at the 61st percentile for engine power among recorded utility tractors.
Overview
About the Zetor Major HS 65
The Zetor Major HS 65 is a utility tractor built for tough farm work. It has a strong 4-cylinder Deutz diesel engine that gives 67 horsepower. This engine power is above average compared to other tractors. The tractor has four-wheel drive, which helps it move well in different conditions. This tractor is big and sturdy. It's about 13 feet long, 6 feet wide, and 8 feet tall. It weighs 5,555 pounds, which is about average for its class. The Major HS 65 has a comfortable cab for the driver and power steering to make it easy to control. It has 24 forward and 24 reverse gears, giving the driver lots of choices for different jobs. The tractor uses an open center hydraulic system and has a Category II hitch at the back for attaching tools. It also meets Tier IV emissions standards, which means it's good for the environment.
Full specifications
Recorded specifications
General
| Manufacturer | Zetor |
|---|---|
| Model | Major HS 65 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 5,555lb(2,520 kg) |
Engine
| Make | Deutz |
|---|---|
| Model | TCD 2.9 L4 |
| Power | 67hp(49.96 kW) |
| Cylinders | 4 |
| Displacement | 177ci(2.9 L) |
| Bore | 3.62in(91.95 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Power Shuttle |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | Cab |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 155.6in(3,952 mm) |
|---|---|
| Width | 72.4in(1,839 mm) |
| Height | 100.2in(2,545 mm) |
| Operating weight | 5,555lb(2,520 kg) |
Capacities
| Cooling system | 2.65gal(10.03 L) |
|---|
Closest alternatives
Major HS 65 compared with the nearest models by horsepower
Among utility tractors, the John Deere 5325 and the John Deere 1650 are closest to the Zetor Major HS 65 in rated horsepower. The John Deere 5325 matches it on rated power and weighs 210 lb less. The John Deere 1650 matches it on rated power and weighs 930 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the Major HS 65 has the highest weight per horsepower at 83 lb per hp.
| Spec | Zetor Major HS 65 | John Deere 5325 | John Deere 1650 |
|---|---|---|---|
| Engine power | 67 hp50 kW | 67 hp50 kW | 67 hp50 kW |
| Operating weight | 5,555 lb2,520 kg | 5,350 lb2,427 kg | 4,630 lb2,100 kg |
| Weight per hp | 83 lb/hp50 kg/kW | 80 lb/hp49 kg/kW | 69 lb/hp42 kg/kW |
| Displacement | 177 ci2.9 L | 186.1 ci3.05 L | 190 ci3.11 L |
| Cylinders | 4 | 5 | 4 |
| Transmission | Power Shuttle | Partially synchronized | Sliding gear |
| Drive | 4WD | 2WD | 2WD |
| Years built | - | 2005-2008 | 1984-1988 |
Calculators
Calculators for the Major HS 65
PTO power
About 56 to 60 PTO hp
Estimated from the 67 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 67 hp tractor can run
Maximum size is about a 8 ft rotary cutter or a 7 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
96 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
67 hp is 50.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Major HS 65 vs. Utility median
Zetor Major HS 65 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 67 hp | 55 hp | +22% | 61st |
| Engine Displacement | 177 ci | 183 ci | -3% | 47th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 5,555 lb | 5,303 lb | +5% | 52nd |
| Length | 156 in | 137 in | +14% | 72nd |
| Width | 72.4 in | 66 in | +10% | 66th |
| Height | 100 in | 94.1 in | +6% | 66th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Zetor models
Other manufacturers
Models with similar horsepower
Gallery
Zetor Major HS 65 photos
FAQ
Frequently asked questions
How powerful is the Zetor Major HS 65?
The Zetor Major HS 65 has an engine power output of 67 hp. It is powered by a 4-cylinder engine displacing 177 ci.
What is the working weight of the Zetor Major HS 65?
The operating weight of the Zetor Major HS 65 is approximately 5,555 lb.
What type of transmission does the Zetor Major HS 65 have?
The Zetor Major HS 65 uses a Power Shuttle transmission offering 24 forward gears.
What hydraulics does the Zetor Major HS 65 have?
The Zetor Major HS 65 uses an Open Center hydraulic system.
What three-point hitch category does the Zetor Major HS 65 use?
The Zetor Major HS 65 has a Category Category 3 three-point hitch.
What routine service does the Zetor Major HS 65 need?
Regular maintenance for the Zetor Major HS 65 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
