AGCO ST22A
The AGCO ST22A is a compact tractor designed for various farming and landscaping tasks. It features a hydrostatic transmission with infinite forward and reverse speeds in two ranges, giving operators smooth and easy control. The tractor is powered by a 3-cylinder, liquid-cooled diesel engine made by Iseki. This engine produces 22.5 horsepower at 2600 rpm, making it suitable for light to medium-duty work. The ST22A has a sturdy build, measuring 97.6 inches long, 45.8 inches wide, and 72.4 inches tall. It weighs 1600 pounds, which helps with stability during operation. The tractor comes with a three-point hitch at the rear, rated as Category I, allowing it to use a variety of attachments. It also features both rear and mid PTOs, with speeds of 540 rpm at the rear and 2000 rpm at the mid-position. This versatility makes the ST22A useful for many different jobs around the farm or property.
ManufacturerAGCOPower22.5 hpEngine3-cylTransHydrostatic
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 23hp
- Operating Weight
- 1,600 lb
- Transmission
- Hydrostatic
At a glance
How the ST22A compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
22.5 hp · 35th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The ST22A ranks at the 35th percentile for engine power among recorded sub-compact tractors.
Overview
About the AGCO ST22A
The AGCO ST22A is a compact tractor designed for various farming and landscaping tasks. It features a hydrostatic transmission with infinite forward and reverse speeds in two ranges, giving operators smooth and easy control. The tractor is powered by a 3-cylinder, liquid-cooled diesel engine made by Iseki. This engine produces 22.5 horsepower at 2600 rpm, making it suitable for light to medium-duty work. The ST22A has a sturdy build, measuring 97.6 inches long, 45.8 inches wide, and 72.4 inches tall. It weighs 1600 pounds, which helps with stability during operation. The tractor comes with a three-point hitch at the rear, rated as Category I, allowing it to use a variety of attachments. It also features both rear and mid PTOs, with speeds of 540 rpm at the rear and 2000 rpm at the mid-position. This versatility makes the ST22A useful for many different jobs around the farm or property.
Full specifications
Every recorded spec
General
| Manufacturer | AGCO |
|---|---|
| Model | ST22A |
| Category | Sub-Compact tractor |
| Operating weight | 1,600lb |
Engine
| Make | Iseki |
|---|---|
| Power | 22.5hp |
| Cylinders | 3 |
| Displacement | 68.5ci |
| Bore | 3.08in |
| Stroke | 3.07in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Cab | Open operator station |
|---|
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Rear and Mid PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 97.6in |
|---|---|
| Width | 45.8in |
| Height | 72.4in |
| Operating weight | 1,600lb |
Head to head
ST22A vs. Sub-Compact median
How the AGCO ST22A compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22.5 hp | 26.9 hp | -16% | 35th |
| Engine Displacement | 68.5 ci | 91.4 ci | -25% | 29th |
| Cylinders | 3 | 3 | at median | 50th |
| Operating Weight | 1,600 lb | 2,700 lb | -41% | 28th |
| Length | 97.6 in | 113 in | -14% | 26th |
| Width | 45.8 in | 50.7 in | -10% | 31st |
| Height | 72.4 in | 78.4 in | -8% | 35th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared AGCO tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST45 | 44.2 hp | 4,448 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| AGCO ST28A | 28.4 hp | 2,400 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
| Belarus 200 | 22 hp | 2,600 lb | — | Compare → |
| Belarus 2011 | 22 hp | 2,602 lb | — | Compare → |
| Belarus 2045 | 22 hp | 2,712 lb | — | Compare → |
| Belarus 2145 | 22 hp | 2,700 lb | — | Compare → |
Explore
AGCO siblings
Explore
Similar-spec models
Gallery

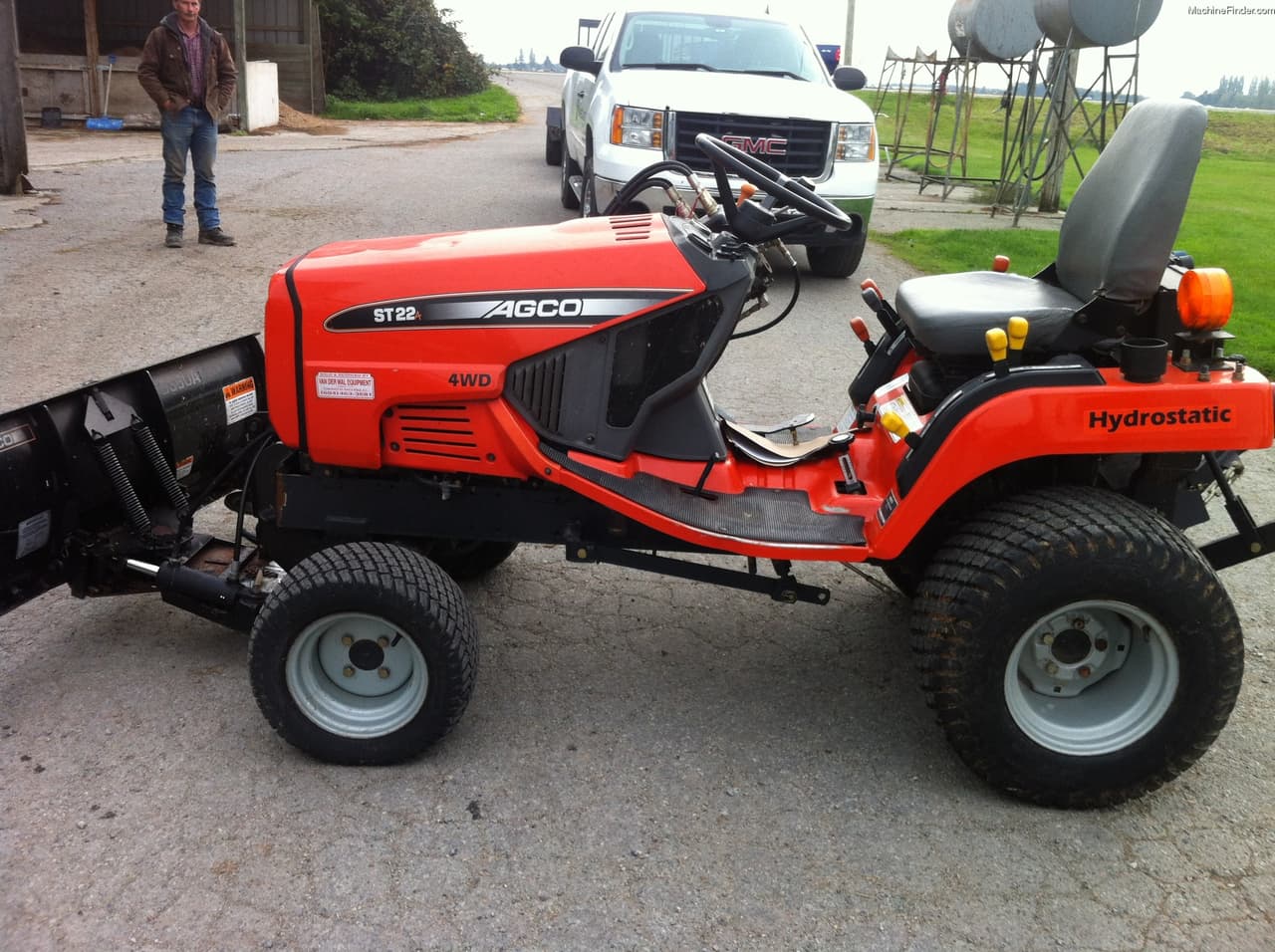

AGCO ST22A photos
FAQ
Common questions
What is the engine power output of the AGCO ST22A?
Rated engine output for the AGCO ST22A is 22.5 hp, delivered by a 3-cylinder engine. The engine displaces 68.5 ci.
What hitch category is the AGCO ST22A?
The AGCO ST22A uses a Category I hitch.
What is the operating weight of the AGCO ST22A?
In working trim, the AGCO ST22A comes in at roughly 1,600 lb.
Which transmission does the AGCO ST22A use?
The AGCO ST22A is equipped with a Hydrostatic transmission.
What type of hydraulic system does the AGCO ST22A use?
Hydraulics on the AGCO ST22A are Open center.
How do I maintain a AGCO ST22A?
Routine service for the AGCO ST22A covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
