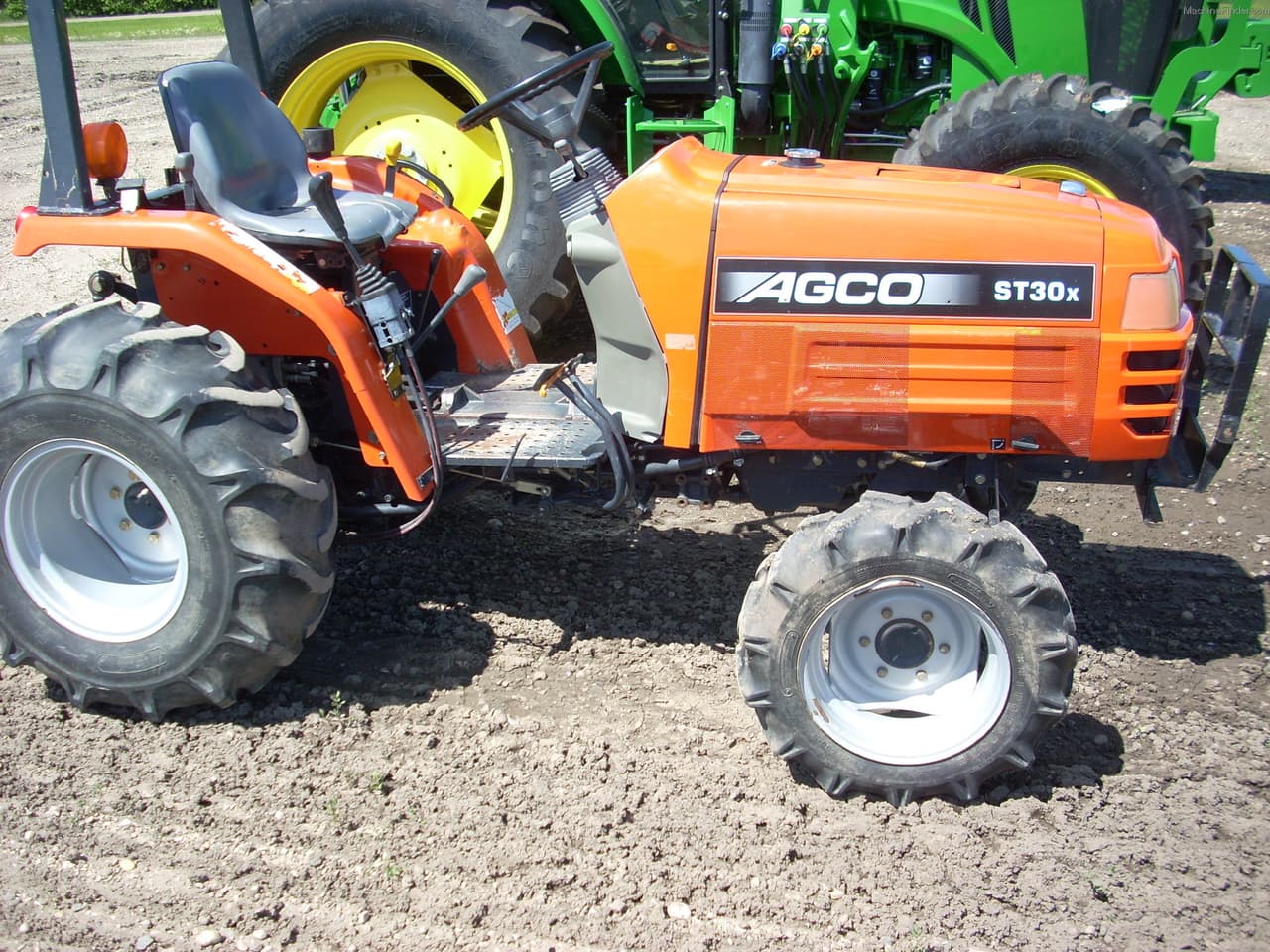

AGCO ST30x
The AGCO ST30x is a utility tractor designed for various farm tasks. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor uses a gear transmission with 9 forward and 3 reverse gears, giving drivers plenty of options for different jobs. Under the hood, the ST30x has an Iseki E3CF engine. This diesel engine has 3 cylinders and is liquid-cooled to keep it running smoothly. It produces 28.4 hp at 2500 rpm, which is below average power for tractors in its class. The engine size is also smaller than most, but it's fuel-efficient and good for lighter work. The tractor weighs 1984 lb, making it lighter and more nimble than many other models. It has a Category I hitch in the back and an independent PTO that spins at 540 rpm, useful for running various attachments. The ST30x also features a ROPS (Roll-Over Protective Structure) for safety and an open center hydraulic system for smooth operation of implements.

Key specifications
- Category
- Utility
- Engine power
- 28hp
- Operating weight
- 1,984 lb
- Transmission
- Gear
Category comparison
ST30x compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The ST30x ranks at the 20th percentile for engine power among recorded utility tractors.
Overview
About the AGCO ST30x
The AGCO ST30x is a utility tractor designed for various farm tasks. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor uses a gear transmission with 9 forward and 3 reverse gears, giving drivers plenty of options for different jobs. Under the hood, the ST30x has an Iseki E3CF engine. This diesel engine has 3 cylinders and is liquid-cooled to keep it running smoothly. It produces 28.4 hp at 2500 rpm, which is below average power for tractors in its class. The engine size is also smaller than most, but it's fuel-efficient and good for lighter work. The tractor weighs 1984 lb, making it lighter and more nimble than many other models. It has a Category I hitch in the back and an independent PTO that spins at 540 rpm, useful for running various attachments. The ST30x also features a ROPS (Roll-Over Protective Structure) for safety and an open center hydraulic system for smooth operation of implements.
Full specifications
Recorded specifications
General
| Manufacturer | AGCO |
|---|---|
| Model | ST30x |
| Category | Utility tractor |
| Type | 2WD |
| Operating weight | 1,984lb(899.9 kg) |
Engine
| Make | Iseki |
|---|---|
| Model | E3CF |
| Power | 28.4hp(21.18 kW) |
| Cylinders | 3 |
| Displacement | 89.3ci(1.46 L) |
| Bore | 3.39in(86.11 mm) |
| Stroke | 3.3in(83.82 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Drive | 2WD |
|---|---|
| Steering | Hydrostatic power |
| Cab | ROPS |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 116.5in(2,959 mm) |
|---|---|
| Width | 55.6in(1,412 mm) |
| Height | 79.3in(2,014 mm) |
| Operating weight | 1,984lb(899.9 kg) |
Capacities
| Cooling system | 1.88gal(7.12 L) |
|---|
Closest alternatives
ST30x compared with the nearest models by horsepower
The closest utility models to the AGCO ST30x by rated horsepower are the AGCO ST28A and the Massey Ferguson 1529. The AGCO ST28A matches it on rated power and weighs 420 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Massey Ferguson 1529 matches it on rated power and weighs 600 lb more, at 91 lb per horsepower against 70 lb. Of the 3 models, the ST30x has the lowest weight per horsepower at 70 lb per hp.
| Spec | AGCO ST30x | AGCO ST28A | Massey Ferguson 1529 |
|---|---|---|---|
| Engine power | 28.4 hp21.2 kW | 28.4 hp21.2 kW | 28.4 hp21.2 kW |
| Operating weight | 1,984 lb900 kg | 2,400 lb1,089 kg | 2,579 lb1,170 kg |
| Weight per hp | 70 lb/hp42 kg/kW | 85 lb/hp51 kg/kW | 91 lb/hp55 kg/kW |
| Displacement | 89.3 ci1.46 L | 89.3 ci1.46 L | 91.4 ci1.5 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear | Hydrostatic | SynchroShuttle |
| Drive | 2WD | - | 4WD |
Calculators
Calculators for the ST30x
PTO power
About 24 to 26 PTO hp
Estimated from the 28.4 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 28.4 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
81 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
28.4 hp is 21.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the AGCO ST30x
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Iseki E3CFAmazon
Fits the Iseki E3CF 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Iseki E3CFAmazon
Fits the Iseki E3CF 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Iseki E3CFAmazon
Fits the Iseki E3CF 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Iseki E3CFAmazon
Fits the Iseki E3CF 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- AGCO ST30x service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- AGCO ST30x operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- AGCO ST30x service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
ST30x vs. Utility median
AGCO ST30x compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 28.4 hp | 55 hp | -48% | 20th |
| Engine Displacement | 89.3 ci | 183 ci | -51% | 15th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 1,984 lb | 5,303 lb | -63% | 12th |
| Length | 117 in | 137 in | -15% | 23rd |
| Width | 55.6 in | 66 in | -16% | 29th |
| Height | 79.3 in | 94.1 in | -16% | 27th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other AGCO models
Other manufacturers
Models with similar horsepower
Gallery
AGCO ST30x photos




FAQ
Frequently asked questions
How much horsepower does the AGCO ST30x have?
The AGCO ST30x produces 28.4 hp from its 3-cylinder engine. Engine displacement is 89.3 ci.
How much does the AGCO ST30x weigh?
The AGCO ST30x weighs about 1,984 lb in operating condition.
What transmission is in the AGCO ST30x?
Transmission on the AGCO ST30x is Gear, with 9 forward speeds.
What type of hydraulic system does the AGCO ST30x use?
Hydraulics on the AGCO ST30x are Open Center.
What maintenance does the AGCO ST30x require?
The AGCO ST30x needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
