Allis Chalmers 200
The Allis Chalmers 200 is a row crop tractor made from 1972 to 1975. It's a 2-wheel drive tractor with hydraulic power steering, making it easy to control in the fields. The tractor has 8 forward gears and 2 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Allis Chalmers 200 has a 6-cylinder diesel engine that's turbocharged for extra power. The engine is liquid-cooled to keep it running smoothly. It has an average displacement of 301 cubic inches and runs at a high speed of 2200 rpm. The tractor weighs 7,324 pounds, which is on the lighter side compared to other tractors. It has a three-point hitch at the back that can lift up to 4,608 pounds, which is about average for its size. This tractor is built for comfort and ease of use. It has an open operator station, so farmers can easily see their surroundings. The Allis Chalmers 200 also has a rear PTO with two speeds: 540 rpm and 1000 rpm. This makes it versatile for different farm tools. With its mix of power and features, the Allis Chalmers 200 was a solid choice for farmers in the 1970s.

Quick specs
- Category
- Row Crop
- Operating Weight
- 7,324 lb
- Transmission
- Constant mesh-helical gears
Overview
About the Allis Chalmers 200
The Allis Chalmers 200 is a row crop tractor made from 1972 to 1975. It's a 2-wheel drive tractor with hydraulic power steering, making it easy to control in the fields. The tractor has 8 forward gears and 2 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Allis Chalmers 200 has a 6-cylinder diesel engine that's turbocharged for extra power. The engine is liquid-cooled to keep it running smoothly. It has an average displacement of 301 cubic inches and runs at a high speed of 2200 rpm. The tractor weighs 7,324 pounds, which is on the lighter side compared to other tractors. It has a three-point hitch at the back that can lift up to 4,608 pounds, which is about average for its size. This tractor is built for comfort and ease of use. It has an open operator station, so farmers can easily see their surroundings. The Allis Chalmers 200 also has a rear PTO with two speeds: 540 rpm and 1000 rpm. This makes it versatile for different farm tools. With its mix of power and features, the Allis Chalmers 200 was a solid choice for farmers in the 1970s.
Full specifications
Every recorded spec
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | 200 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1972–1975 |
| Operating weight | 7,324lb |
Engine
| Make | Allis Chalmers |
|---|---|
| Model | Allis Chalmers |
| Cylinders | 6 |
| Displacement | 301ci |
| Bore | 3.88in |
| Stroke | 4.25in |
Transmission
| Type | Constant mesh-helical gears |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydraulic power |
| Brakes | Ball actuated disc |
| Cab | Open operator station |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Rear PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 175.5in |
|---|---|
| Width | 87.63in |
| Height | 117.5in |
| Operating weight | 7,324lb |
Capacities
| Cooling system | 4.5gal |
|---|
Head to head
200 vs. Row Crop median
How the Allis Chalmers 200 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 301 ci | 391 ci | -23% | 32nd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 7,324 lb | 12,307 lb | -40% | 17th |
| Length | 176 in | 180 in | -2% | 44th |
| Width | 87.6 in | 91.2 in | -4% | 43rd |
| Height | 118 in | 114 in | +4% | 64th |
| 3-Point Hitch Capacity | 4,608 lb | 11,023 lb | -58% | 9th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 279–1,417 models).
Compare to tractors with similar specs
Commonly compared Allis Chalmers tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 175 | — | 7,830 lb | 1970–1980 | Compare → |
| Allis Chalmers 185 | — | 6,710 lb | 1970–1981 | Compare → |
| Allis Chalmers 190 | — | 7,665 lb | 1964–1972 | Compare → |
| Allis Chalmers 190XT | — | 7,675 lb | 1964–1971 | Compare → |
| Allis Chalmers 210 | 136 hp | 12,425 lb | 1970–1973 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Allis Chalmers siblings
Explore
Similar-spec models
Gallery

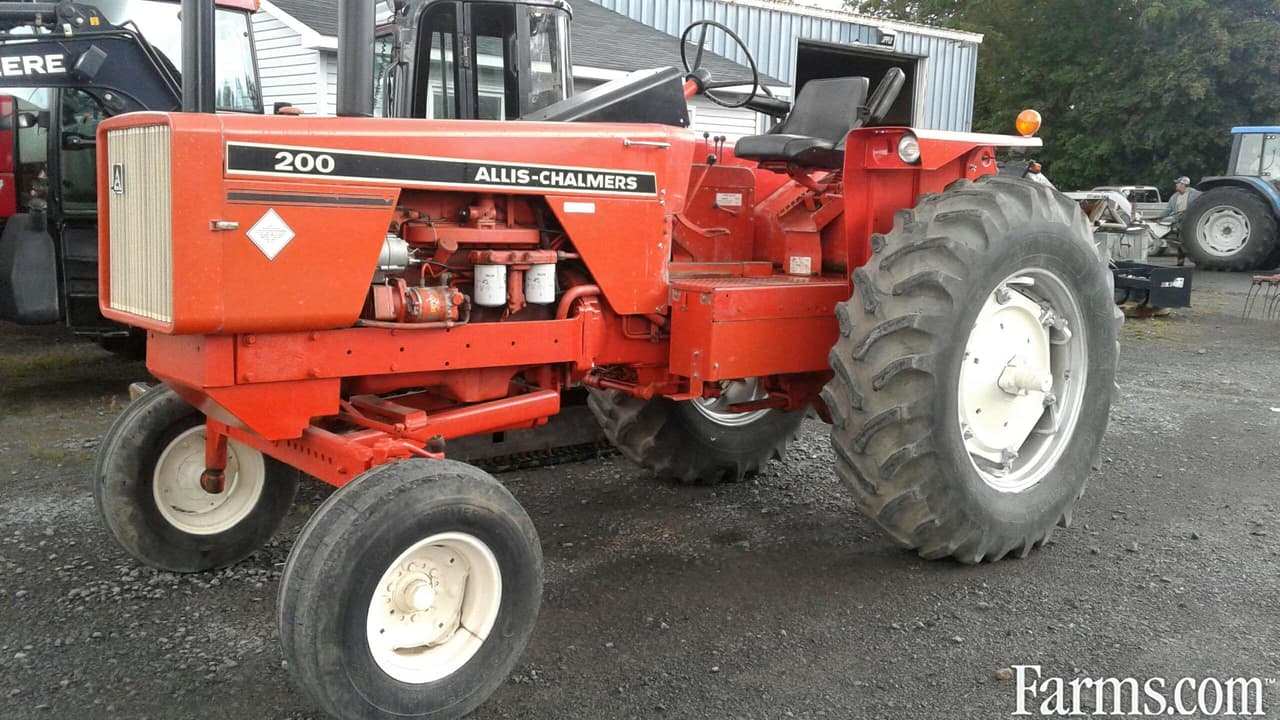

Allis Chalmers 200 photos





FAQ
Common questions
When was the Allis Chalmers 200 in production?
Allis Chalmers 200 production started in 1972 and ended in 1975.
What transmission is in the Allis Chalmers 200?
Transmission on the Allis Chalmers 200 is Constant mesh-helical gears, with 8 forward speeds.
What hydraulics does the Allis Chalmers 200 have?
The Allis Chalmers 200 uses an Open center hydraulic system.
What three-point hitch category does the Allis Chalmers 200 use?
The Allis Chalmers 200 has a Category II three-point hitch rated to lift 4,608 lb.
What engine configuration does the Allis Chalmers 200 use?
The Allis Chalmers 200 is equipped with a 6-cylinder engine displacing 301 ci.
How much does the Allis Chalmers 200 weigh?
The Allis Chalmers 200 weighs about 7,324 lb in operating condition.
What maintenance does the Allis Chalmers 200 require?
Like any tractor, the Allis Chalmers 200 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
