UtilityPerformance profile
Belarus 520
The Belarus 520 is a versatile 4WD tractor designed for various farming tasks. It features a 4-cylinder diesel engine made by Belarus, which produces 65 hp of power. The engine is liquid-cooled and has a displacement of 289.8 cubic inches, making it suitable for moderate to heavy-duty work on the farm. This tractor comes with a sliding gear transmission that offers 9 forward gears and 2 reverse gears, giving farmers good control over their speed and power. The Belarus 520 has agricultural tires on both front and rear, with the front tires measuring 11.2 inches wide and the rear tires 15.5 inches wide. It has an operating weight of 6500 lb, which helps provide stability during operation. The tractor is equipped with a category II rear hitch and an open center hydraulic system, making it compatible with a wide range of farm implements. The open operator station allows for easy access and good visibility while working in the fields.
ManufacturerBelarusPower65 hpEngine4-cylTransSliding gear
Quick specs
- Category
- Utility
- Engine Power Output
- 65hp
- Operating Weight
- 6,500 lb
- Transmission
- Sliding gear
At a glance
How the 520 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
65 hp · 59th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 520 ranks at the 59th percentile for engine power among recorded utility tractors.
Overview
About the Belarus 520
The Belarus 520 is a versatile 4WD tractor designed for various farming tasks. It features a 4-cylinder diesel engine made by Belarus, which produces 65 hp of power. The engine is liquid-cooled and has a displacement of 289.8 cubic inches, making it suitable for moderate to heavy-duty work on the farm. This tractor comes with a sliding gear transmission that offers 9 forward gears and 2 reverse gears, giving farmers good control over their speed and power. The Belarus 520 has agricultural tires on both front and rear, with the front tires measuring 11.2 inches wide and the rear tires 15.5 inches wide. It has an operating weight of 6500 lb, which helps provide stability during operation. The tractor is equipped with a category II rear hitch and an open center hydraulic system, making it compatible with a wide range of farm implements. The open operator station allows for easy access and good visibility while working in the fields.
Full specifications
Every recorded spec
General
| Manufacturer | Belarus |
|---|---|
| Model | 520 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 6,500lb |
Engine
| Make | Belarus |
|---|---|
| Power | 65hp |
| Cylinders | 4 |
| Displacement | 289.8ci |
| Bore | 4.33in |
| Stroke | 4.92in |
Transmission
| Type | Sliding gear |
|---|---|
| Forward gears | 9 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Cab | Open |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Operating weight | 6,500lb |
|---|
Capacities
| Cooling system | 5.27gal |
|---|
Head to head
520 vs. Utility median
How the Belarus 520 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 65 hp | 55 hp | +18% | 59th |
| Engine Displacement | 290 ci | 183 ci | +58% | 83rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 6,500 lb | 5,303 lb | +23% | 61st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,941–5,720 models).
Compare to tractors with similar specs
Commonly compared Belarus tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
| Belarus 505 | 65 hp | 7,980 lb | — | Compare → |
| Belarus 525 | 65 hp | 6,500 lb | — | Compare → |
| Belarus 6011 | 65 hp | 7,650 lb | — | Compare → |
| Belarus 6045 | 65 hp | 8,100 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Barreiros 5500 | 67 hp | — | — | Compare → |
| Antonio Carraro SRX 8400 | 70 hp | 4,486 lb | — | Compare → |
Explore
Belarus siblings
Explore
Similar-spec models
Gallery

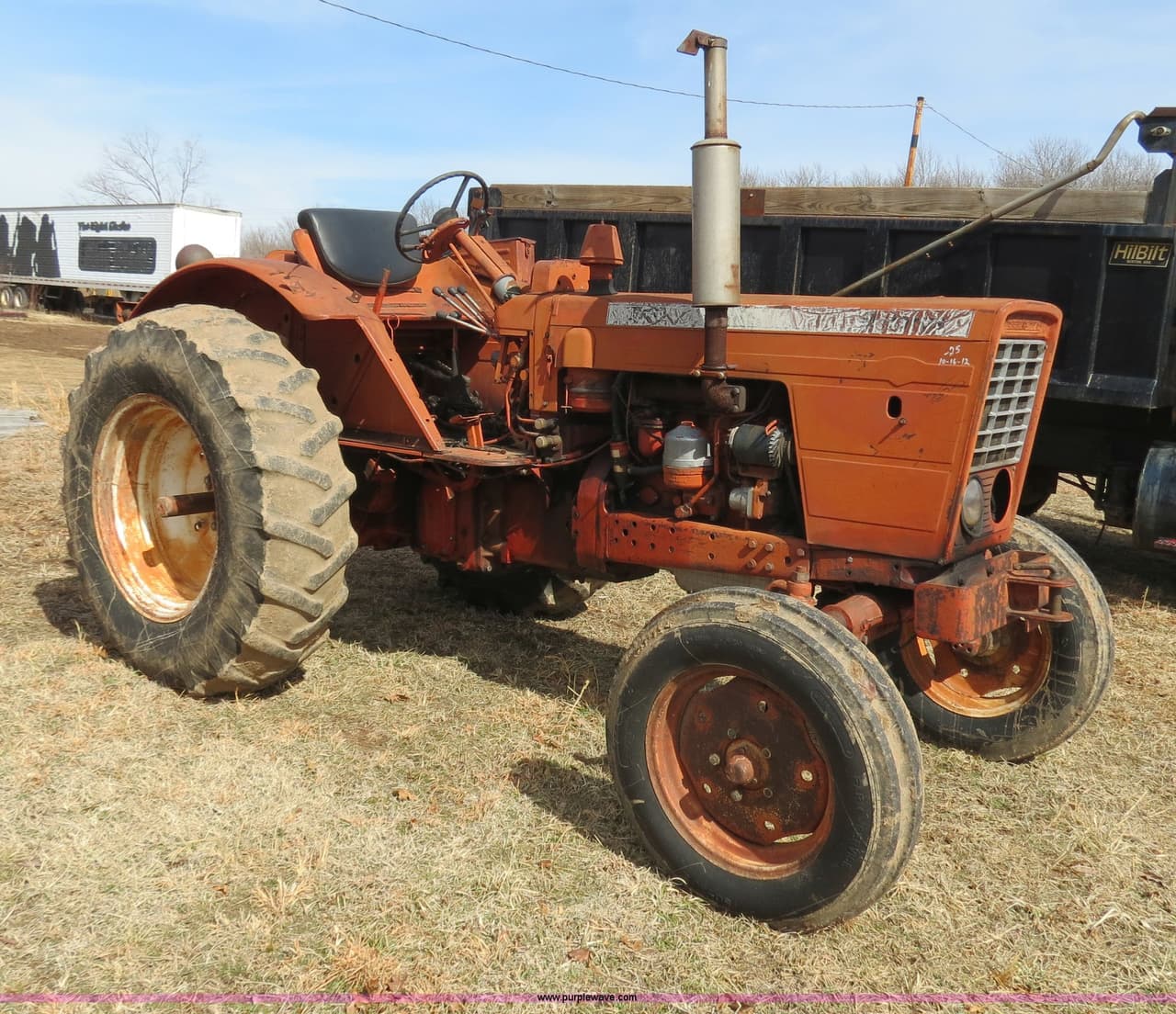

Belarus 520 photos
FAQ
Common questions
How much horsepower does the Belarus 520 have?
The Belarus 520 produces 65 hp from its 4-cylinder engine. Engine displacement is 289.8 ci.
What hydraulics does the Belarus 520 have?
The Belarus 520 uses an Open center hydraulic system.
What three-point hitch category does the Belarus 520 use?
The Belarus 520 has a Category II three-point hitch.
How much does the Belarus 520 weigh?
The Belarus 520 weighs about 6,500 lb in operating condition.
What transmission is in the Belarus 520?
Transmission on the Belarus 520 is Sliding gear, with 9 forward speeds.
What maintenance does the Belarus 520 require?
Like any tractor, the Belarus 520 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
