Row Crop tractorsSpec sheet
Allis Chalmers D17
The Allis Chalmers D17 is a row crop tractor made from 1957 to 1967. It has a 2WD drive system and a manual steering type. The tractor uses a partial power shift transmission with 8 forward gears and 2 reverse gears. This gives farmers good control when working in fields. The D17 has a 4-cylinder gasoline engine made by Allis Chalmers. The engine is liquid-cooled and naturally aspirated, with a displacement of 226 cubic inches. It produces 63 horsepower at 1650 rpm, which is average for tractors of its time. The tractor weighs 4,675 pounds and has a length of 139.8 inches, a width of 76.4 inches, and a height of 80.7 inches. It comes with agricultural tires and an open operator station. This tractor has some useful features for farm work. It has a rear-mounted Snap-Coupler hitch system, which is category II. The D17 also has a live PTO that runs at 540 rpm and an open center hydraulic system. These features make it easier to use different farm tools. The electric starter helps farmers get to work quickly in the morning.
ManufacturerAllis ChalmersPower63 hp(47.0 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionPartial Power Shift
Key specifications
- Category
- Row Crop
- Engine power
- 63hp
- Operating weight
- 4,675 lb
- Transmission
- Partial Power Shift
Category comparison
D17 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
63 hp · 9th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The D17 ranks at the 9th percentile for engine power among recorded row crop tractors.
Overview
About the Allis Chalmers D17
The Allis Chalmers D17 is a row crop tractor made from 1957 to 1967. It has a 2WD drive system and a manual steering type. The tractor uses a partial power shift transmission with 8 forward gears and 2 reverse gears. This gives farmers good control when working in fields. The D17 has a 4-cylinder gasoline engine made by Allis Chalmers. The engine is liquid-cooled and naturally aspirated, with a displacement of 226 cubic inches. It produces 63 horsepower at 1650 rpm, which is average for tractors of its time. The tractor weighs 4,675 pounds and has a length of 139.8 inches, a width of 76.4 inches, and a height of 80.7 inches. It comes with agricultural tires and an open operator station. This tractor has some useful features for farm work. It has a rear-mounted Snap-Coupler hitch system, which is category II. The D17 also has a live PTO that runs at 540 rpm and an open center hydraulic system. These features make it easier to use different farm tools. The electric starter helps farmers get to work quickly in the morning.
Full specifications
Recorded specifications
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | D17 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1957–1967 |
| Operating weight | 4,675lb(2,121 kg) |
Engine
| Make | Allis Chalmers |
|---|---|
| Model | Allis-Chalmers 3.7L 4-cyl gasoline |
| Power | 63hp(46.98 kW) |
| Cylinders | 4 |
| Displacement | 226ci(3.7 L) |
| Bore | 4.02in(102.1 mm) |
| Stroke | 4.49in(114 mm) |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open operator station |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Live |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 139.8in(3,551 mm) |
|---|---|
| Width | 76.4in(1,941 mm) |
| Height | 80.7in(2,050 mm) |
| Operating weight | 4,675lb(2,121 kg) |
Capacities
| Cooling system | 3.63gal(13.74 L) |
|---|
Closest alternatives
D17 compared with the nearest models by horsepower
The closest row crop models to the Allis Chalmers D17 by rated horsepower are the Massey Ferguson 2625 and the Farmall 656. The Massey Ferguson 2625 matches it on rated power and weighs 580 lb more, at 83 lb per horsepower against 74 lb. It entered production in 1985, 28 years after the D17. The Farmall 656 matches it on rated power and weighs 2,560 lb more, so it carries more weight per horsepower, which helps traction in draft work. It entered production in 1965, 8 years after the D17. Of the 3 models, the D17 has the lowest weight per horsepower at 74 lb per hp.
| Spec | Allis Chalmers D17 | Massey Ferguson 2625 | Farmall 656 |
|---|---|---|---|
| Engine power | 63 hp47 kW | 63 hp47 kW | 63 hp47 kW |
| Operating weight | 4,675 lb2,121 kg | 5,250 lb2,381 kg | 7,230 lb3,279 kg |
| Weight per hp | 74 lb/hp45 kg/kW | 83 lb/hp51 kg/kW | 115 lb/hp70 kg/kW |
| Displacement | 226 ci3.7 L | 220 ci3.61 L | 263 ci4.31 L |
| Cylinders | 4 | 4 | 6 |
| Transmission | Partial Power Shift | SynchroShuttle | Gear |
| Drive | 2WD | 2WD | 2WD |
| Years built | 1957-1967 | 1985-1986 | 1965-1973 |
Calculators
Calculators for the D17
PTO power
About 52 to 57 PTO hp
Estimated from the 63 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 63 hp tractor can run
Maximum size is about a 7.5 ft rotary cutter or a 6.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
86 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
63 hp is 47.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
D17 vs. Row Crop median
Allis Chalmers D17 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 63 hp | 138 hp | -54% | 9th |
| Engine Displacement | 226 ci | 391 ci | -42% | 11th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 4,675 lb | 12,307 lb | -62% | 7th |
| Length | 140 in | 180 in | -22% | 11th |
| Width | 76.4 in | 91.2 in | -16% | 13th |
| Height | 80.7 in | 114 in | -29% | 13th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Allis Chalmers models
Other manufacturers
Models with similar horsepower
Gallery

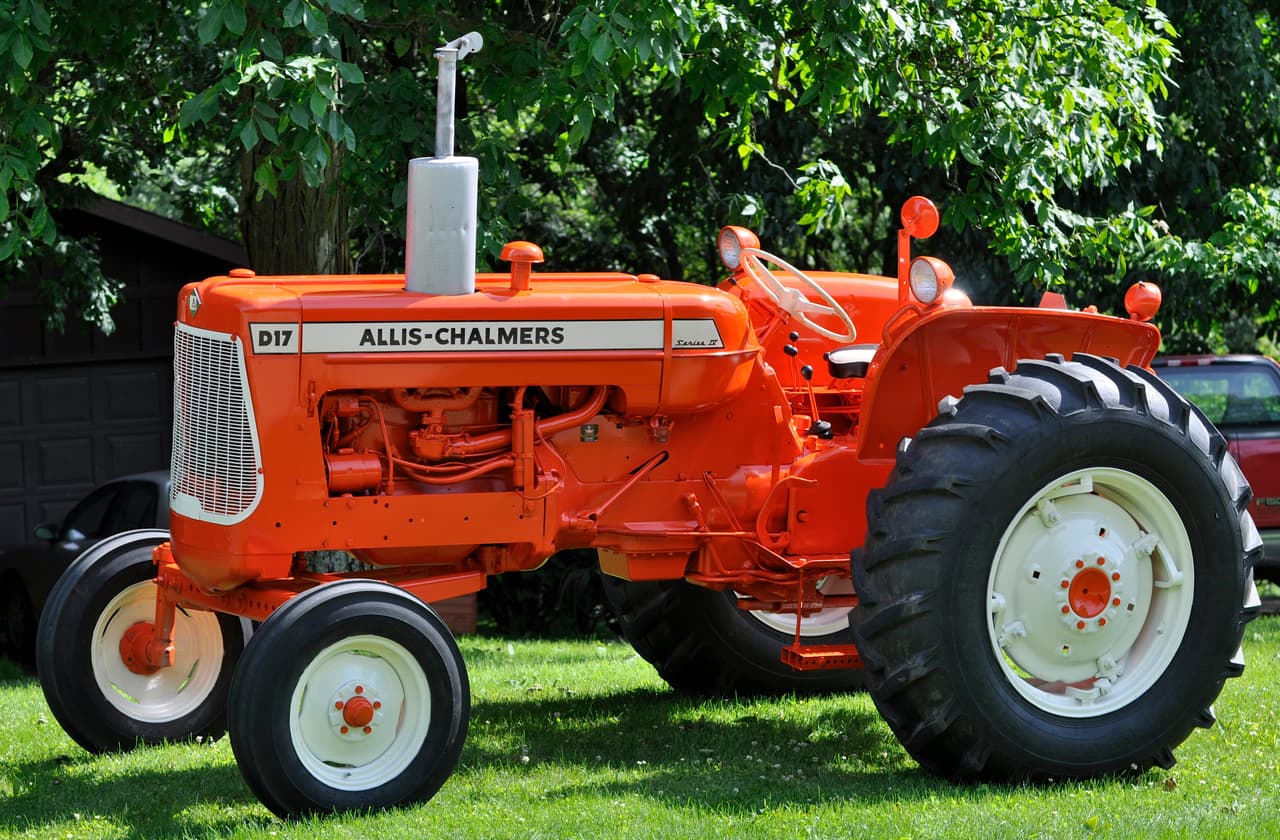

Allis Chalmers D17 photos
FAQ
Frequently asked questions
When was the Allis Chalmers D17 made?
The Allis Chalmers D17 was manufactured from 1957 to 1967.
What is the engine power output of the Allis Chalmers D17?
Rated engine output for the Allis Chalmers D17 is 63 hp, delivered by a 4-cylinder engine. The engine displaces 226 ci.
What is the operating weight of the Allis Chalmers D17?
The Allis Chalmers D17 has an operating weight of about 4,675 lb.
Which transmission does the Allis Chalmers D17 use?
The Allis Chalmers D17 is equipped with a Partial Power Shift transmission with 8 forward gears.
What hydraulics does the Allis Chalmers D17 have?
The Allis Chalmers D17 uses an Open Center hydraulic system.
What three-point hitch category does the Allis Chalmers D17 use?
The Allis Chalmers D17 has a Category II three-point hitch.
How do I maintain a Allis Chalmers D17?
Routine service for the Allis Chalmers D17 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
