Belarus 9345
The Belarus 9345 is a row crop tractor built for tough farm work. It has a 4-wheel drive system and a strong 93.33 hp diesel engine. This engine is turbocharged and has 4 cylinders. The tractor has a 14-speed transmission with 4 reverse gears, giving farmers lots of options for different tasks. This Belarus model weighs 8,646 pounds, which is average for its class. It has an open operator station and uses hydrostatic power steering for easy control. The tractor's hitch is category II, good for many farm implements. It has standard agricultural tires, with larger ones in the back for better traction. The 9345 can run a PTO at either 540 or 1000 rpm, making it versatile for various attachments. Its fuel efficiency is quite good, using about 5.79 gallons per hour at full power.
ManufacturerBelarusPower93.33 hp(69.6 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionSelective gear fixed ratio
Key specifications
- Category
- Row Crop
- Engine power
- 93hp
- Operating weight
- 8,646 lb
- Transmission
- Selective gear fixed ratio
Category comparison
9345 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
93.33 hp · 20th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 9345 ranks at the 20th percentile for engine power among recorded row crop tractors.
Overview
About the Belarus 9345
The Belarus 9345 is a row crop tractor built for tough farm work. It has a 4-wheel drive system and a strong 93.33 hp diesel engine. This engine is turbocharged and has 4 cylinders. The tractor has a 14-speed transmission with 4 reverse gears, giving farmers lots of options for different tasks. This Belarus model weighs 8,646 pounds, which is average for its class. It has an open operator station and uses hydrostatic power steering for easy control. The tractor's hitch is category II, good for many farm implements. It has standard agricultural tires, with larger ones in the back for better traction. The 9345 can run a PTO at either 540 or 1000 rpm, making it versatile for various attachments. Its fuel efficiency is quite good, using about 5.79 gallons per hour at full power.
Full specifications
Recorded specifications
General
| Manufacturer | Belarus |
|---|---|
| Model | 9345 |
| Category | Row Crop tractor |
| Type | 4x4 Front Wheel Assist |
| Operating weight | 8,646lb(3,922 kg) |
Engine
| Make | MTZ |
|---|---|
| Model | D-245.5 |
| Power | 93.33hp(69.6 kW) |
| Cylinders | 4 |
| Displacement | 290ci(4.75 L) |
| Bore | 4.33in(110 mm) |
| Stroke | 4.92in(125 mm) |
Transmission
| Type | Selective gear fixed ratio |
|---|---|
| Forward gears | 14 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 Front Wheel Assist |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Dry disc operated by two foot pedals |
| Cab | Open |
Dimensions
| Operating weight | 8,646lb(3,922 kg) |
|---|
Tires
| Front | 360/70R20Convert |
|---|---|
| Rear | 16.9R38Convert |
Capacities
| Cooling system | 5gal(18.93 L) |
|---|
Closest alternatives
9345 compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the 9345 are the Allis Chalmers 6080 and the Fiat 850 Super. The Allis Chalmers 6080 matches it on rated power and weighs 2,150 lb less, carrying 70 lb per horsepower against 93 lb. The Fiat 850 Super matches it on rated power and weighs 1,150 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the 9345 has the highest weight per horsepower at 93 lb per hp.
| Spec | Belarus 9345 | Allis Chalmers 6080 | Fiat 850 Super |
|---|---|---|---|
| Engine power | 93.3 hp69.6 kW | 93 hp69.4 kW | 93.7 hp69.9 kW |
| Operating weight | 8,646 lb3,922 kg | 6,500 lb2,948 kg | 7,496 lb3,400 kg |
| Weight per hp | 93 lb/hp56 kg/kW | 70 lb/hp43 kg/kW | 80 lb/hp49 kg/kW |
| Displacement | 290 ci4.75 L | 200 ci3.28 L | 301.5 ci4.94 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Selective gear fixed ratio | Synchronized | Creeper |
| Drive | 4WD | 2WD | 2WD |
Calculators
Calculators for the 9345
PTO power
About 77 to 84 PTO hp
Estimated from the 93.33 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 93.33 hp tractor can run
Maximum size is about a 11 ft rotary cutter or a 9.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
108 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
93.33 hp is 69.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 16.9R38 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
9345 vs. Row Crop median
Belarus 9345 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 93.3 hp | 138 hp | -32% | 20th |
| Engine Displacement | 290 ci | 391 ci | -26% | 30th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 14 | 16 | -12% | 32nd |
| Operating Weight | 8,646 lb | 12,307 lb | -30% | 24th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 1,200–1,417 models).
Same manufacturer
Other Belarus models
Other manufacturers
Models with similar horsepower
Gallery

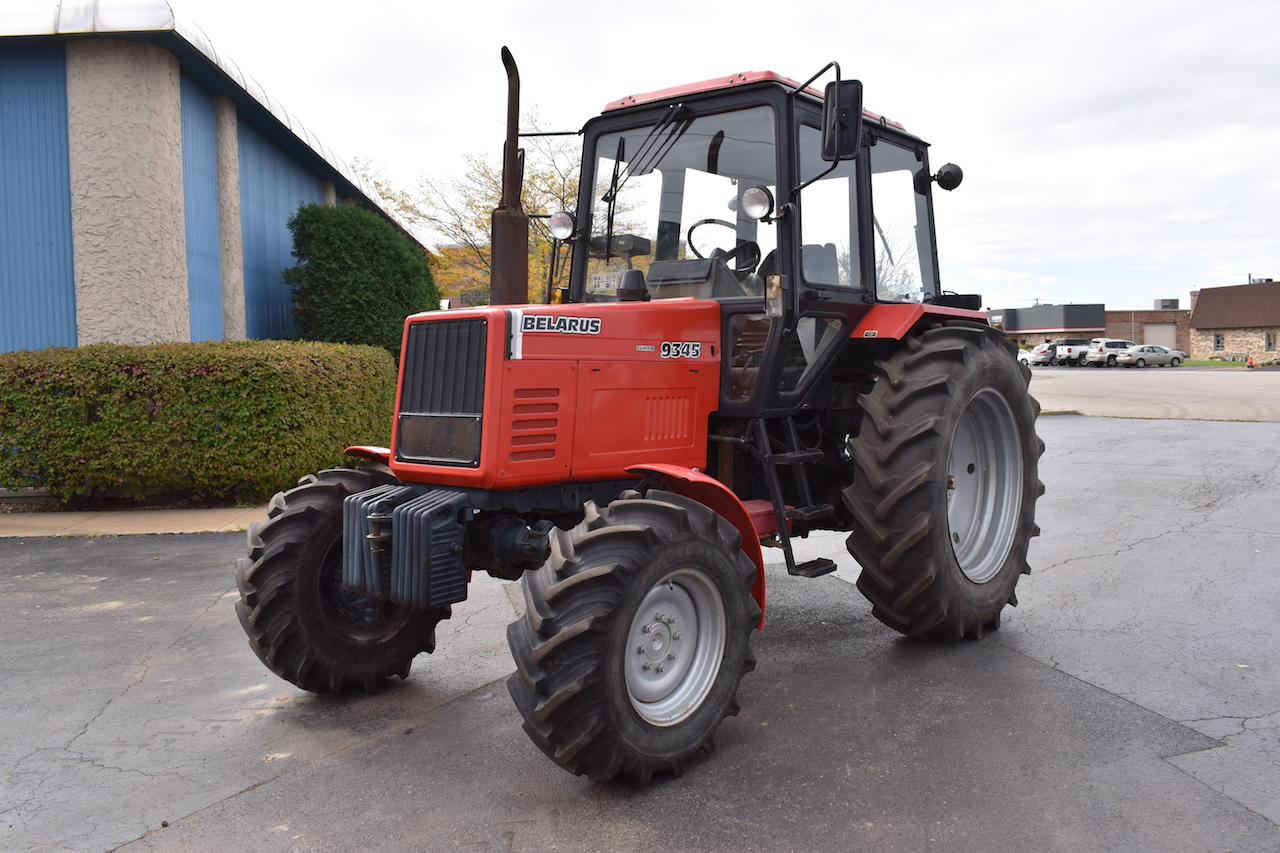

Belarus 9345 photos
FAQ
Frequently asked questions
What is the engine power output of the Belarus 9345?
Rated engine output for the Belarus 9345 is 93.33 hp, delivered by a 4-cylinder engine. The engine displaces 290 ci.
What is the operating weight of the Belarus 9345?
The Belarus 9345 has an operating weight of about 8,646 lb.
Which transmission does the Belarus 9345 use?
The Belarus 9345 is equipped with a Selective gear fixed ratio transmission with 14 forward gears.
What are the factory tire sizes for the Belarus 9345?
The Belarus 9345 comes with 360/70R20 front tires and 16.9R38 rear tires.
What three-point hitch category does the Belarus 9345 use?
The Belarus 9345 has a Category II three-point hitch.
How do I maintain a Belarus 9345?
Routine service for the Belarus 9345 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
