UtilityPerformance profile
Belarus MTZ-520
The Belarus MTZ-520 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong engine made by Belarus, with 4 cylinders and 67 horsepower. This tractor can handle big jobs on the farm, thanks to its sturdy build and 4x4 chassis. The MTZ-520 has a manual transmission with 9 forward gears and 2 reverse gears, giving the driver good control over speed and power. It has power steering, which makes it easier to turn and steer in tight spaces. The tractor weighs 7,254 pounds, making it heavy enough for serious fieldwork. It has special AG tires on both the front and back, which are great for gripping the soil.
ManufacturerBelarusPower67 hpEngine4-cylTransManual
Quick specs
- Category
- Utility
- Engine Power Output
- 67hp
- Operating Weight
- 7,254 lb
- Transmission
- Manual
At a glance
How the MTZ-520 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
67 hp · 61st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The MTZ-520 ranks at the 61st percentile for engine power among recorded utility tractors.
Overview
About the Belarus MTZ-520
The Belarus MTZ-520 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong engine made by Belarus, with 4 cylinders and 67 horsepower. This tractor can handle big jobs on the farm, thanks to its sturdy build and 4x4 chassis. The MTZ-520 has a manual transmission with 9 forward gears and 2 reverse gears, giving the driver good control over speed and power. It has power steering, which makes it easier to turn and steer in tight spaces. The tractor weighs 7,254 pounds, making it heavy enough for serious fieldwork. It has special AG tires on both the front and back, which are great for gripping the soil.
Full specifications
Every recorded spec
General
| Manufacturer | Belarus |
|---|---|
| Model | MTZ-520 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 7,254lb |
Engine
| Make | Belarus |
|---|---|
| Model | D60 |
| Power | 67hp |
| Cylinders | 4 |
| Displacement | 289.8ci |
| Bore | 4.33in |
| Stroke | 4.92in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 9 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power assist |
Dimensions
| Operating weight | 7,254lb |
|---|
Head to head
MTZ-520 vs. Utility median
How the Belarus MTZ-520 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 67 hp | 55 hp | +22% | 61st |
| Engine Displacement | 290 ci | 183 ci | +58% | 83rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 7,254 lb | 5,303 lb | +37% | 69th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,941–5,720 models).
Compare to tractors with similar specs
Commonly compared Belarus tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 611 | 67 hp | 7,694 lb | — | Compare → |
| Belarus MTZ-501 | 67 hp | 7,343 lb | — | Compare → |
| Belarus MTZ-521 | 67 hp | 7,695 lb | — | Compare → |
| Belarus MTZ-525 | 67 hp | 8,092 lb | — | Compare → |
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros 5500 | 67 hp | — | — | Compare → |
| Antonio Carraro SRX 8400 | 70 hp | 4,486 lb | — | Compare → |
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Barreiros 7000 | 70 hp | 5,335 lb | — | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
Explore
Belarus siblings
Explore
Similar-spec models
Gallery

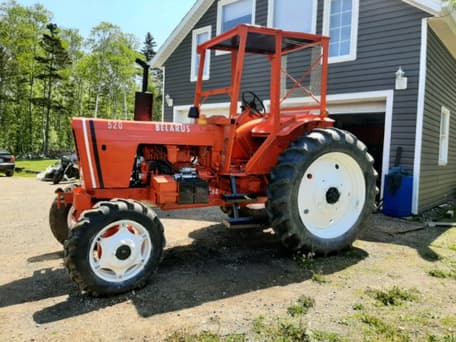

Belarus MTZ-520 photos
FAQ
Common questions
How much horsepower does the Belarus MTZ-520 have?
The Belarus MTZ-520 produces 67 hp from its 4-cylinder engine. Engine displacement is 289.8 ci.
How much does the Belarus MTZ-520 weigh?
The Belarus MTZ-520 weighs about 7,254 lb in operating condition.
What transmission is in the Belarus MTZ-520?
Transmission on the Belarus MTZ-520 is Manual, with 9 forward speeds.
What maintenance does the Belarus MTZ-520 require?
Like any tractor, the Belarus MTZ-520 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
