Branson 3120R
The Branson 3120R is a compact but capable tractor designed for various farming tasks. It features a hydrostatic power steering system, making it easy to maneuver in tight spaces. The tractor is powered by a Kukje A1500N2-R diesel engine with 3 cylinders and 31 horsepower. This engine is liquid-cooled and naturally aspirated, providing reliable performance for everyday farm work. The 3120R comes with a synchro shuttle transmission, offering 12 forward and 12 reverse gears. This gives operators plenty of options for different jobs and speeds. The tractor measures 130 inches long, 64 inches wide, and 97.9 inches tall, making it suitable for working in barns and between crop rows. It has a three-point hitch at the rear, which is category I, allowing it to connect to various implements. With an operating weight of 4,053 pounds, the Branson 3120R is sturdy enough for most small to medium farm tasks while still being compact and maneuverable.
ManufacturerBransonPower31 hpEngine3-cylTransSynchro shuttle
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 31hp
- Operating Weight
- 4,053 lb
- Transmission
- Synchro shuttle
At a glance
How the 3120R compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
31 hp · 59th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 3120R ranks at the 59th percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 3120R
The Branson 3120R is a compact but capable tractor designed for various farming tasks. It features a hydrostatic power steering system, making it easy to maneuver in tight spaces. The tractor is powered by a Kukje A1500N2-R diesel engine with 3 cylinders and 31 horsepower. This engine is liquid-cooled and naturally aspirated, providing reliable performance for everyday farm work. The 3120R comes with a synchro shuttle transmission, offering 12 forward and 12 reverse gears. This gives operators plenty of options for different jobs and speeds. The tractor measures 130 inches long, 64 inches wide, and 97.9 inches tall, making it suitable for working in barns and between crop rows. It has a three-point hitch at the rear, which is category I, allowing it to connect to various implements. With an operating weight of 4,053 pounds, the Branson 3120R is sturdy enough for most small to medium farm tasks while still being compact and maneuverable.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 3120R |
| Category | Sub-Compact tractor |
| Operating weight | 4,053lb |
Engine
| Make | Kukje |
|---|---|
| Model | A1500N2-R |
| Power | 31hp |
| Cylinders | 3 |
| Displacement | 95.3ci |
| Bore | 3.31in |
| Stroke | 3.7in |
Transmission
| Type | Synchro shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Steering | Hydrostatic power |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 130in |
|---|---|
| Width | 64in |
| Height | 97.9in |
| Operating weight | 4,053lb |
Head to head
3120R vs. Sub-Compact median
How the Branson 3120R compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 31 hp | 26.9 hp | +15% | 59th |
| Engine Displacement | 95.3 ci | 91.4 ci | +4% | 55th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 4,053 lb | 2,700 lb | +50% | 80th |
| Length | 130 in | 113 in | +15% | 79th |
| Width | 64 in | 50.7 in | +26% | 83rd |
| Height | 97.9 in | 78.4 in | +25% | 95th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 3110i | 31 hp | 3,735 lb | — | Compare → |
| Branson 3015R | 30 hp | 3,014 lb | — | Compare → |
| Branson 2800 | 28 hp | 2,023 lb | — | Compare → |
| Branson 2800 H | 28 hp | 2,023 lb | — | Compare → |
| Branson 3510 HST | 35 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5030 | 31 hp | 2,530 lb | 1979–1985 | Compare → |
| Allis Chalmers D12 | 31 hp | 2,800 lb | 1959–1968 | Compare → |
| Antonio Carraro Tigre 4000 | 31 hp | — | — | Compare → |
| Belarus 250AS | 31 hp | 6,614 lb | 1979–1987 | Compare → |
| Belarus Golfmaster | 31 hp | 5,155 lb | — | Compare → |
Explore
Branson siblings
Explore
Similar-spec models

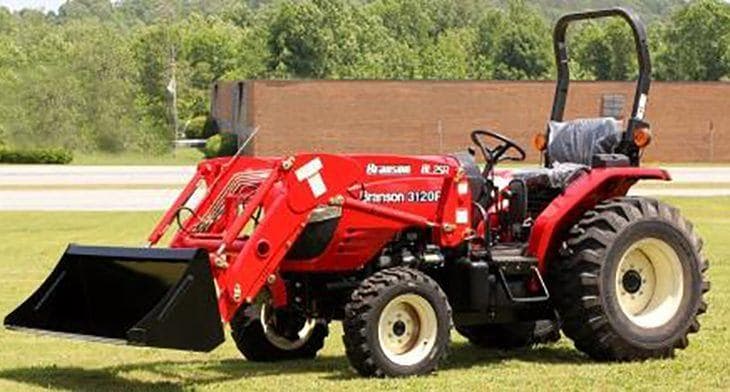

Gallery
Branson 3120R photos
FAQ
Common questions
How much horsepower does the Branson 3120R have?
The Branson 3120R produces 31 hp from its 3-cylinder engine. Engine displacement is 95.3 ci.
What hydraulics does the Branson 3120R have?
The Branson 3120R uses an Open Center hydraulic system.
What three-point hitch category does the Branson 3120R use?
The Branson 3120R has a Category I three-point hitch.
How much does the Branson 3120R weigh?
The Branson 3120R weighs about 4,053 lb in operating condition.
What transmission is in the Branson 3120R?
Transmission on the Branson 3120R is Synchro shuttle, with 12 forward speeds.
What maintenance does the Branson 3120R require?
Like any tractor, the Branson 3120R needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
