Sub-CompactPerformance profile
Branson 4520
The Branson 4520 is a powerful and versatile tractor designed for various farming tasks. It features a 4x4 MFWD 4WD chassis, giving it excellent traction and stability in different terrains. The tractor is equipped with hydrostatic power steering, making it easy to maneuver in tight spaces. Under the hood, the Branson 4520 boasts a Yanmar 4TNE-88 engine. This liquid-cooled diesel engine has 4 cylinders and produces 45 hp at 2600 rpm. The engine's displacement is 133.6 ci, with a bore of 3.465 in and a stroke of 3.543 in. The tractor's transmission is a 12-speed synchronized shuttle, offering 12 forward and 12 reverse gears for smooth operation in various conditions. With dimensions of 129.7 in length, 60 in width, and 86.4 in height, and an operating weight of 3624 lb, this tractor is compact yet sturdy enough for most farm jobs.
ManufacturerBransonPower45 hpEngine4-cylTrans12-speed synchronized shuttle
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 45hp
- Operating Weight
- 3,624 lb
- Transmission
- 12-speed synchronized shuttle
At a glance
How the 4520 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
45 hp · 83rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 4520 ranks at the 83rd percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 4520
The Branson 4520 is a powerful and versatile tractor designed for various farming tasks. It features a 4x4 MFWD 4WD chassis, giving it excellent traction and stability in different terrains. The tractor is equipped with hydrostatic power steering, making it easy to maneuver in tight spaces. Under the hood, the Branson 4520 boasts a Yanmar 4TNE-88 engine. This liquid-cooled diesel engine has 4 cylinders and produces 45 hp at 2600 rpm. The engine's displacement is 133.6 ci, with a bore of 3.465 in and a stroke of 3.543 in. The tractor's transmission is a 12-speed synchronized shuttle, offering 12 forward and 12 reverse gears for smooth operation in various conditions. With dimensions of 129.7 in length, 60 in width, and 86.4 in height, and an operating weight of 3624 lb, this tractor is compact yet sturdy enough for most farm jobs.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 4520 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,624lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 4TNE-88 |
| Power | 45hp |
| Cylinders | 4 |
| Displacement | 133.6ci |
| Bore | 3.47in |
| Stroke | 3.54in |
Transmission
| Type | 12-speed synchronized shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 129.7in |
|---|---|
| Width | 60in |
| Height | 86.4in |
| Operating weight | 3,624lb |
Head to head
4520 vs. Sub-Compact median
How the Branson 4520 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 45 hp | 26.9 hp | +68% | 83rd |
| Engine Displacement | 134 ci | 91.4 ci | +46% | 73rd |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 3,624 lb | 2,700 lb | +34% | 69th |
| Length | 130 in | 113 in | +14% | 77th |
| Width | 60 in | 50.7 in | +18% | 74th |
| Height | 86.4 in | 78.4 in | +10% | 64th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 4520R | 47 hp | 4,118 lb | — | Compare → |
| Branson 4720CH | 47 hp | 4,442 lb | — | Compare → |
| Branson 4720h | 47 hp | 4,116 lb | — | Compare → |
| Branson 4720i | 47 hp | 4,116 lb | — | Compare → |
| Branson 4815H | 47 hp | 3,278 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
| Apollo 454 | 45 hp | 4,365 lb | — | Compare → |
| Ascot Universal 445 | 45 hp | 4,500 lb | — | Compare → |
| Barreiros 5000 VR | 45 hp | 4,080 lb | — | Compare → |
| AGCO ST45 | 44.2 hp | 4,448 lb | — | Compare → |
Explore
Branson siblings
Explore
Similar-spec models
Gallery

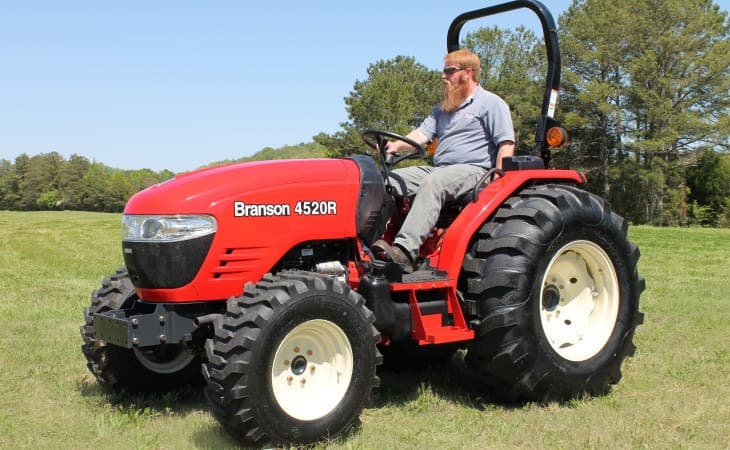

Branson 4520 photos
FAQ
Common questions
How powerful is the Branson 4520?
The Branson 4520 has an engine power output of 45 hp. It is powered by a 4-cylinder engine displacing 133.6 ci.
What hitch category is the Branson 4520?
The Branson 4520 uses a Category I hitch.
What is the working weight of the Branson 4520?
The operating weight of the Branson 4520 is approximately 3,624 lb.
What type of transmission does the Branson 4520 have?
The Branson 4520 uses a 12-speed synchronized shuttle transmission offering 12 forward gears.
What routine service does the Branson 4520 need?
Regular maintenance for the Branson 4520 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
