Sub-CompactPerformance profile
Branson 4720h
The Branson 4720h is a powerful and versatile tractor designed for various farming tasks. It features a 4x4 MFWD 4WD chassis, giving it excellent traction in different terrains. The tractor is equipped with hydrostatic power steering, making it easy to control and maneuver. Under the hood, the Branson 4720h boasts a Kukje A2300N2 engine. This liquid-cooled diesel engine has 4 cylinders and produces 47 hp at 2600 rpm. The tractor's transmission is hydrostatic with infinite forward and reverse gears in 3 ranges, allowing for smooth speed changes. It measures 124 inches long, 56 inches wide, and 97 inches tall, with an operating weight of 4116 lb. The three-point hitch is category I and can lift up to 2580 lb at 24 inches behind the lift points, making it suitable for a variety of implements.
ManufacturerBransonPower47 hpEngine4-cylTransHydrostatic
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 47hp
- Operating Weight
- 4,116 lb
- Transmission
- Hydrostatic
At a glance
How the 4720h compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
47 hp · 86th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 4720h ranks at the 86th percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 4720h
The Branson 4720h is a powerful and versatile tractor designed for various farming tasks. It features a 4x4 MFWD 4WD chassis, giving it excellent traction in different terrains. The tractor is equipped with hydrostatic power steering, making it easy to control and maneuver. Under the hood, the Branson 4720h boasts a Kukje A2300N2 engine. This liquid-cooled diesel engine has 4 cylinders and produces 47 hp at 2600 rpm. The tractor's transmission is hydrostatic with infinite forward and reverse gears in 3 ranges, allowing for smooth speed changes. It measures 124 inches long, 56 inches wide, and 97 inches tall, with an operating weight of 4116 lb. The three-point hitch is category I and can lift up to 2580 lb at 24 inches behind the lift points, making it suitable for a variety of implements.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 4720h |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 4,116lb |
Engine
| Make | Kukje |
|---|---|
| Model | A2300N2 |
| Power | 47hp |
| Cylinders | 4 |
| Displacement | 139.5ci |
| Bore | 3.46in |
| Stroke | 3.7in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 124in |
|---|---|
| Width | 56in |
| Height | 97in |
| Operating weight | 4,116lb |
Head to head
4720h vs. Sub-Compact median
How the Branson 4720h compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 47 hp | 26.9 hp | +75% | 86th |
| Engine Displacement | 140 ci | 91.4 ci | +53% | 78th |
| Cylinders | 4 | 3 | +33% | 90th |
| Operating Weight | 4,116 lb | 2,700 lb | +52% | 82nd |
| Length | 124 in | 113 in | +9% | 66th |
| Width | 56 in | 50.7 in | +10% | 64th |
| Height | 97 in | 78.4 in | +24% | 93rd |
| 3-Point Hitch Capacity | 2,580 lb | 1,433 lb | +80% | 82nd |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 97–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 4520R | 47 hp | 4,118 lb | — | Compare → |
| Branson 4720CH | 47 hp | 4,442 lb | — | Compare → |
| Branson 4720i | 47 hp | 4,116 lb | — | Compare → |
| Branson 4815H | 47 hp | 3,278 lb | — | Compare → |
| Branson 4815R | 47 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST47A | 47.5 hp | 3,600 lb | — | Compare → |
| AGCO ST60A | 46.4 hp | 4,078 lb | — | Compare → |
| Antonio Carraro Tigrone 5800 | 48 hp | 3,417 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 5800 | 48 hp | — | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
Explore
Branson siblings
Explore
Similar-spec models
Gallery

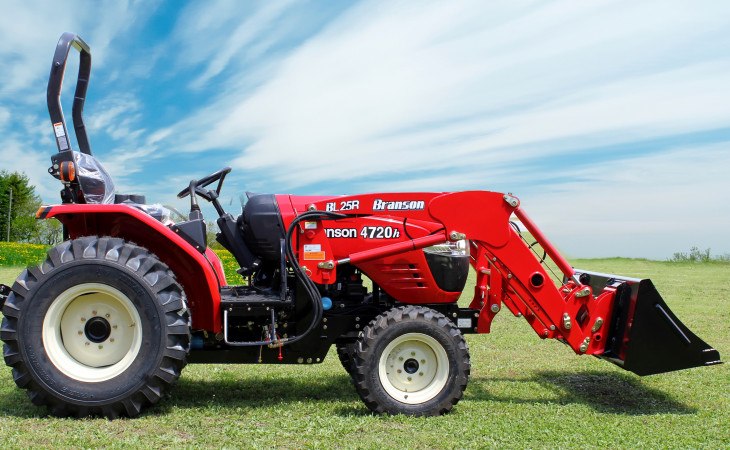

Branson 4720h photos
FAQ
Common questions
How much horsepower does the Branson 4720h have?
The Branson 4720h produces 47 hp from its 4-cylinder engine. Engine displacement is 139.5 ci.
How much does the Branson 4720h weigh?
The Branson 4720h weighs about 4,116 lb in operating condition.
What transmission is in the Branson 4720h?
Transmission on the Branson 4720h is Hydrostatic.
What hitch category is the Branson 4720h?
The Branson 4720h uses a Category I hitch with a lift capacity of 2,580 lb.
What maintenance does the Branson 4720h require?
Like any tractor, the Branson 4720h needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
