UtilityPerformance profile
Branson 4720
The Branson 4720 is a utility tractor built for tough jobs on the farm. It has a strong 4-wheel drive system and hydrostatic power steering, making it easy to control in various conditions. The tractor uses a synchromesh transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Branson 4720 has a Kukje A2300N2 diesel engine. This engine has 4 cylinders and is liquid-cooled to keep it running smoothly. It produces 40 horsepower, which is about average for tractors in its class. The engine size and power are suitable for many farm jobs without being too big or fuel-hungry. The tractor weighs 3,883 pounds, making it sturdy but not too heavy for most fields. It's 127 inches long, 61 inches wide, and 88 inches tall, so it can fit in many farm buildings and work in tight spaces.
ManufacturerBransonPower40 hpEngine4-cylTransSynchromesh Transmission
Quick specs
- Category
- Utility
- Engine Power Output
- 40hp
- Operating Weight
- 3,883 lb
- Transmission
- Synchromesh Transmission
At a glance
How the 4720 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
40 hp · 33rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 4720 ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the Branson 4720
The Branson 4720 is a utility tractor built for tough jobs on the farm. It has a strong 4-wheel drive system and hydrostatic power steering, making it easy to control in various conditions. The tractor uses a synchromesh transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Branson 4720 has a Kukje A2300N2 diesel engine. This engine has 4 cylinders and is liquid-cooled to keep it running smoothly. It produces 40 horsepower, which is about average for tractors in its class. The engine size and power are suitable for many farm jobs without being too big or fuel-hungry. The tractor weighs 3,883 pounds, making it sturdy but not too heavy for most fields. It's 127 inches long, 61 inches wide, and 88 inches tall, so it can fit in many farm buildings and work in tight spaces.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 4720 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,883lb |
Engine
| Make | Kukje |
|---|---|
| Model | A2300N2 |
| Power | 40hp |
| Cylinders | 4 |
| Displacement | 139ci |
| Bore | 3.47in |
| Stroke | 3.7in |
Transmission
| Type | Synchromesh Transmission |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 127in |
|---|---|
| Width | 61in |
| Height | 88in |
| Operating weight | 3,883lb |
Capacities
| Cooling system | 2.45gal |
|---|
Head to head
4720 vs. Utility median
How the Branson 4720 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 139 ci | 183 ci | -24% | 35th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,883 lb | 5,303 lb | -27% | 35th |
| Length | 127 in | 137 in | -7% | 37th |
| Width | 61 in | 66 in | -8% | 39th |
| Height | 88 in | 94.1 in | -6% | 37th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 4020R | 40 hp | 4,063 lb | — | Compare → |
| Branson 3820 | 38 hp | 3,770 lb | — | Compare → |
| Branson 4220 | 42 hp | 3,795 lb | — | Compare → |
| Branson F4350 | 43 hp | 3,891 lb | — | Compare → |
| Branson F3550 | 35.5 hp | 3,770 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Branson siblings
Explore
Similar-spec models
Gallery

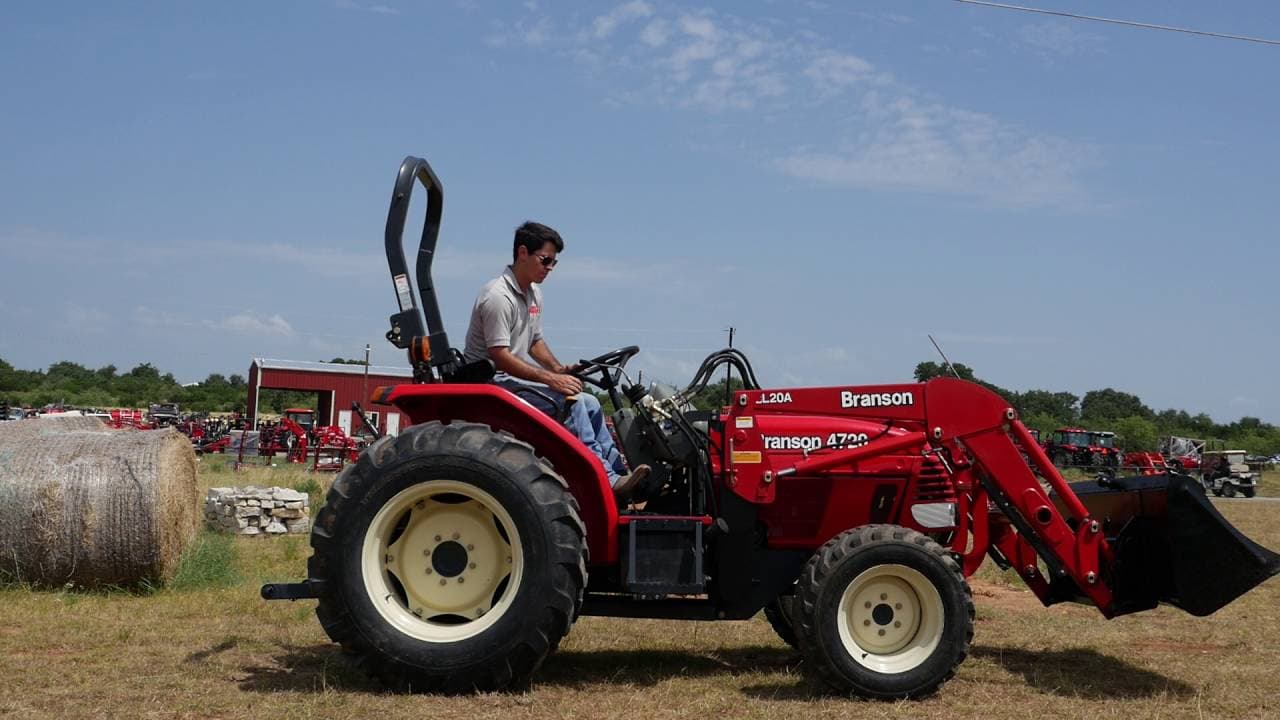

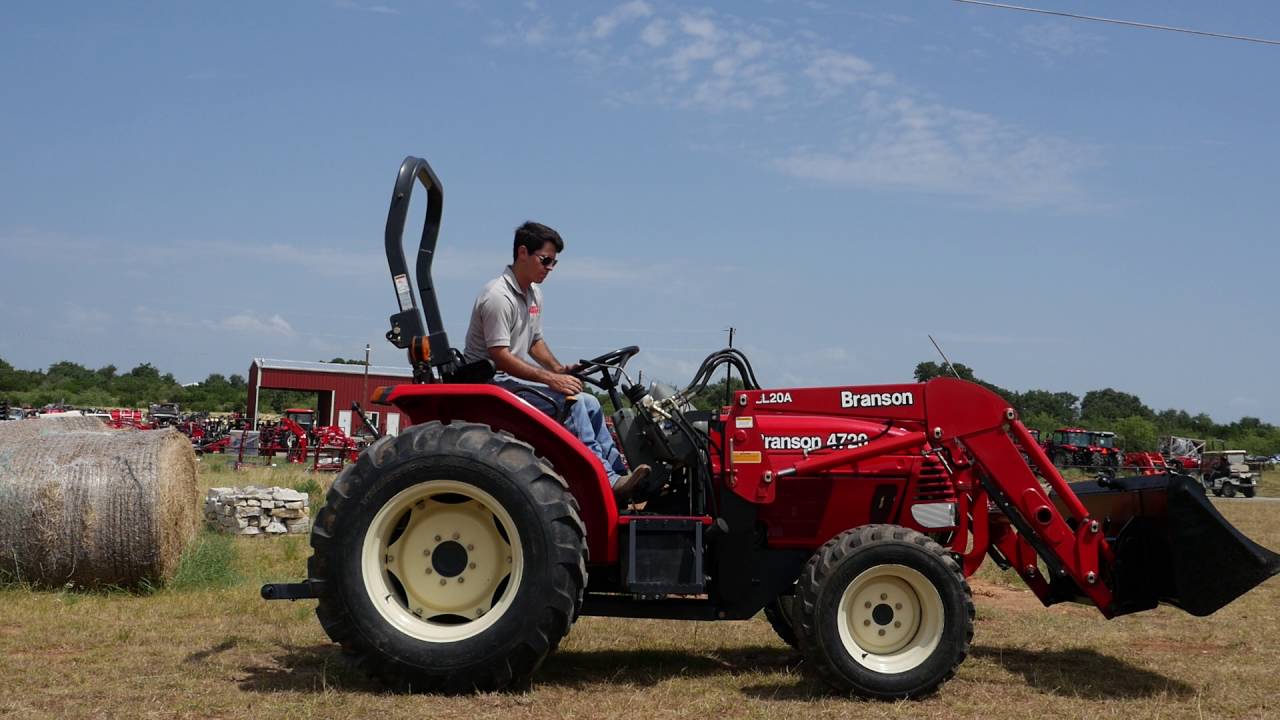

Branson 4720 photos
FAQ
Common questions
How much horsepower does the Branson 4720 have?
The Branson 4720 produces 40 hp from its 4-cylinder engine. Engine displacement is 139 ci.
What hitch category is the Branson 4720?
The Branson 4720 uses a Category I hitch.
How much does the Branson 4720 weigh?
The Branson 4720 weighs about 3,883 lb in operating condition.
What transmission is in the Branson 4720?
Transmission on the Branson 4720 is Synchromesh Transmission, with 12 forward speeds.
What type of hydraulic system does the Branson 4720 use?
Hydraulics on the Branson 4720 are Open Center.
What maintenance does the Branson 4720 require?
Like any tractor, the Branson 4720 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
