AgriculturalPerformance profile

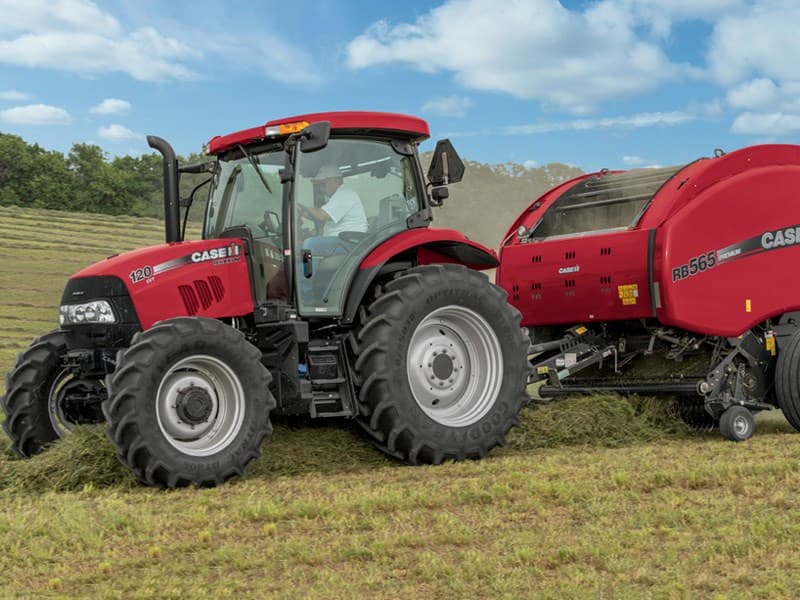

CaseIH CVX 120
The CaseIH CVX 120 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Sisu diesel engine with 6 cylinders and 120 horsepower. This engine uses a turbo to give it extra power when needed. The tractor can go forward and backward at many different speeds thanks to its special transmission. This tractor is big and sturdy, measuring 188.6 inches long and 119.7 inches tall. It weighs 13,825 pounds, which helps it grip the ground well. The CVX 120 has large agricultural tires, with 38-inch rear tires that can handle rough fields. It uses hydrostatic power steering, making it easy to turn and control even though it's a large machine. CaseIH is known for making reliable farm equipment, and the CVX 120 is no exception. It's designed to work hard all day long, whether plowing fields, planting crops, or hauling heavy loads. With its mix of power, size, and features, this tractor is a good choice for farmers who need a versatile machine for their daily tasks.
ManufacturerCaseIHPower120 hpEngine6-cylTransContinuously variable
Quick specs
- Category
- Agricultural
- Engine Power Output
- 120hp
- Operating Weight
- 13,825 lb
- Transmission
- Continuously variable
At a glance
How the CVX 120 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
120 hp · 57th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The CVX 120 ranks at the 57th percentile for engine power among recorded agricultural tractors.
Overview
About the CaseIH CVX 120
The CaseIH CVX 120 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Sisu diesel engine with 6 cylinders and 120 horsepower. This engine uses a turbo to give it extra power when needed. The tractor can go forward and backward at many different speeds thanks to its special transmission. This tractor is big and sturdy, measuring 188.6 inches long and 119.7 inches tall. It weighs 13,825 pounds, which helps it grip the ground well. The CVX 120 has large agricultural tires, with 38-inch rear tires that can handle rough fields. It uses hydrostatic power steering, making it easy to turn and control even though it's a large machine. CaseIH is known for making reliable farm equipment, and the CVX 120 is no exception. It's designed to work hard all day long, whether plowing fields, planting crops, or hauling heavy loads. With its mix of power, size, and features, this tractor is a good choice for farmers who need a versatile machine for their daily tasks.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | CVX 120 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 13,825lb |
Engine
| Make | Sisu |
|---|---|
| Model | 620.84 |
| Power | 120hp |
| Cylinders | 6 |
| Displacement | 402.5ci |
| Bore | 4.25in |
| Stroke | 4.72in |
Transmission
| Type | Continuously variable |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 188.6in |
|---|---|
| Height | 119.7in |
| Operating weight | 13,825lb |
Head to head
CVX 120 vs. Agricultural median
How the CaseIH CVX 120 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 120 hp | 110 hp | +9% | 57th |
| Engine Displacement | 403 ci | 336 ci | +20% | 67th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Operating Weight | 13,825 lb | 10,914 lb | +27% | 64th |
| Length | 189 in | 173 in | +9% | 70th |
| Height | 120 in | 111 in | +8% | 74th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH MX120 Maxxum | 120 hp | 11,300 lb | — | Compare → |
| CaseIH MXU115 | 116 hp | 11,840 lb | — | Compare → |
| CaseIH Farmall 115U | 115 hp | 9,370 lb | — | Compare → |
| CaseIH MXU110 | 115 hp | 9,568 lb | — | Compare → |
| CaseIH MXM130 Maxxum | 129 hp | 11,915 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agrinar T-120 | 119.3 hp | 4,580 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
| Allis Chalmers D21 Series II | 121 hp | 9,502 lb | 1965–1969 | Compare → |
| AGCO RT115 | 121.4 hp | 12,900 lb | — | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH CVX 120 photos
FAQ
Common questions
How powerful is the CaseIH CVX 120?
The CaseIH CVX 120 has an engine power output of 120 hp. It is powered by a 6-cylinder engine displacing 402.5 ci.
What type of transmission does the CaseIH CVX 120 have?
The CaseIH CVX 120 uses a Continuously variable transmission.
What is the working weight of the CaseIH CVX 120?
The operating weight of the CaseIH CVX 120 is approximately 13,825 lb.
What routine service does the CaseIH CVX 120 need?
Regular maintenance for the CaseIH CVX 120 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
