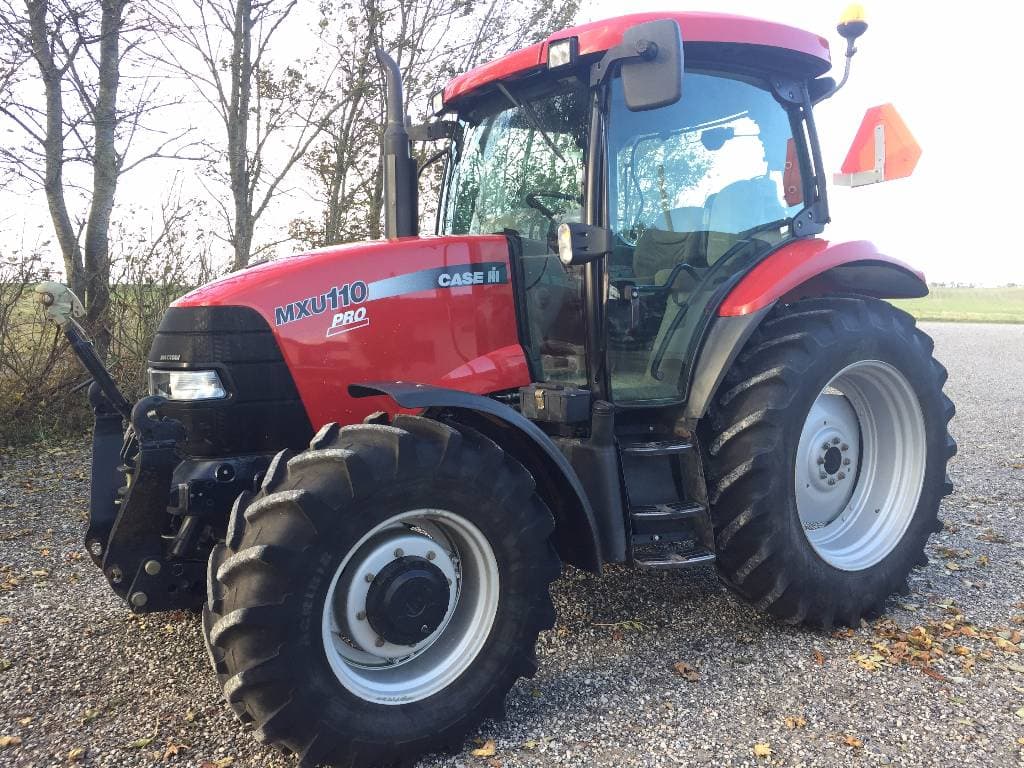

CaseIH MXU110
The CaseIH MXU110 is a powerful 2WD tractor designed for various farming tasks. It features a 115 hp diesel engine made by CNH, which is turbocharged and intercooled for better performance. The engine has 4 cylinders and a displacement of 273.7 ci, making it suitable for demanding agricultural work. This tractor comes with a partial powershift transmission, offering 24 forward and 24 reverse gears. This gives farmers plenty of options for different speeds and tasks. The MXU110 weighs 9,568 lb and has standard agricultural tires on both front and rear. It's equipped with a three-point hitch at the rear, which is category II, allowing for easy attachment of various implements. The CaseIH MXU110 has an open center hydraulic system and a ROPS (Roll-Over Protective Structure) for operator safety. It starts with an electric starter and runs on a 12-volt electrical system. This tractor is a reliable choice for farmers looking for a straightforward, capable machine to handle their daily farming needs.
ManufacturerCaseIHPower115 hpEngine4-cylTransPartial powershift
Quick specs
- Category
- Agricultural
- Engine Power Output
- 115hp
- Operating Weight
- 9,568 lb
- Transmission
- Partial powershift
At a glance
How the MXU110 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
115 hp · 53rd
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The MXU110 ranks at the 53rd percentile for engine power among recorded agricultural tractors.
Overview
About the CaseIH MXU110
The CaseIH MXU110 is a powerful 2WD tractor designed for various farming tasks. It features a 115 hp diesel engine made by CNH, which is turbocharged and intercooled for better performance. The engine has 4 cylinders and a displacement of 273.7 ci, making it suitable for demanding agricultural work. This tractor comes with a partial powershift transmission, offering 24 forward and 24 reverse gears. This gives farmers plenty of options for different speeds and tasks. The MXU110 weighs 9,568 lb and has standard agricultural tires on both front and rear. It's equipped with a three-point hitch at the rear, which is category II, allowing for easy attachment of various implements. The CaseIH MXU110 has an open center hydraulic system and a ROPS (Roll-Over Protective Structure) for operator safety. It starts with an electric starter and runs on a 12-volt electrical system. This tractor is a reliable choice for farmers looking for a straightforward, capable machine to handle their daily farming needs.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | MXU110 |
| Category | Agricultural tractor |
| Type | 2WD |
| Operating weight | 9,568lb |
Engine
| Make | CNH |
|---|---|
| Power | 115hp |
| Cylinders | 4 |
| Displacement | 273.7ci |
| Bore | 4.09in |
| Stroke | 5.2in |
Transmission
| Type | Partial powershift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | 2WD |
|---|---|
| Drive | 2WD |
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Operating weight | 9,568lb |
|---|
Head to head
MXU110 vs. Agricultural median
How the CaseIH MXU110 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 115 hp | 110 hp | +5% | 53rd |
| Engine Displacement | 274 ci | 336 ci | -18% | 40th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 9,568 lb | 10,914 lb | -12% | 42nd |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 971–1,130 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Farmall 115U | 115 hp | 9,370 lb | — | Compare → |
| CaseIH MXU115 | 116 hp | 11,840 lb | — | Compare → |
| CaseIH CVX 120 | 120 hp | 13,825 lb | — | Compare → |
| CaseIH Farmall 110M | 110 hp | — | — | Compare → |
| CaseIH MX110 Maxxum | 110 hp | 11,300 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1025 MIG | 115 hp | 9,469 lb | — | Compare → |
| AGCO RT110A | 116.9 hp | 12,200 lb | — | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
| Agco LT95A | 111.6 hp | 11,070 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH MXU110 photos
FAQ
Common questions
What is the engine power output of the CaseIH MXU110?
Rated engine output for the CaseIH MXU110 is 115 hp, delivered by a 4-cylinder engine. The engine displaces 273.7 ci.
What is the operating weight of the CaseIH MXU110?
In working trim, the CaseIH MXU110 comes in at roughly 9,568 lb.
Which transmission does the CaseIH MXU110 use?
The CaseIH MXU110 is equipped with a Partial powershift transmission with 24 forward gears.
What hydraulics does the CaseIH MXU110 have?
The CaseIH MXU110 uses an Open center hydraulic system.
What three-point hitch category does the CaseIH MXU110 use?
The CaseIH MXU110 has a Category II three-point hitch.
How do I maintain a CaseIH MXU110?
Routine service for the CaseIH MXU110 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
