CaseIH Farmall 40A Series II
The CaseIH Farmall 40A Series II is a versatile utility tractor designed for various farm tasks. It features a 4-wheel drive system, making it capable in different terrains. The tractor offers two transmission options: a mechanical shuttle with 12 forward and 12 reverse gears, and a hydrostatic transmission for smooth operation. Under the hood, this Farmall model is powered by a LS Mtron L3C19-T engine. It's a 3-cylinder, turbocharged diesel engine with liquid cooling. The engine has a displacement of 115 ci, which is below average for its class. However, it delivers a solid 40 hp at 2600 rpm, which is about average power for utility tractors. The tractor's compact size, measuring 145.2 inches long, 66.5 inches wide, and 88.2 inches high with ROPS, makes it easy to maneuver in tight spaces. With an operating weight of 3067 lb, it's on the lighter side compared to other tractors in its category. The Farmall 40A Series II comes equipped with a Category I rear hitch and an open center hydraulic system, suitable for a range of implements and attachments.

Key specifications
- Category
- Utility
- Engine power
- 40hp
- Operating weight
- 3,067 lb
- Transmission
- Mechanical Shuttle & Hydrostatic
Category comparison
Farmall 40A Series II compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The Farmall 40A Series II ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 40A Series II
The CaseIH Farmall 40A Series II is a versatile utility tractor designed for various farm tasks. It features a 4-wheel drive system, making it capable in different terrains. The tractor offers two transmission options: a mechanical shuttle with 12 forward and 12 reverse gears, and a hydrostatic transmission for smooth operation. Under the hood, this Farmall model is powered by a LS Mtron L3C19-T engine. It's a 3-cylinder, turbocharged diesel engine with liquid cooling. The engine has a displacement of 115 ci, which is below average for its class. However, it delivers a solid 40 hp at 2600 rpm, which is about average power for utility tractors. The tractor's compact size, measuring 145.2 inches long, 66.5 inches wide, and 88.2 inches high with ROPS, makes it easy to maneuver in tight spaces. With an operating weight of 3067 lb, it's on the lighter side compared to other tractors in its category. The Farmall 40A Series II comes equipped with a Category I rear hitch and an open center hydraulic system, suitable for a range of implements and attachments.
Full specifications
Recorded specifications
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 40A Series II |
| Category | Utility tractor |
| Type | 4WD |
| Operating weight | 3,067lb(1,391 kg) |
Engine
| Make | LS Mtron |
|---|---|
| Model | L3C19-T |
| Power | 40hp(29.83 kW) |
| Cylinders | 3 |
| Displacement | 115ci(1.89 L) |
| Bore | 3.47in(88.01 mm) |
| Stroke | 4.06in(103 mm) |
Transmission
| Type | Mechanical Shuttle & Hydrostatic |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4WD |
|---|---|
| Drive | 4-Wheel Drive |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 145.2in(3,688 mm) |
|---|---|
| Width | 66.5in(1,689 mm) |
| Height | 88.2in(2,240 mm) |
| Operating weight | 3,067lb(1,391 kg) |
Closest alternatives
Farmall 40A Series II compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the Farmall 40A Series II are the CaseIH D40 and the CaseIH DX40. The CaseIH D40 matches it on rated power and weighs 70 lb less. The CaseIH DX40 matches it on rated power and weighs 260 lb more, so it carries more weight per horsepower, which helps traction in draft work.
| Spec | CaseIH Farmall 40A Series II | CaseIH D40 | CaseIH DX40 |
|---|---|---|---|
| Engine power | 40 hp29.8 kW | 40 hp29.8 kW | 40 hp29.8 kW |
| Operating weight | 3,067 lb1,391 kg | 2,998 lb1,360 kg | 3,328 lb1,510 kg |
| Weight per hp | 77 lb/hp47 kg/kW | 75 lb/hp46 kg/kW | 83 lb/hp51 kg/kW |
| Displacement | 115 ci1.88 L | 121.7 ci1.99 L | 121.7 ci1.99 L |
| Cylinders | 3 | 4 | 4 |
| Transmission | Mechanical Shuttle & Hydrostatic | Synchronized Shuttle | Hydrostatic |
| Drive | 4-Wheel Drive | 2WD | 4WD |
Calculators
Calculators for the Farmall 40A Series II
PTO power
About 33 to 36 PTO hp
Estimated from the 40 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 40 hp tractor can run
Maximum size is about a 5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
89 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
40 hp is 29.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the CaseIH Farmall 40A Series II
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the LS Mtron L3C19-TAmazon
Fits the LS Mtron L3C19-T 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the LS Mtron L3C19-TAmazon
Fits the LS Mtron L3C19-T 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the LS Mtron L3C19-TAmazon
Fits the LS Mtron L3C19-T 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the LS Mtron L3C19-TAmazon
Fits the LS Mtron L3C19-T 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- CaseIH Farmall 40A Series II service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- CaseIH Farmall 40A Series II operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- CaseIH Farmall 40A Series II service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Farmall 40A Series II vs. Utility median
CaseIH Farmall 40A Series II compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 115 ci | 183 ci | -37% | 28th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,067 lb | 5,303 lb | -42% | 24th |
| Length | 145 in | 137 in | +6% | 61st |
| Width | 66.5 in | 66 in | +1% | 51st |
| Height | 88.2 in | 94.1 in | -6% | 38th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other CaseIH models
Other manufacturers
Models with similar horsepower
Gallery

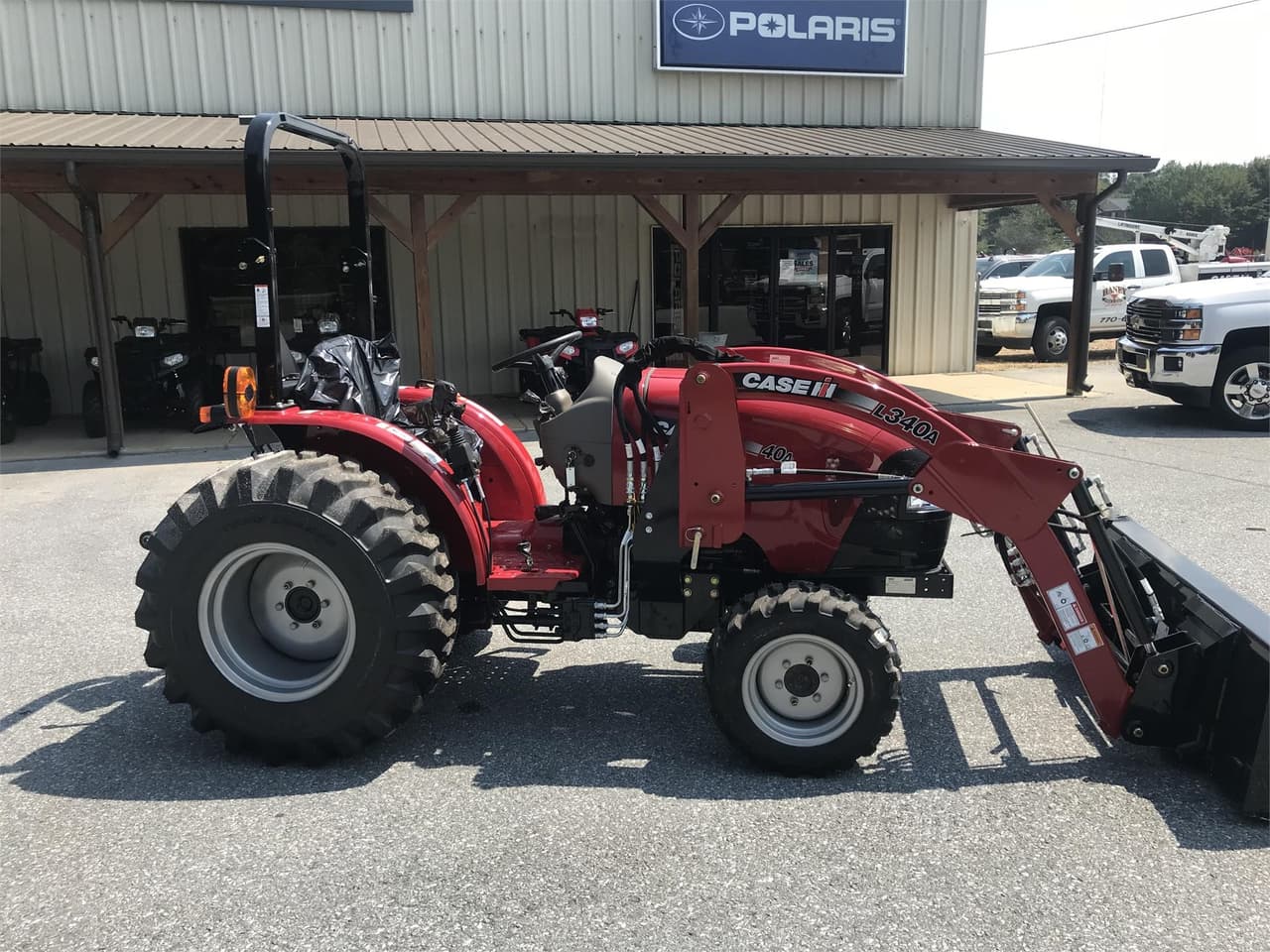

CaseIH Farmall 40A Series II photos





FAQ
Frequently asked questions
How much horsepower does the CaseIH Farmall 40A Series II have?
The CaseIH Farmall 40A Series II produces 40 hp from its 3-cylinder engine. Engine displacement is 115 ci.
What hydraulics does the CaseIH Farmall 40A Series II have?
The CaseIH Farmall 40A Series II uses an Open Center hydraulic system.
What three-point hitch category does the CaseIH Farmall 40A Series II use?
The CaseIH Farmall 40A Series II has a Category I three-point hitch.
How much does the CaseIH Farmall 40A Series II weigh?
The CaseIH Farmall 40A Series II weighs about 3,067 lb in operating condition.
What transmission is in the CaseIH Farmall 40A Series II?
Transmission on the CaseIH Farmall 40A Series II is Mechanical Shuttle & Hydrostatic, with 12 forward speeds.
What maintenance does the CaseIH Farmall 40A Series II require?
The CaseIH Farmall 40A Series II needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
