CaseIH Farmall 35B

CaseIH Farmall 35B

Complete specifications and technical data for the CaseIH Farmall 35B. Compare with similar tractors from CaseIH and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

38hp

Operating Weight

3,200 lb

Transmission

12-speed partially synchronized and hydrostatic

The CaseIH Farmall 35B is a compact utility tractor built for versatile farm work. It has a 4x4 MFWD drive system, which means it can handle tough terrain. The tractor is powered by a Mitsubishi S4L2 ...

Photo Gallery

Image Gallery

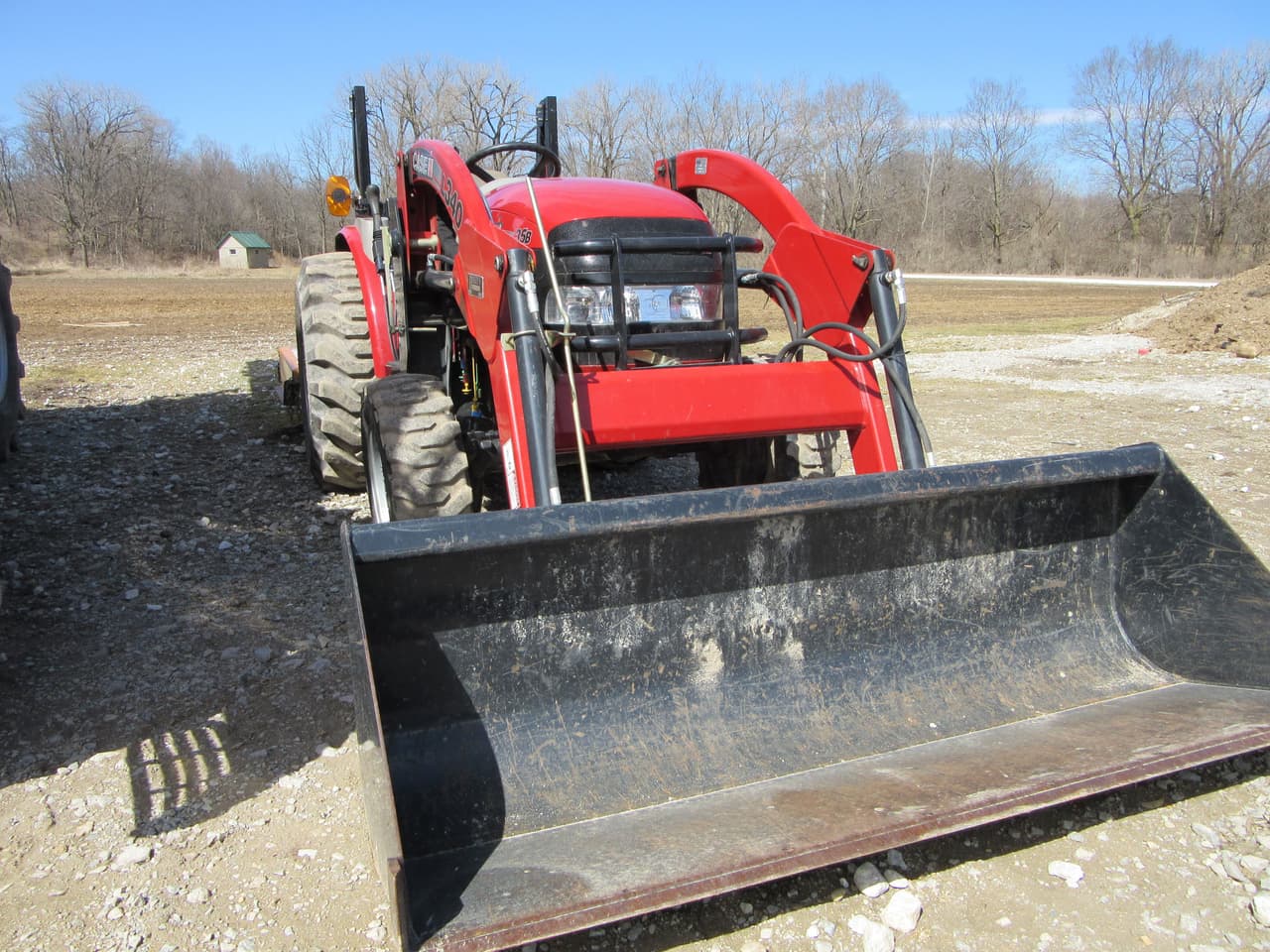

CaseIH Farmall 35B Tractor
CaseIH Farmall 35B Tractor
CaseIH Farmall 35B Tractor

Specifications

Manufacturer
CaseIH
Model
Farmall 35B
Category
Utility
Manufacturer
Mitsubishi
Model
S4L2
Power Output
38hp
Rated RPM
2,700RPM
Cylinders
4
Displacement
107ci

Engine Power Output Comparison of CaseIH Farmall 35B vs. Other Utility Tractors

Loading Chart...

Type
12-speed partially synchronized and hydrostatic
Length
119in
Height
91in
Operating Weight
3,200lb

Operating Weight Comparison of CaseIH Farmall 35B vs. Other Utility Tractors

Loading Chart...

System Type
Open center
Steering Type
Hydrostatic power
Hitch Category
1
Hitch Position
Rear
Chassis Type
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Type
ROPS

Compare to Other Tractors

Frequently Asked Questions

What is the engine power output of the CaseIH Farmall 35B?

The CaseIH Farmall 35B has an engine power output of 38 hp.

How many cylinders does the CaseIH Farmall 35B have?

The CaseIH Farmall 35B is equipped with a 4-cylinder engine.

What is the operating weight of the CaseIH Farmall 35B?

The operating weight of the CaseIH Farmall 35B is approximately 3,200 lb.

What type of transmission does the CaseIH Farmall 35B have?

The CaseIH Farmall 35B is equipped with a 12-speed partially synchronized and hydrostatic transmission.

What type of hydraulic system does the CaseIH Farmall 35B use?

The CaseIH Farmall 35B uses a Open center hydraulic system.

What hitch category is the CaseIH Farmall 35B?

The CaseIH Farmall 35B is a Category 1 hitch.

What maintenance does the CaseIH Farmall 35B require?

Regular maintenance for the CaseIH Farmall 35B includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
