UtilityPerformance profile
CaseIH JXU 75
The CaseIH JXU 75 is a utility tractor built for versatility on the farm. It features a 2WD drive system and power steering, making it easy to maneuver in various conditions. The tractor comes with a mechanical shuttle transmission that offers 12 forward and 12 reverse gears, giving operators plenty of options for different tasks. Under the hood, the JXU 75 boasts an Iveco NEF F4C engine. This 4-cylinder diesel engine is turbocharged and intercooled, providing a solid 75.1 hp of power. The engine has a very high displacement for its class, which means it can handle tough jobs with ease. It's also liquid-cooled to keep things running smoothly. The tractor weighs 8,929 lb, which is on the heavier side for its category, offering good stability. Farmers can choose between a ROPS or cab version, depending on their needs and comfort preferences. With its mix of power and versatility, the CaseIH JXU 75 is a dependable choice for various farm tasks.
ManufacturerCaseIHPower75.1 hpEngine4-cylTransMechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 75hp
- Operating Weight
- 8,929 lb
- Transmission
- Mechanical shuttle
At a glance
How the JXU 75 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
75.1 hp · 68th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The JXU 75 ranks at the 68th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH JXU 75
The CaseIH JXU 75 is a utility tractor built for versatility on the farm. It features a 2WD drive system and power steering, making it easy to maneuver in various conditions. The tractor comes with a mechanical shuttle transmission that offers 12 forward and 12 reverse gears, giving operators plenty of options for different tasks. Under the hood, the JXU 75 boasts an Iveco NEF F4C engine. This 4-cylinder diesel engine is turbocharged and intercooled, providing a solid 75.1 hp of power. The engine has a very high displacement for its class, which means it can handle tough jobs with ease. It's also liquid-cooled to keep things running smoothly. The tractor weighs 8,929 lb, which is on the heavier side for its category, offering good stability. Farmers can choose between a ROPS or cab version, depending on their needs and comfort preferences. With its mix of power and versatility, the CaseIH JXU 75 is a dependable choice for various farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | JXU 75 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 8,929lb |
Engine
| Make | Iveco |
|---|---|
| Model | NEF F4C |
| Power | 75.1hp |
| Cylinders | 4 |
| Displacement | 273.7ci |
| Bore | 4.09in |
| Stroke | 5.2in |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | Available with ROPS or cab |
Dimensions
| Length | 162.2in |
|---|---|
| Operating weight | 8,929lb |
Tires
| Front | 16-Sep |
|---|---|
| Rear | 18.4-30 |
Head to head
JXU 75 vs. Utility median
How the CaseIH JXU 75 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 75.1 hp | 55 hp | +37% | 68th |
| Engine Displacement | 274 ci | 183 ci | +49% | 79th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 8,929 lb | 5,303 lb | +68% | 81st |
| Length | 162 in | 137 in | +19% | 79th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,659–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH CS 75 | 75 hp | 6,834 lb | — | Compare → |
| CaseIH JX1075C | 75 hp | 6,085 lb | — | Compare → |
| CaseIH PJ75 | 75 hp | 5,677 lb | — | Compare → |
| CaseIH Farmall 75C | 76 hp | 5,776 lb | — | Compare → |
| CaseIH Farmall 75C (2008-2013) | 76 hp | — | 2008–2013 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

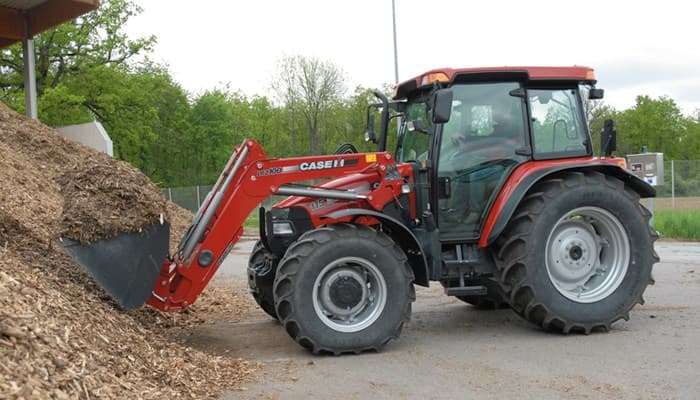

CaseIH JXU 75 photos
FAQ
Common questions
How powerful is the CaseIH JXU 75?
The CaseIH JXU 75 has an engine power output of 75.1 hp. It is powered by a 4-cylinder engine displacing 273.7 ci.
What are the factory tire sizes for the CaseIH JXU 75?
The CaseIH JXU 75 comes with 16-Sep front tires and 18.4-30 rear tires.
What is the working weight of the CaseIH JXU 75?
The operating weight of the CaseIH JXU 75 is approximately 8,929 lb.
What type of transmission does the CaseIH JXU 75 have?
The CaseIH JXU 75 uses a Mechanical shuttle transmission offering 12 forward gears.
What routine service does the CaseIH JXU 75 need?
Regular maintenance for the CaseIH JXU 75 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
