Same brandCaseIH Steiger 420 Rowtrac
The CaseIH Steiger 420 Rowtrac is a powerful row crop tractor built for big farms. It has a very strong engine made by FPT, with 420 horsepower. This tractor is big and heavy, weighing 43,510 pounds. It has tracks instead of wheels, which helps it move better in fields. The Steiger 420 Rowtrac has a lot of features that make it good for farming. It has a full power shift transmission with 16 forward gears and 2 reverse gears. This helps the driver change speeds easily. The tractor also has a special hydraulic system that helps it lift heavy tools. Inside, there's a comfortable cab for the driver. The engine is very big compared to other tractors, and it uses diesel fuel. It also has special parts to help control emissions and keep the air clean.

Key specifications
- Category
- Row Crop
- Engine power
- 420hp
- Operating weight
- 43,510 lb
- Transmission
- Full Power Shift
Category comparison
Steiger 420 Rowtrac compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
This model
The Steiger 420 Rowtrac ranks at the 99th percentile for engine power among recorded row crop tractors.
Overview
About the CaseIH Steiger 420 Rowtrac
The CaseIH Steiger 420 Rowtrac is a powerful row crop tractor built for big farms. It has a very strong engine made by FPT, with 420 horsepower. This tractor is big and heavy, weighing 43,510 pounds. It has tracks instead of wheels, which helps it move better in fields. The Steiger 420 Rowtrac has a lot of features that make it good for farming. It has a full power shift transmission with 16 forward gears and 2 reverse gears. This helps the driver change speeds easily. The tractor also has a special hydraulic system that helps it lift heavy tools. Inside, there's a comfortable cab for the driver. The engine is very big compared to other tractors, and it uses diesel fuel. It also has special parts to help control emissions and keep the air clean.
Full specifications
Recorded specifications
General
| Manufacturer | CaseIH |
|---|---|
| Model | Steiger 420 Rowtrac |
| Category | Row Crop tractor |
| Operating weight | 43,510lb(19,740 kg) |
Engine
| Make | FPT |
|---|---|
| Power | 420hp(313.2 kW) |
| Cylinders | 6 |
| Displacement | 787ci(12.9 L) |
| Bore | 5.31in(134.9 mm) |
| Stroke | 5.91in(150.1 mm) |
Transmission
| Type | Full Power Shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Steering | Hydraulic Articulated |
|---|---|
| Cab | Cab |
Hydraulics
| Type | Pressure Flow Compensated |
|---|
Dimensions
| Length | 315in(8,001 mm) |
|---|---|
| Width | 96in(2,438 mm) |
| Height | 151.3in(3,843 mm) |
| Operating weight | 43,510lb(19,740 kg) |
Closest alternatives
Steiger 420 Rowtrac compared with the nearest models by horsepower
The closest row crop models to the CaseIH Steiger 420 Rowtrac by rated horsepower are the Fendt 1042 Vario and the CaseIH Magnum 380. The Fendt 1042 Vario matches it on rated power and weighs 12,650 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The CaseIH Magnum 380 is rated 5 hp lower and weighs 11,310 lb less, carrying 78 lb per horsepower against 104 lb. Of the 3 models, the Steiger 420 Rowtrac has the highest weight per horsepower at 104 lb per hp.
| Spec | CaseIH Steiger 420 Rowtrac | Fendt 1042 Vario | CaseIH Magnum 380 |
|---|---|---|---|
| Engine power | 420 hp313.2 kW | 420 hp313.2 kW | 415 hp309.5 kW |
| Operating weight | 43,510 lb19,736 kg | 30,865 lb14,000 kg | 32,200 lb14,606 kg |
| Weight per hp | 104 lb/hp63 kg/kW | 73 lb/hp45 kg/kW | 78 lb/hp47 kg/kW |
| Displacement | 787 ci12.9 L | 757.9 ci12.42 L | 531 ci8.7 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Full Power Shift | CVT | Continuously variable transmission (CVT) |
| Drive | - | 4WD | 4WD |
Calculators
Calculators for the Steiger 420 Rowtrac
PTO power
About 349 to 378 PTO hp
Estimated from the 420 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 420 hp tractor can run
Maximum size is about a 50 ft rotary cutter or a 42.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
120 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
420 hp is 313.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the CaseIH Steiger 420 Rowtrac
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- CaseIH Steiger 420 Rowtrac service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- CaseIH Steiger 420 Rowtrac operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- CaseIH Steiger 420 Rowtrac service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Steiger 420 Rowtrac vs. Row Crop median
CaseIH Steiger 420 Rowtrac compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 420 hp | 138 hp | +204% | 99th |
| Engine Displacement | 787 ci | 391 ci | +101% | 99th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 43,510 lb | 12,307 lb | +254% | 99th |
| Length | 315 in | 180 in | +75% | 99th |
| Width | 96 in | 91.2 in | +5% | 70th |
| Height | 151 in | 114 in | +33% | 99th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other CaseIH models
Other manufacturers
Models with similar horsepower
Gallery

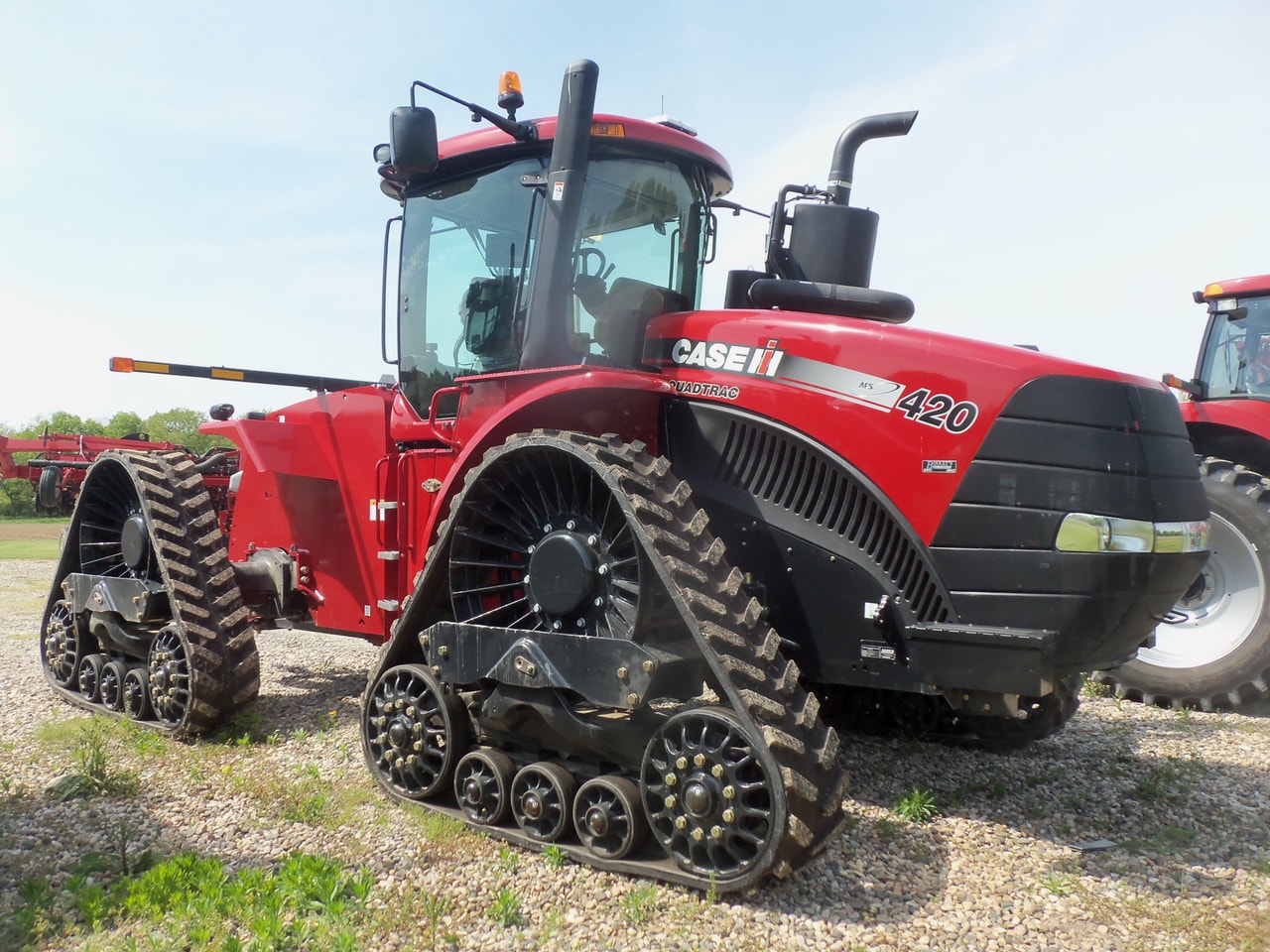

CaseIH Steiger 420 Rowtrac photos




FAQ
Frequently asked questions
How much horsepower does the CaseIH Steiger 420 Rowtrac have?
The CaseIH Steiger 420 Rowtrac produces 420 hp from its 6-cylinder engine. Engine displacement is 787 ci.
How much does the CaseIH Steiger 420 Rowtrac weigh?
The CaseIH Steiger 420 Rowtrac weighs about 43,510 lb in operating condition.
What transmission is in the CaseIH Steiger 420 Rowtrac?
Transmission on the CaseIH Steiger 420 Rowtrac is Full Power Shift, with 16 forward speeds.
What type of hydraulic system does the CaseIH Steiger 420 Rowtrac use?
Hydraulics on the CaseIH Steiger 420 Rowtrac are Pressure Flow Compensated.
What maintenance does the CaseIH Steiger 420 Rowtrac require?
The CaseIH Steiger 420 Rowtrac needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
