ArticulatedPerformance profile
CaseIH Steiger 620 Quadtrac
The CaseIH Steiger 620 Quadtrac is a powerful tractor built for heavy-duty farming tasks. It features a unique Quadtrac drive system and hydraulic articulated steering, making it easy to maneuver in tough conditions. The tractor has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver plenty of options for different jobs. Under the hood, the Steiger 620 Quadtrac boasts a mighty FPT diesel engine. This 6-cylinder engine is liquid-cooled and has a very high displacement of 787 cubic inches. It uses a two-stage turbocharger system to boost power, delivering an impressive 620 horsepower at 2100 RPM. The tractor is also equipped with a pressure flow compensated hydraulic system and a category IVN hitch, making it suitable for handling large implements. With its electric starter and hydraulically-driven cooling fan, this CaseIH tractor combines power and modern features to tackle the toughest farming jobs.
ManufacturerCaseIHPower620 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Articulated
- Engine Power Output
- 620hp
- Operating Weight
- 60,145 lb
- Transmission
- Full power shift
At a glance
How the Steiger 620 Quadtrac compares
vs. Articulated medianDistribution
Engine Power (hp)
Across all Articulated tractors
620 hp · 99th
This model
180
Median 450 hp
541
This modelArticulated tractorsMediann = 62
The Steiger 620 Quadtrac ranks at the 99th percentile for engine power among recorded articulated tractors.
Overview
About the CaseIH Steiger 620 Quadtrac
The CaseIH Steiger 620 Quadtrac is a powerful tractor built for heavy-duty farming tasks. It features a unique Quadtrac drive system and hydraulic articulated steering, making it easy to maneuver in tough conditions. The tractor has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver plenty of options for different jobs. Under the hood, the Steiger 620 Quadtrac boasts a mighty FPT diesel engine. This 6-cylinder engine is liquid-cooled and has a very high displacement of 787 cubic inches. It uses a two-stage turbocharger system to boost power, delivering an impressive 620 horsepower at 2100 RPM. The tractor is also equipped with a pressure flow compensated hydraulic system and a category IVN hitch, making it suitable for handling large implements. With its electric starter and hydraulically-driven cooling fan, this CaseIH tractor combines power and modern features to tackle the toughest farming jobs.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Steiger 620 Quadtrac |
| Category | Articulated tractor |
| Type | Quadtrac |
| Operating weight | 60,145lb |
Engine
| Make | FPT |
|---|---|
| Power | 620hp |
| Cylinders | 6 |
| Displacement | 787ci |
| Bore | 5.31in |
| Stroke | 5.91in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Drive | Quadtrac |
|---|---|
| Steering | Hydraulic articulated |
Hydraulics
| Type | Pressure Flow Compensated |
|---|
Dimensions
| Width | 30in |
|---|---|
| Operating weight | 60,145lb |
Head to head
Steiger 620 Quadtrac vs. Articulated median
How the CaseIH Steiger 620 Quadtrac compares to other Articulated tractors
| Spec | This model | Articulated median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 620 hp | 450 hp | +38% | 99th |
| Engine Displacement | 787 ci | 827 ci | -5% | 37th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 60,145 lb | 51,335 lb | +17% | 99th |
| Width | 30 in | 100 in | -70% | 4th |
Medians and percentiles are computed from the articulated tractors in our database with a recorded value for each spec (sample sizes 41–62 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Steiger 600 Quadtrac | 600 hp | 53,804 lb | — | Compare → |
| CaseIH Steiger 580 Quadtrac | 580 hp | 48,780 lb | — | Compare → |
| CaseIH Steiger 550 Quadtrac | 550 hp | 53,804 lb | — | Compare → |
| CaseIH Quadtrac Steiger 530QT | 535 hp | 52,410 lb | — | Compare → |
| CaseIH Steiger 535QT Quadtrac | 535 hp | 52,410 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Challenger MT862 | 610.2 hp | 42,000 lb | — | Compare → |
| Fendt 1162 Vario MT | 610.2 hp | 43,260 lb | — | Compare → |
| Fendt 1167 Vario MT | 604.95 hp | 43,840 lb | — | Compare → |
| Baldwin DP600 | 600 hp | — | — | Compare → |
| Big Bud 600/50 | 600 hp | — | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Similar spec
Similar spec
Similar specGallery

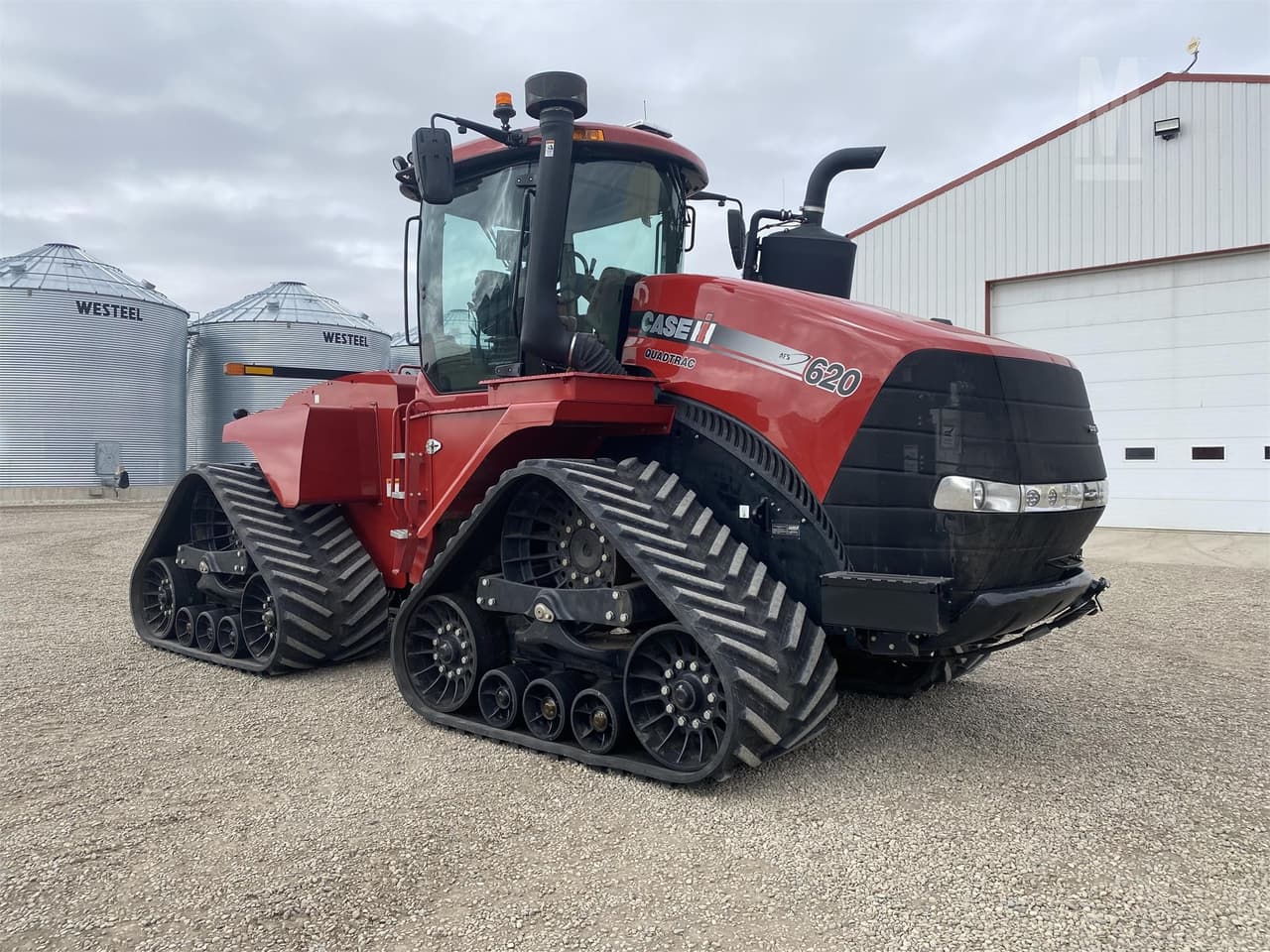

CaseIH Steiger 620 Quadtrac photos
FAQ
Common questions
What is the engine power output of the CaseIH Steiger 620 Quadtrac?
Rated engine output for the CaseIH Steiger 620 Quadtrac is 620 hp, delivered by a 6-cylinder engine. The engine displaces 787 ci.
What is the operating weight of the CaseIH Steiger 620 Quadtrac?
In working trim, the CaseIH Steiger 620 Quadtrac comes in at roughly 60,145 lb.
Which transmission does the CaseIH Steiger 620 Quadtrac use?
The CaseIH Steiger 620 Quadtrac is equipped with a Full power shift transmission with 16 forward gears.
What hydraulics does the CaseIH Steiger 620 Quadtrac have?
The CaseIH Steiger 620 Quadtrac uses a Pressure Flow Compensated hydraulic system.
What three-point hitch category does the CaseIH Steiger 620 Quadtrac use?
The CaseIH Steiger 620 Quadtrac has a Category IVN three-point hitch.
How do I maintain a CaseIH Steiger 620 Quadtrac?
Routine service for the CaseIH Steiger 620 Quadtrac covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
