Same brandCaterpillar 416E
The Caterpillar 416E is a versatile backhoe loader built for tough jobs. It has a strong 4-cylinder diesel engine that puts out 74 horsepower. This 2WD tractor is great for digging, loading, and moving materials on construction sites or farms. The 416E is big and sturdy, measuring about 24 feet long and 7.5 feet wide. It weighs nearly 15,000 pounds, which helps it stay stable during heavy work. The tractor has a comfortable cab with heat and air conditioning to keep the driver safe and comfy. It also has strong brakes and smooth steering to make it easy to control. With its powerful hydraulic system and four-speed transmission, the 416E can handle many tough tasks with ease.

Key specifications
- Category
- Specialized
- Engine power
- 74hp
- Operating weight
- 14,980 lb
- Transmission
- Power shuttle
Category comparison
416E compared with its category
vs. Specialized medianDistribution
Engine Power (hp)
All recorded Specialized tractors
This model
The 416E ranks at the 62nd percentile for engine power among recorded specialized tractors.
Overview
About the Caterpillar 416E
The Caterpillar 416E is a versatile backhoe loader built for tough jobs. It has a strong 4-cylinder diesel engine that puts out 74 horsepower. This 2WD tractor is great for digging, loading, and moving materials on construction sites or farms. The 416E is big and sturdy, measuring about 24 feet long and 7.5 feet wide. It weighs nearly 15,000 pounds, which helps it stay stable during heavy work. The tractor has a comfortable cab with heat and air conditioning to keep the driver safe and comfy. It also has strong brakes and smooth steering to make it easy to control. With its powerful hydraulic system and four-speed transmission, the 416E can handle many tough tasks with ease.
Full specifications
Recorded specifications
General
| Manufacturer | Caterpillar |
|---|---|
| Model | 416E |
| Category | Specialized tractor |
| Type | 4x2 2WD |
| Years built | 2006+ |
| Operating weight | 14,980lb(6,795 kg) |
Engine
| Make | Caterpillar |
|---|---|
| Model | 3054C |
| Power | 74hp(55.18 kW) |
| Cylinders | 4 |
| Displacement | 268ci(4.39 L) |
| Bore | 4.13in(104.9 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Power shuttle |
|---|---|
| Forward gears | 4 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | ROPS canopy or Cab (with heat and A/C) |
Hydraulics
| Type | Closed center load sensing (CCLS) |
|---|
Dimensions
| Length | 284.6in(7,229 mm) |
|---|---|
| Width | 90.9in(2,309 mm) |
| Height | 110.6in(2,809 mm) |
| Operating weight | 14,980lb(6,795 kg) |
Capacities
| Cooling system | 3.8gal(14.38 L) |
|---|
Closest alternatives
416E compared with the nearest models by horsepower
The closest specialized models to the Caterpillar 416E by rated horsepower are the Caterpillar 416D and the Caterpillar 416C. The Caterpillar 416D matches it on rated power and weighs 230 lb more. It entered production in 2000, 6 years before the 416E. The Caterpillar 416C makes 1 hp more and weighs 1,010 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 1996, 10 years before the 416E.
| Spec | Caterpillar 416E | Caterpillar 416D | Caterpillar 416C |
|---|---|---|---|
| Engine power | 74 hp55.2 kW | 74 hp55.2 kW | 75 hp55.9 kW |
| Operating weight | 14,980 lb6,795 kg | 15,212 lb6,900 kg | 13,966 lb6,335 kg |
| Weight per hp | 202 lb/hp123 kg/kW | 206 lb/hp125 kg/kW | 186 lb/hp113 kg/kW |
| Displacement | 268 ci4.39 L | 268 ci4.39 L | 268 ci4.39 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Power shuttle | Power shuttle | - |
| Drive | 2WD | 2WD | 4WD |
| Years built | 2006+ | 2000-2006 | 1996-2001 |
Calculators
Calculators for the 416E
PTO power
About 61 to 67 PTO hp
Estimated from the 74 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 74 hp tractor can run
Maximum size is about a 9 ft rotary cutter or a 7.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
235 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
74 hp is 55.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Caterpillar 416E
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Caterpillar 3054CAmazon
Fits the Caterpillar 3054C 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Caterpillar 3054CAmazon
Fits the Caterpillar 3054C 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Caterpillar 3054CAmazon
Fits the Caterpillar 3054C 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Caterpillar 3054CAmazon
Fits the Caterpillar 3054C 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Caterpillar 416E service and repair manualseManualOnline
Digital manuals. Built from 2006. Check the serial number range on the listing.
- Caterpillar 416E operator's manualAmazon
Printed and reprint manuals. Built from 2006. Check the serial number range on the listing.
- Caterpillar 416E service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
416E vs. Specialized median
Caterpillar 416E compared with other Specialized tractors
| Spec | This model | Specialized median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 74 hp | 62 hp | +19% | 62nd |
| Engine Displacement | 268 ci | 239 ci | +12% | 62nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 4 | at median | 50th |
| Operating Weight | 14,980 lb | 12,600 lb | +19% | 77th |
| Length | 285 in | 274 in | +4% | 88th |
| Width | 90.9 in | 83.9 in | +8% | 82nd |
| Height | 111 in | 108 in | +3% | 73rd |
Medians and percentiles are calculated from the specialized tractors in the database that have a recorded value for each specification (sample size 43–58 models).
Same manufacturer
Other Caterpillar models
Other manufacturers
Models with similar horsepower
Gallery

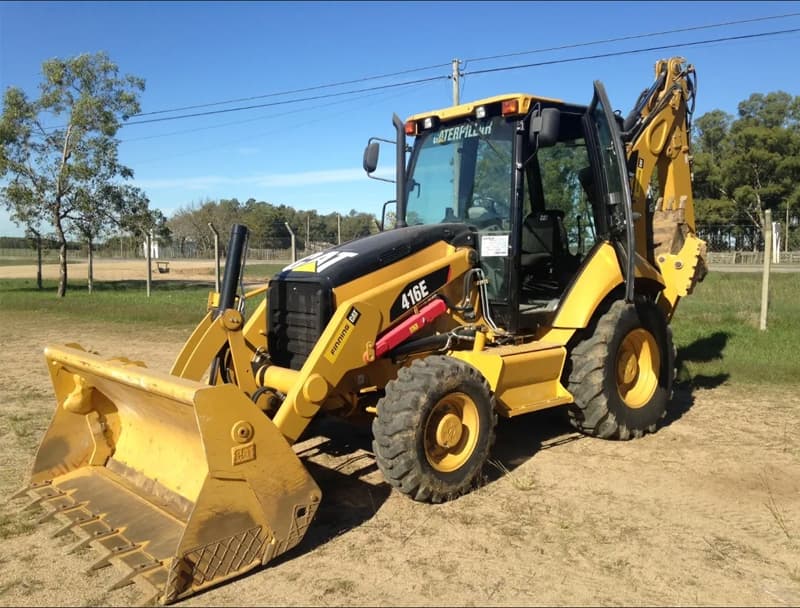

Caterpillar 416E photos




FAQ
Frequently asked questions
When was the Caterpillar 416E in production?
The Caterpillar 416E was introduced in 2006.
How much horsepower does the Caterpillar 416E have?
The Caterpillar 416E produces 74 hp from its 4-cylinder engine. Engine displacement is 268 ci.
How much does the Caterpillar 416E weigh?
The Caterpillar 416E weighs about 14,980 lb in operating condition.
What transmission is in the Caterpillar 416E?
Transmission on the Caterpillar 416E is Power shuttle, with 4 forward speeds.
What hydraulics does the Caterpillar 416E have?
The Caterpillar 416E uses a Closed center load sensing (CCLS) hydraulic system.
What maintenance does the Caterpillar 416E require?
The Caterpillar 416E needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
