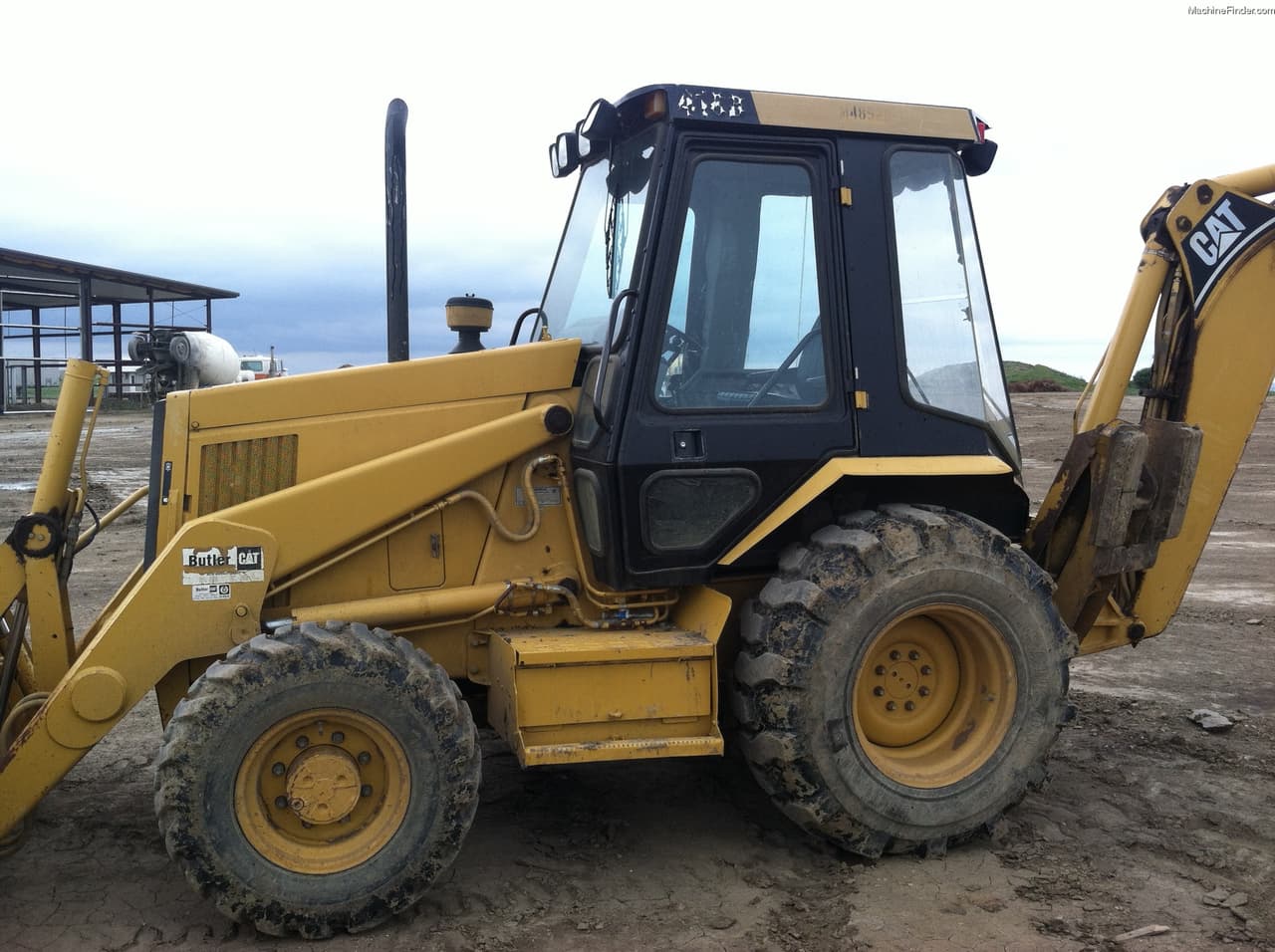

Caterpillar 416B
The Caterpillar 416B is a versatile backhoe loader that was made from 1992 to 1996. It's a 2WD tractor with a 4x2 chassis, perfect for various jobs on the farm or construction site. The tractor has a power shuttle transmission with 4 forward and 4 reverse gears, giving it 8 gears in total. This makes it easy to switch between tasks without stopping. Under the hood, the 416B has a Caterpillar 3054 engine. This engine is liquid-cooled and has 4 cylinders in a line. It runs on diesel fuel and doesn't use a turbocharger. The engine is pretty strong, putting out 76.7 hp at 2200 rpm. The tractor is big, measuring 269.2 inches long, 89.1 inches wide, and 107.1 inches tall. It has agricultural tires in the front and back, with the rear tires being bigger. The 416B also has a ROPS canopy to keep the driver safe and uses wet disc brakes for stopping power.
ManufacturerCaterpillarPower76.7 hpEngine4-cylTransPower Shuttle
Quick specs
- Category
- Specialized
- Engine Power Output
- 77hp
- Transmission
- Power Shuttle
At a glance
How the 416B compares
vs. Specialized medianDistribution
Engine Power (hp)
Across all Specialized tractors
76.7 hp · 72nd
This model
15
Median 62 hp
85
This modelSpecialized tractorsMediann = 55
The 416B ranks at the 72nd percentile for engine power among recorded specialized tractors.
Overview
About the Caterpillar 416B
The Caterpillar 416B is a versatile backhoe loader that was made from 1992 to 1996. It's a 2WD tractor with a 4x2 chassis, perfect for various jobs on the farm or construction site. The tractor has a power shuttle transmission with 4 forward and 4 reverse gears, giving it 8 gears in total. This makes it easy to switch between tasks without stopping. Under the hood, the 416B has a Caterpillar 3054 engine. This engine is liquid-cooled and has 4 cylinders in a line. It runs on diesel fuel and doesn't use a turbocharger. The engine is pretty strong, putting out 76.7 hp at 2200 rpm. The tractor is big, measuring 269.2 inches long, 89.1 inches wide, and 107.1 inches tall. It has agricultural tires in the front and back, with the rear tires being bigger. The 416B also has a ROPS canopy to keep the driver safe and uses wet disc brakes for stopping power.
Full specifications
Every recorded spec
General
| Manufacturer | Caterpillar |
|---|---|
| Model | 416B |
| Category | Specialized tractor |
| Type | 4x2 2WD |
| Years built | 1992–1996 |
Engine
| Make | Caterpillar |
|---|---|
| Model | 3054 |
| Power | 76.7hp |
| Cylinders | 4 |
| Displacement | 243ci |
| Bore | 3.94in |
| Stroke | 5in |
Transmission
| Type | Power Shuttle |
|---|---|
| Forward gears | 4 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | ROPS Canopy |
Hydraulics
| Type | Closed Center |
|---|
Dimensions
| Length | 269.2in |
|---|---|
| Width | 89.1in |
| Height | 107.1in |
Capacities
| Cooling system | 5.55gal |
|---|
Head to head
416B vs. Specialized median
How the Caterpillar 416B compares to other Specialized tractors
| Spec | This model | Specialized median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 76.7 hp | 62 hp | +24% | 72nd |
| Engine Displacement | 243 ci | 239 ci | +2% | 53rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 4 | at median | 50th |
| Length | 269 in | 274 in | -2% | 43rd |
| Width | 89.1 in | 83.9 in | +6% | 78th |
| Height | 107 in | 108 in | 0% | 49th |
Medians and percentiles are computed from the specialized tractors in our database with a recorded value for each spec (sample sizes 43–58 models).
Compare to tractors with similar specs
Commonly compared Caterpillar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Caterpillar 416C | 75 hp | 13,966 lb | 1996–2001 | Compare → |
| Caterpillar 426B | 79 hp | 14,771 lb | 1992–1996 | Compare → |
| Caterpillar 416D | 74 hp | 15,212 lb | 2000–2006 | Compare → |
| Caterpillar 416E | 74 hp | 14,980 lb | 2006+ | Compare → |
| Caterpillar 420D | 88.5 hp | 15,763 lb | 2000–2006 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
Explore
Caterpillar siblings
Explore
Similar-spec models
Gallery
Caterpillar 416B photos
FAQ
Common questions
When was the Caterpillar 416B in production?
Caterpillar 416B production started in 1992 and ended in 1996.
How much horsepower does the Caterpillar 416B have?
The Caterpillar 416B produces 76.7 hp from its 4-cylinder engine. Engine displacement is 243 ci.
What transmission is in the Caterpillar 416B?
Transmission on the Caterpillar 416B is Power Shuttle, with 4 forward speeds.
What type of hydraulic system does the Caterpillar 416B use?
Hydraulics on the Caterpillar 416B are Closed Center.
What maintenance does the Caterpillar 416B require?
Like any tractor, the Caterpillar 416B needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
