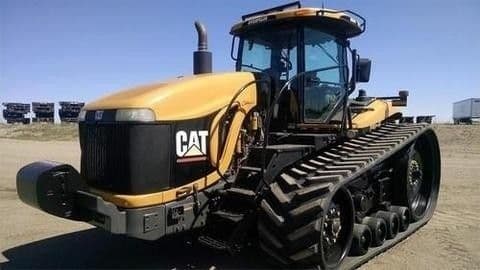

Same brandChallenger 70C
The Challenger 70C is a powerful tractor built for serious farm work. It has a strong Caterpillar engine with 6 cylinders and 285 horsepower. This engine is turbocharged and intercooled, which means it can work hard without getting too hot. The tractor has a full power shift transmission with 10 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. This tractor is big and heavy, weighing 35,685 pounds. It's 232 inches long, 120 inches wide, and 128 inches tall. The 70C has a closed center hydraulic system and a 1000 PTO, which are good for running big farm tools. It also has a comfortable cab for the driver and an electric starter to make it easy to turn on. With its liquid-cooled engine and 60-quart coolant capacity, this tractor can work for long hours without overheating.

Key specifications
- Engine power
- 285hp
- Operating weight
- 35,685 lb
- Transmission
- Full power shift
Overview
About the Challenger 70C
The Challenger 70C is a powerful tractor built for serious farm work. It has a strong Caterpillar engine with 6 cylinders and 285 horsepower. This engine is turbocharged and intercooled, which means it can work hard without getting too hot. The tractor has a full power shift transmission with 10 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. This tractor is big and heavy, weighing 35,685 pounds. It's 232 inches long, 120 inches wide, and 128 inches tall. The 70C has a closed center hydraulic system and a 1000 PTO, which are good for running big farm tools. It also has a comfortable cab for the driver and an electric starter to make it easy to turn on. With its liquid-cooled engine and 60-quart coolant capacity, this tractor can work for long hours without overheating.
Full specifications
Recorded specifications
General
| Manufacturer | Challenger |
|---|---|
| Model | 70C |
| Operating weight | 35,685lb(16,190 kg) |
Engine
| Make | Caterpillar |
|---|---|
| Model | 3306 DITA |
| Power | 285hp(212.5 kW) |
| Cylinders | 6 |
| Displacement | 638ci(10.45 L) |
| Bore | 4.75in(120.6 mm) |
| Stroke | 6in(152.4 mm) |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Cab | Cab |
|---|
Hydraulics
| Type | Closed center |
|---|
Power take-off
| Rear PTO | 1000 |
|---|
Dimensions
| Length | 232in(5,893 mm) |
|---|---|
| Width | 120in(3,048 mm) |
| Height | 128in(3,251 mm) |
| Operating weight | 35,685lb(16,190 kg) |
Capacities
| Cooling system | 15gal(56.78 L) |
|---|
Calculators
Calculators for the 70C
PTO power
About 237 to 257 PTO hp
Estimated from the 285 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 285 hp tractor can run
Maximum size is about a 34 ft rotary cutter or a 29 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
146 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
285 hp is 212.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Challenger 70C
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Caterpillar 3306 DITAAmazon
Fits the Caterpillar 3306 DITA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Caterpillar 3306 DITAAmazon
Fits the Caterpillar 3306 DITA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Caterpillar 3306 DITAAmazon
Fits the Caterpillar 3306 DITA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Caterpillar 3306 DITAAmazon
Fits the Caterpillar 3306 DITA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Challenger 70C service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Challenger 70C operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Challenger 70C service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
70C vs. category median
Same manufacturer
Other Challenger models
Other manufacturers
Models with similar horsepower
Gallery
Challenger 70C photos




FAQ
Frequently asked questions
What is the engine power output of the Challenger 70C?
Rated engine output for the Challenger 70C is 285 hp, delivered by a 6-cylinder engine. The engine displaces 638 ci.
Which transmission does the Challenger 70C use?
The Challenger 70C is equipped with a Full power shift transmission with 10 forward gears.
What hydraulics does the Challenger 70C have?
The Challenger 70C uses a Closed center hydraulic system.
What is the operating weight of the Challenger 70C?
The Challenger 70C has an operating weight of about 35,685 lb.
How do I maintain a Challenger 70C?
Routine service for the Challenger 70C covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
