Utility tractorsSpec sheet
Chamberlain Countryman 354
The Chamberlain Countryman 354 is a utility tractor built for tough farm work. It has a strong 6-cylinder diesel engine made by Perkins. This engine is liquid-cooled and can produce 92 horsepower, which is above average for tractors of its kind. The engine size is also quite large compared to other tractors. This tractor has a 2-wheel drive system and manual steering. It comes with a gear transmission that offers 9 forward speeds and 3 reverse speeds. The Countryman 354 is a big machine, measuring 152 inches long, 96 inches wide, and 75.9 inches tall. It's also heavy, weighing 9,910 pounds, which is more than most similar tractors. The large rear tires (23.1-26) help it handle rough terrain on the farm.
Key specifications
- Category
- Utility
- Engine power
- 92hp
- Operating weight
- 9,910 lb
- Transmission
- Gear
Category comparison
Countryman 354 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
92 hp · 79th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Countryman 354 ranks at the 79th percentile for engine power among recorded utility tractors.
Overview
About the Chamberlain Countryman 354
The Chamberlain Countryman 354 is a utility tractor built for tough farm work. It has a strong 6-cylinder diesel engine made by Perkins. This engine is liquid-cooled and can produce 92 horsepower, which is above average for tractors of its kind. The engine size is also quite large compared to other tractors. This tractor has a 2-wheel drive system and manual steering. It comes with a gear transmission that offers 9 forward speeds and 3 reverse speeds. The Countryman 354 is a big machine, measuring 152 inches long, 96 inches wide, and 75.9 inches tall. It's also heavy, weighing 9,910 pounds, which is more than most similar tractors. The large rear tires (23.1-26) help it handle rough terrain on the farm.
Full specifications
Recorded specifications
General
| Manufacturer | Chamberlain |
|---|---|
| Model | Countryman 354 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 9,910lb(4,495 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 6.354 |
| Power | 92hp(68.6 kW) |
| Cylinders | 6 |
| Displacement | 354ci(5.8 L) |
| Bore | 3.88in(98.42 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 152in(3,861 mm) |
|---|---|
| Width | 96in(2,438 mm) |
| Height | 75.9in(1,928 mm) |
| Operating weight | 9,910lb(4,495 kg) |
Tires
| Front | 8.25-20 |
|---|---|
| Rear | 23.1-26Convert |
Closest alternatives
Countryman 354 compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 4709M and the CaseIH JX100U are closest to the Chamberlain Countryman 354 in rated horsepower. The Massey Ferguson 4709M matches it on rated power and weighs 3,400 lb less, carrying 71 lb per horsepower against 108 lb. The CaseIH JX100U matches it on rated power and weighs 1,840 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the Countryman 354 has the highest weight per horsepower at 108 lb per hp.
| Spec | Chamberlain Countryman 354 | Massey Ferguson 4709M | CaseIH JX100U |
|---|---|---|---|
| Engine power | 92 hp68.6 kW | 92 hp68.6 kW | 92 hp68.6 kW |
| Operating weight | 9,910 lb4,495 kg | 6,506 lb2,951 kg | 8,070 lb3,660 kg |
| Weight per hp | 108 lb/hp66 kg/kW | 71 lb/hp43 kg/kW | 88 lb/hp53 kg/kW |
| Displacement | 354 ci5.8 L | 201 ci3.29 L | 238.5 ci3.91 L |
| Cylinders | 6 | 3 | 4 |
| Transmission | Gear | Mechanical Shuttle | Two-speed power shift |
| Drive | 2WD | - | 2WD |
Calculators
Calculators for the Countryman 354
PTO power
About 76 to 83 PTO hp
Estimated from the 92 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 92 hp tractor can run
Maximum size is about a 11 ft rotary cutter or a 9.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
125 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
92 hp is 68.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 23.1-26 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
Countryman 354 vs. Utility median
Chamberlain Countryman 354 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 92 hp | 55 hp | +67% | 79th |
| Engine Displacement | 354 ci | 183 ci | +93% | 86th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 9,910 lb | 5,303 lb | +87% | 85th |
| Length | 152 in | 137 in | +11% | 68th |
| Width | 96 in | 66 in | +45% | 95th |
| Height | 75.9 in | 94.1 in | -19% | 21st |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Chamberlain models
Other manufacturers
Models with similar horsepower
Gallery

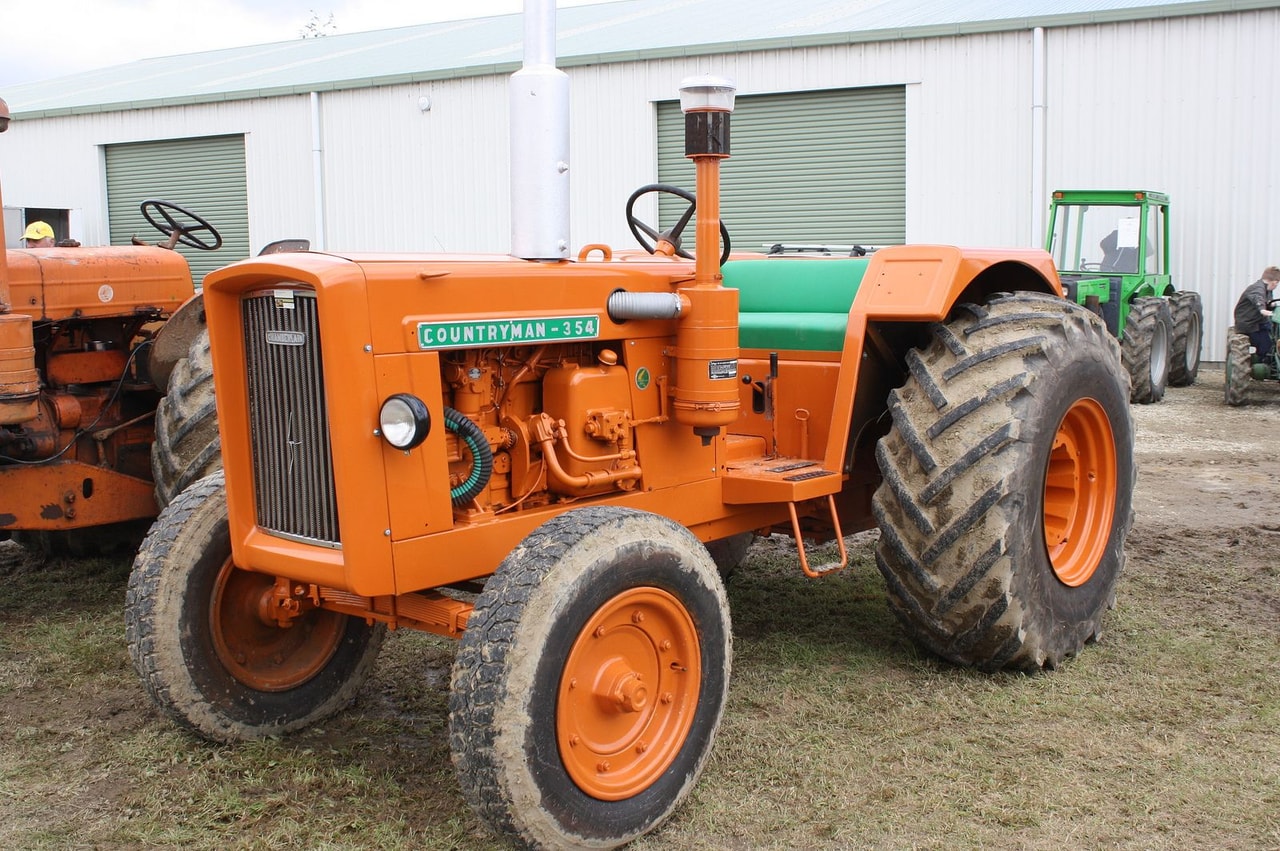

Chamberlain Countryman 354 photos
FAQ
Frequently asked questions
What is the engine power output of the Chamberlain Countryman 354?
Rated engine output for the Chamberlain Countryman 354 is 92 hp, delivered by a 6-cylinder engine. The engine displaces 354 ci.
Which transmission does the Chamberlain Countryman 354 use?
The Chamberlain Countryman 354 is equipped with a Gear transmission with 9 forward gears.
What are the factory tire sizes for the Chamberlain Countryman 354?
The Chamberlain Countryman 354 comes with 8.25-20 front tires and 23.1-26 rear tires.
What is the operating weight of the Chamberlain Countryman 354?
The Chamberlain Countryman 354 has an operating weight of about 9,910 lb.
How do I maintain a Chamberlain Countryman 354?
Routine service for the Chamberlain Countryman 354 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
