Cletrac FG
The Cletrac FG is a powerful agricultural crawler tractor built for tough farm work. It has a strong Hercules HXE engine with 6 cylinders and runs on gasoline. The engine is liquid-cooled, which helps it stay cool during long workdays. This tractor has 3 forward gears and 1 reverse gear, giving farmers good control in different situations. The Cletrac FG is big and heavy, weighing 26,670 pounds. It's 180 inches long, 100 inches wide, and 88 inches tall. The tractor has some nice features like an upholstered seat for comfort and removable steel cleats on its tracks. It can produce up to 104.16 horsepower on a belt drive and 87.85 horsepower at the drawbar. The tractor uses a lot of fuel, about 12 gallons per hour when working hard. It has a large 15-inch pulley that spins at 509 RPM, which is useful for powering other farm equipment.
ManufacturerCletracEngine6-cylTransGear
Quick specs
- Category
- Agricultural
- Operating Weight
- 26,670 lb
- Transmission
- Gear
Overview
About the Cletrac FG
The Cletrac FG is a powerful agricultural crawler tractor built for tough farm work. It has a strong Hercules HXE engine with 6 cylinders and runs on gasoline. The engine is liquid-cooled, which helps it stay cool during long workdays. This tractor has 3 forward gears and 1 reverse gear, giving farmers good control in different situations. The Cletrac FG is big and heavy, weighing 26,670 pounds. It's 180 inches long, 100 inches wide, and 88 inches tall. The tractor has some nice features like an upholstered seat for comfort and removable steel cleats on its tracks. It can produce up to 104.16 horsepower on a belt drive and 87.85 horsepower at the drawbar. The tractor uses a lot of fuel, about 12 gallons per hour when working hard. It has a large 15-inch pulley that spins at 509 RPM, which is useful for powering other farm equipment.
Full specifications
Every recorded spec
General
| Manufacturer | Cletrac |
|---|---|
| Model | FG |
| Category | Agricultural tractor |
| Type | Crawler |
| Operating weight | 26,670lb |
Engine
| Make | Hercules |
|---|---|
| Model | HXE |
| Cylinders | 6 |
| Displacement | 935ci |
| Bore | 5.75in |
| Stroke | 6in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | Crawler |
|---|
Dimensions
| Length | 180in |
|---|---|
| Width | 100in |
| Height | 88in |
| Operating weight | 26,670lb |
Head to head
FG vs. Agricultural median
How the Cletrac FG compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 935 ci | 336 ci | +179% | 98th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 3 | 16 | -81% | 1st |
| Operating Weight | 26,670 lb | 10,914 lb | +144% | 93rd |
| Length | 180 in | 173 in | +4% | 58th |
| Width | 100 in | 79.5 in | +26% | 83rd |
| Height | 88 in | 111 in | -20% | 17th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared Cletrac tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Cletrac 80 | — | — | — | Compare → |
| Cletrac FDE | — | 29,760 lb | — | Compare → |
| Cletrac H 12-20 | — | — | — | Compare → |
| Cletrac R 12-20 | — | — | — | Compare → |
| Cletrac 100 | — | 27,450 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Cletrac siblings
Explore
Similar-spec models
Gallery

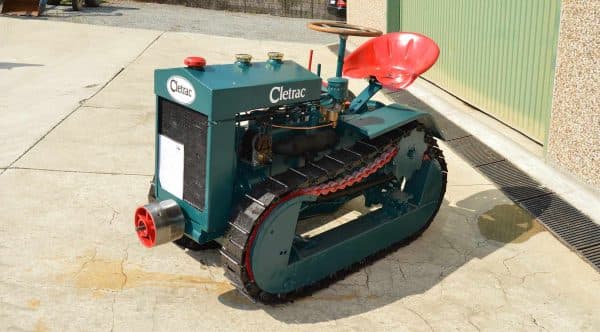

Cletrac FG photos
FAQ
Common questions
What engine configuration does the Cletrac FG use?
The Cletrac FG is equipped with a 6-cylinder engine displacing 935 ci.
What is the operating weight of the Cletrac FG?
In working trim, the Cletrac FG comes in at roughly 26,670 lb.
Which transmission does the Cletrac FG use?
The Cletrac FG is equipped with a Gear transmission with 3 forward gears.
How do I maintain a Cletrac FG?
Routine service for the Cletrac FG covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
